AreaRAE Plus Wireless Gas Detector

There are no reviews yet. | Write a review
Item #: W01B-11
Min Order: 0
Order Qty: Must order in multiples of 1

To receive more information or request a custom quote, please fill out our NEW AreaRAE Questionnaire.

$12,217.00-$14,709.00
Configuration:
Wireless Option:
Update price
View additional buying options
Product Details

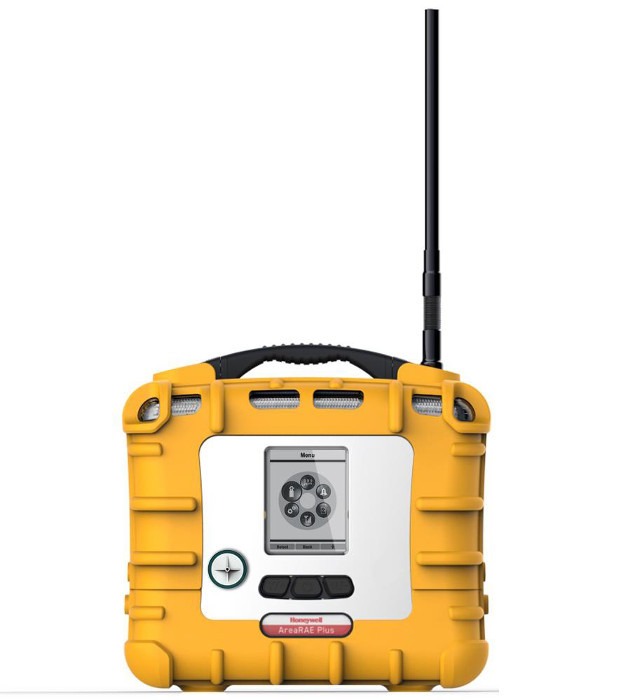

AreaRAE Plus Wireless Gas Detector

Geared towards industrial and first responder applications, the AreaRAE Plus is the most advanced wireless local area monitor on the market. The AreaRAE Plus supports up to 7 seven gas sensors, including a PID lamp with 0.1 ppm sensitivity, and new optional meteorological sensors for a total of up to 12 sensors.

The meter boasts unrivaled wireless capability with the ability to communicate wirelessly via radio, mesh radio, GPS, and Bluetooth Low Energy (BLE). Not only can the AreaRAE Plus communicate directly to a RAELink 3 Host, the meter may also relay data wirelessly from up to 8 RAE wireless instruments.

Key Features:

  • All-in-one gas, radiation, ppb level VOC and meteorological detector
  • Multiple options for monitoring threats from a remote location
  • Optional RAEMet sensor for meteorological measurements and plume modeling
  • Easy to deploy, use and service
  • Up to 4 on-board Wireless modules in same unit
    • Primary radio module (ISM and/ or Wi-Fi)
    • Secondary Mesh radio module
    • Standard GPS
    • BLE*
  • Multiple sensing technologies in one product
    • PID, EC, Combustible, Gamma, Meteorological & GPS
    • More than 25 sensors types to choose
    • Up to 12 sensors in same unit (7 gas sensors)

View Datasheet

AreaRAE Plus Wireless Gas Detector

General Information:

  • DIMENSIONS: 12.36” x 12.04” x 6.53” (with rubber boot)
  • WEIGHT: 13.88 lb (full option configuration), 14.33 lb (w/ RAEMet and full option configuration
  • GAS SENSORS SLOTS: up to 7
  • ADDITIONAL SENSORS: Gamma, RAEMet (Wind Speed, Wind Direction, Temperature & Humidity)
  • GPS: Standard equipment in every unit
  • BATTERY: Rechargeable 7.2 V / 10 Ah Li-ion battery pack with built-in charger
  • OPERATING HOURS: ~16 hours with wireless connectivity on Li-ion battery packSpecification at room temperature (20°C)
  • POWER INPUT: 12VDC>2A
  • DISPLAY: Large 240 x 320 pixel LCD backlit display64 x 85 mm / 2.5” x 3.33”
  • KEYPADS: 3 operation and programming keys
  • ALARMS:
    • Multi-tone 108dB buzzer @ 3.3 ft / 1 m, Bright LED 360 degree view and on-screen indication of alarm conditions
    • Additional diagnostic alarm and display message for low battery
    • Wireless connectivity alarm

Data & Communication:

  • DATA LOGGING: Continuous data logging (90 days for 7 gas sensors, 1 RAEMet (wind speed & direction, temp and RH), and GPS at 1 min intervals, 24/7)
  • DATA STORAGE: 24MB (memory full action: stop when full or wrap around)
  • DATA INTERVAL: User-configurable from 1 to 3,600 sec
  • WIRELESS:
    • Standard Bluetooth Low Energy module (BT4.0) and GPS
    • Primary radio module:
      • Long range ISM License Free 900MHz or 2.4GHz radio
      • IEEE 802.11 b/g Wi-Fi
    • Secondary radio module: Short range IEEE 802.15.4 900MHz or 868MHz Mesh Radio
    • Wireless range:
      • Up to 2 miles (3 km) for ISM 900 MHz;
      • Up to 1.2 miles (2 km) for ISM2.4GHz;
      • Up to 330 ft (100m) for Wi-Fi;
      • Up to 650 ft (200m) for Mesh secondary radio;
      • Up to 15 ft (5m) for BLE.
    • Wireless Approval: FCC Part 15, CE R&TTE, Others4
  • COMMUNICATION:
    • Communicates to ProRAE Studio II via USB cable to PC.
    • Wireless data and alarm status transmission via Wi-Fi or ISM modem.
    • Acts as gateway to connect up to 8 remote instruments (using secondary radio module)

Warranty, Operating Specs, & Certifications:

  • SAFETY CERTIFICATION: Class 1, Division 2 Groups A, B, C, D
  • SAMPLING PUMP: Built-in pump, typical flow rate 450 cc/min
  • TEMPERATURE: -20 °C to +50 °C / (- 4 °F to +122 °F)
  • HUMIDITY: 0% to 95% relative humidity (non-condensing)
  • INGRESS PROTECTION: (IP) IP 65
  • PERFORMANCE TESTS: MIL-STD-810G and 461F, LEL CSA C2.2No. 152, ISA-12.13.01
  • WARRANTY: Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors. Six months for 9.8 eV lamp PID sensor. One year on all other sensors, battery, and other consumable parts.Two years for 10.6eV 7R+ PID lamp

AreaRAE Plus Wireless Gas Detector
