SafeAir Ammonia Detection Badges
Ammonia is most commonly used in agriculture as a fertilizer. It is also used as a precursor in manufacturing specialty products including plastics, explosives, textiles, pesticides, dyes, and other chemicals. In addition, ammonia can also be found in many common household cleaning solutions. Ammonia gas is a respiratory and eye irritant, which may cause burning sensations, coughing, wheezing and headaches, even at low concentrations.

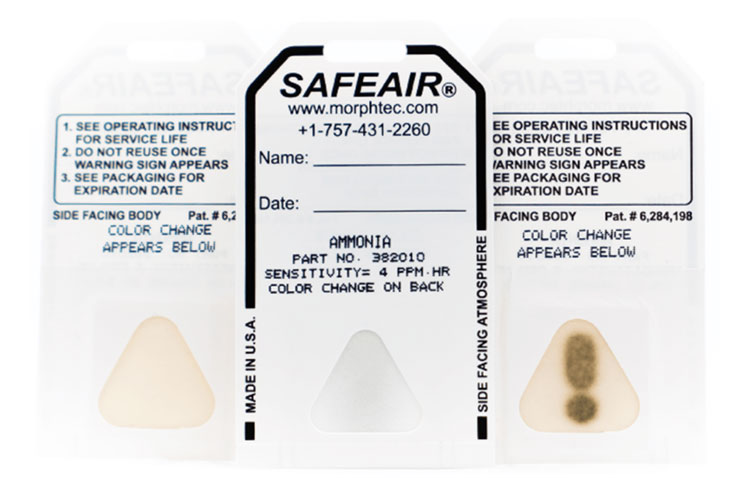

SafeAir Ammonia badges provide an immediate visual indication of exposure to ammonia. When ammonia gas or vapor is present, the exclamation mark in the triangular window on the back side of the badge changes color. The intensity of the color change is proportional to the exposure dose. SafeAir Ammonia badges are a simple, cost-effective solution for ammonia detection in the workplace.
Features:
- Highly sensitive and selective to target chemical
- Easy to use
- Ideal for daily employee screening or leak detection
- Measures TWA exposure
- No calibration or laboratory analysis needed
SafeAir Ammonia Detection Badges
| Physical Specifications |
| Dimensions |
74mm x 41mm x 1mm |
| Weight |
1.5g |
| Color change |
Beige to tan to black* |
| Refrigerated shelf life |
1 year |
* Final color is humidity dependent. Low humidity final color is black, high humidity final color is green/black.
| Sampling Parameters |
| Exposure level |
4.0 ppm • hr |
| Minimum detectable limit (8 hours) |
0.50 ppm |
| Maximum recommended sampling time |
48 hours |
| Minimum recommended sampling time |
15 minutes |
| Relative humidity range |
15% - 90% |
| Face velocity range |
10 – 150 cm/sec |
| Temperature range |
10°C - 40°C (50°F - 104°F) |
| Light effect – UV (direct sunlight) |
not recommended |
| Light effect – visible |
no effect |
| Color stability |
4 weeks |
| Known interferences |
primary aliphatic amines |
SafeAir Ammonia Detection Badges
SafeAir Ammonia Detection Badges Exposure Sample
SafeAir Ammonia Detection Badges
