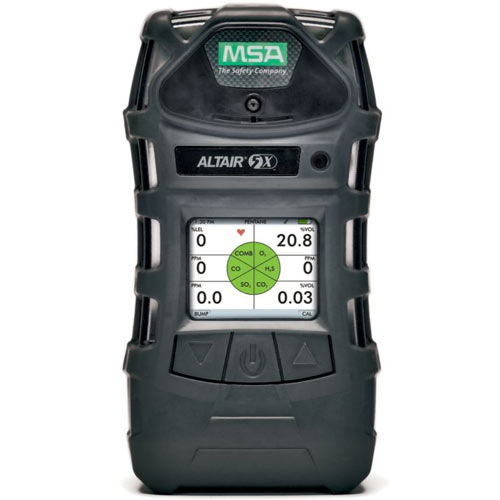

ALTAIR 5X Multigas Detector
The rugged, multi-featured ALTAIR 5X Multigas Detector boasts several
options that provide maximum safety and make it easy to use in even the
most demanding situations. It features large buttons for easy use, and
its polycarbonate housing protects the detector for drops of up to 10
feet (3m).
The detector also boasts the exclusive MotionAlert, which
lets others know if the user has become immobile, and InstantAlert, a
manual alarm that alerts others if a dangerous situation has arisen. The
glow-in-the-dark housing makes it easy to see in a confined space,
while the large buttons and bright display makes operation possible even
when the user is wearing gloves.
Features:
- Rugged detector tests levels of LEL, oxygen, carbon monoxide, hydrogen sulfide and sulfur dioxide
- Rapid bump test gives results in under 15 seconds
- Versatile MSA Link allows user to transmit data to a computer
- MotionAlert option tells others that user has become immobile
- Instant Alert provides manual alarm to alert others of a dangerous situation
- Large buttons and bright display provide easy operation, even when user is wearing gloves
- Durable XCell sensors last longer than 3 years
- Strong glow-in-the-dark housing protects detector for drops of up to 10 feet
- Exclusive end-of-sensor warning cautions user when unit's sensor needs to be changed
- Polycarbonate housing is both dust-tight and watertight
Applications:
- Combustible Detection
- Toxic Detection
- Oxygen Detection
- Confined Space
ALTAIR 5X Multigas Detector
| Technical Specifications |
| Drop test |
10 feet |
| Housing |
Rugged rubberized armor |
| Weight |
1 lb (without IR sensor) |
| Dimensions (L x W x D) |
6.69" H x 3.49" W x 1.79" Dwithout belt clip(without IR sensor) |
| Audible alarm |
>95 dB typical |
| Visual alarm |
2 ultra-briqht LEDs on top |
| Vibrating Alarm |
Standard |
| Motion Alert and Instant Alert |
Standard |
| Features display |
High-contrast monochrome or color display |
| Backlight |
Adjustable time-out |
| Battery |
Rechargeable li-ion or AA alkaline |
| Runtime |
20 hrs @ room temperature |
| Charging time |
<= 6 hours |
| Operating temperature |
-20 C to + 5O C |
| Short-period operation |
-40ºC to 8 + 85ºC |
| Humidity |
15-90% RH non-condensing |
| Ingress protection |
IP6S |
| Data log |
Adjustable 200 hrs minimum |
| Event log |
Standard 1000 events |
| Standard warranty |
3 years on CO, H2S, LEL,02, S02, and IR sensors
2 years on NH3, Cl2 sensors 1 year on other sensors |
| Sensor Specifications |
| Gas type |
Range |
Resolution |
| Combustible |
0-100% |
LEL 1% LEL |
| Oxygen |
0-30%Vol |
O.l%Vol |
| Carbon monoxide |
0-2000 ppm |
1 ppm |
| Hydrogen sulfide |
0-200 ppm |
1 ppm |
| Sulfur dioxide |
0-20 ppm |
0.1 ppm |
| Chlorine |
0·20 ppm |
0.1 ppm |
| Ammonia |
0-100 ppm |
1 ppm |
| Nitrogen dioxide |
0-20 ppm |
0.5 ppm |
| Chlorine dioxide |
0-1 ppm |
0.01 ppm |
| Phosphine |
0-5 ppm |
0.1 ppm |
| Hydrogen cyanide |
0-30 ppm |
0.lppm |
| Carbon dioxide, CO2 |
0-10%Vol |
0.0l%Vol |
| Butane, C4H1 0 |
0-25%Vol |
0.l%Vol |
| Methane, CH4 |
0-100%Vol |
l%Vol |
| Propane, C3H8 |
0-100%Vol |
l%Vol |
| Certifications |
| USA |
- USA / UL
- Class I, Division 1, Groups A, B, C & D Class II, Division 1, Groups E, F & G Class III, Division 1
- Ambient temperature: -40 C to +50 C; T4
- ALTAIR 5X Multigas Detector with alkaline battery pack T3/T4 ALTAIR 5X or ALTAIR 5X iR Multigas Detector with rechargeable battery pack T4
- Mining: MSHA 30 CFR Part 22 PADEP
|
ALTAIR 5X Multigas Detector
Basic Configuration Includes:
- Monochrome display
- Integral pump
- Datalogging
- Rechargeable Li-ion battery pack
- Charger
- Calibration cap
- CD Manual
Kit Adds:
- Monochrome or color display option
- 10-ft sampling line
- 1-ft pump probe
ALTAIR 5X Multigas Detector
