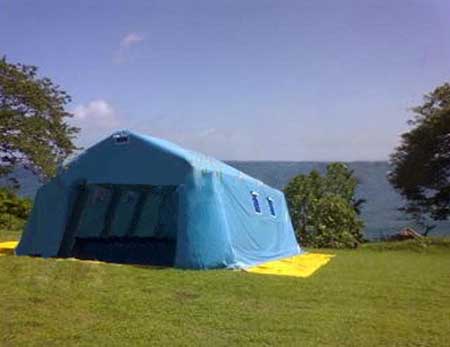

FSI DAT Series Pneumatic Shelter 25' W x 26' L x 12.5' H

There are no reviews yet. | Write a review
Item #: DAT6500
MFG: FSI
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$41,355.00
Qty:
View additional buying options
Product Details

FSI DAT Series Pneumatic Shelter 25' W x 26' L x 12.5' H

All DAT series shelters are supplied fully equipped and ready to be placed in service. Simply roll out, inflate, tie/stake down, and commence operations

Every shelter with a width of over 11 ft - regardless of length and overall size offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 - 24" off center. All HVAC ducts are approx. 30” L X 19” diameter. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above entry and exit doors. Units can attach to a second FSI shelter or shower. Simply inflate the unit and commence use in approx. 1 - 4 minutes.

Possible Shelter Uses:

  • Command
  • Field hospital
  • Medical surge capacity
  • Temporary housing
  • Portable morgue
  • Athletic
  • Training/cool down
  • Isolation
  • Crime scene privacy shelter
  • Anteroom

Shelter includes:

  • Triple top cross berm design for maximum strength and load bearing capability
  • (6) windows – three on each side
  • (3) Skylights
  • (8) HVAC/Clothes inlet/outlets w/ tie closures - two each per end/side
  • Full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors
  • Air inflation valve
  • Air inflation hose w/ safety cord
  • Pressure relief valve
  • Metal stakes
  • (4) Tie down ropes
  • (4) D-rings
  • Repair kit
  • Manual
  • Carrying bag
  • (2) Upper air vents
  • Hammer
  • Electric inflator/deflator
  • High pressure compressed air fill hose
  • Universal high pressure SCBA fitting

FSI DAT Series Pneumatic Shelter 25' W x 26' L x 12.5' H

DAT6500
Measurements: Approx. 25’ W X 26’ L X 12.5’ H - 650ft2
Weight: 590 lbs.
Air pressure internally once inflated: 4.3 psi
Total Weight: 1055 g/m2
Thickness: 0.90 mm
Cut strip tensile strength: Warp = 450 lbs/in
Weft = 404 lbs/in
Elongation: Warp = 30%
Weft = 47%
Tongue tear: Warp = 87 lbs
Weft = 100 lbs
Adhesion: Warp = 9.4 lbs/in
Weft = 8.9 lbs/in
Density:30 X 24.5
Certifications: ANSI 113 compliant
Frame
Material: - Heavy Duty 1100 Dtex polyester coated w/ plastomer on both sides
- UV/Chemical resistant
Cover
Material: - Heavy Duty 420 Denier nylon (or polyester) coated w/ polyurethane (PVC) on both sides.
- UV/Chemical Resistant/Fire Retardant.
Floor
Material:PVC coated 0.52mm Polyester
