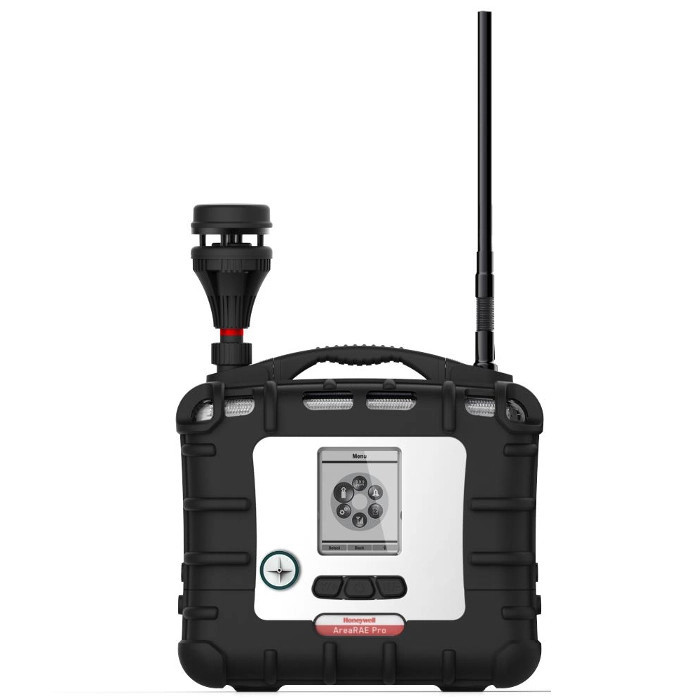

AreaRAE Pro Wireless Gas Detector

There are no reviews yet. | Write a review
Item #: W01A-11
Min Order: 0
Order Qty: Must order in multiples of 1

To receive more information or request a custom quote, please fill out our NEW AreaRAE Questionnaire.

Wireless Option:
Update price
View additional buying options
Product Details

AreaRAE Pro Wireless Gas Detector

The AreaRAE Pro is the ultimate local area gas monitor and is optimized for fire, hazmat, CST, and military applications. The AreaRAE Pro supports up to 7 seven gas sensors, including a PID lamp with 10 ppb sensitivity and optional Gamma capability. The new RAEMet sensor included with the AreaRAE Pro makes it easy to input weather information in to plume modeling software.

The AreaRAE Pro boasts unrivaled wireless capability with the ability to communicate wirelessly via radio, mesh radio, GPS, and Bluetooth Low Energy (BLE). The meter can communicate directly to a RAELink 3 Host as well as relay data wirelessly from up to 8 RAE wireless instruments.

Key Features:

  • All-in-one gas, radiation, ppb level VOC and meteorological detector
  • Multiple options for monitoring threats from a remote location
  • RAEMet sensor for meteorological measurements and plume modeling
  • Easy to deploy, use and service
  • Up to 4 on-board Wireless modules in same unit
    • Primary radio module (ISM and/ or Wi-Fi)
    • Secondary Mesh radio module
    • Standard GPS
    • BLE*
  • Multiple sensing technologies in one product
    • PID, EC, Combustible, Gamma, Meteorological & GPS
    • More than 25 sensors types to choose
    • Up to 12 sensors in same unit (7 gas sensors)

View Datasheet

AreaRAE Pro Wireless Gas Detector

General Information:

  • DIMENSIONS: 12.36” x 12.04” x 6.53” (with rubber boot)
  • WEIGHT: 13.88 lb (full option configuration), 14.33 lb (w/ RAEMet and full option configuration
  • GAS SENSORS SLOTS: up to 7
  • ADDITIONAL SENSORS: Gamma, RAEMet (Wind Speed, Wind Direction, Temperature & Humidity)
  • GPS: Standard equipment in every unit
  • BATTERY: Rechargeable 7.2 V / 10 Ah Li-ion battery pack with built-in charger
  • OPERATING HOURS: ~16 hours with wireless connectivity on Li-ion battery packSpecification at room temperature (20°C)
  • POWER INPUT: AC adapter with Input 110-240 V AC
  • DISPLAY: Large 240 x 320 pixel LCD backlit display64 x 85 mm / 2.5” x 3.33”
  • KEYPADS: 3 operation and programming keys
    • Multi-tone 108dB buzzer @ 3.3 ft / 1 m, Bright LED 360 degree view and on-screen indication of alarm conditions
    • Additional diagnostic alarm and display message for low battery
    • Wireless connectivity alarm

Data & Communication:

  • DATA LOGGING: Continuous data logging (90 days for 7 gas sensors, 1 Gammasensor, 1 RAEMet (wind speed & direction, temp and RH), and GPS at 1 min intervals, 24/7)
  • DATA STORAGE: 24MB (memory full action: stop when full or wrap around)
  • DATA INTERVAL: User-configurable from 1 to 3,600 sec
    • Bluetooth Low Energy module (BT4.0) and GPS
    • Primary radio module:
      • Long range ISM License Free 900MHz or 2.4GHz radio
      • IEEE 802.11 b/g Wi-Fi
    • Secondary radio module: Short Range IEEE 802.15.4 900MHz or 868MHz Mesh Radio
    • Wireless range:
      • Up to 2 miles (3 km) for ISM 900 MHz;
      • Up to 1.2 miles (2 km) for ISM2.4GHz;
      • Up to 330 ft (100m) for Wi-Fi;
      • Up to 650 ft (200m) for Mesh secondary radio;
      • Up to 15 ft (5m) for BLE.
    • Wireless Approval: FCC Part 15, CE R&TTE, Others4
    • Communicates to ProRAE Studio II via USB cable to PC.
    • Wireless data and alarm status transmission via Wi-Fi or ISM modem.
    • Acts as gateway to connect up to 8 remote instruments (using secondary radio module)

Warranty, Operating Specs, & Certifications:

  • SAFETY CERTIFICATION: Class 1, Division 2 Groups A, B, C, D
  • SAMPLING PUMP: Built-in pump, typical flow rate 450 cc/min
  • TEMPERATURE: -20 °C to +50 °C / (- 4 °F to +122 °F)
  • HUMIDITY: 0% to 95% relative humidity (non-condensing)
  • PERFORMANCE TESTS: MIL-STD-810G and 461F, LEL CSA C2.2No. 152, ISA-12.13.01
  • WARRANTY: Two years on non-consumable and catalytic LEL, CO, H2S and O2sensors. Six months for 9.8 eV lamp PID sensor.One year on all other sensors, battery, and other consumable parts.Two years for 10.6eV 7R+ PID lamp
