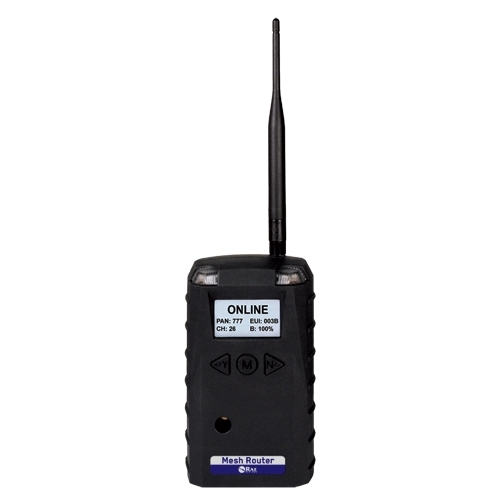

Mesh Router, 915 MHz for EchoView Host and MeshGuard

There are no reviews yet. | Write a review
Item #: F04-B211-100
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$1,485.00
View additional buying options
Product Details

Mesh Router, 915 MHz for EchoView Host and MeshGuard

The Mesh Router is a dedicated router for relaying the wireless signals in a Mesh network. The Mesh Router enables a greater flexible, robust wireless network that provides reliable, low-cost operation.

Up to three MeshRouters can be combined to extend the communication range of a MeshGuard system or between gas meters and an Echoview Host mini-controller. It also works in a ProRAE Guardian network with a PC, and it supports point-to-point and point-to-multi-point networks.

Key Features:

  • Operates for more than 10 days on internal battery or up to 45 days continuous using external PowerPak battery box
  • IEEE 802.15.4 Mesh network functionality with 64-bit encryption
  • Mesh network with auto network forming and configuration
  • Operating distance: up to 300 m, line of sight
  • Very low-cost installation − no hardwiring involved
  • Large area coverage with multi-hop mesh network
  • Field-replaceable battery
  • Loud audio alarm, 90dB @ 30cm (12″)
  • Easy-to-read continuous display of signal strength
  • Bright red flashing alarm
  • Highly resistant to RFI interference
  • IP-65 rated for outdoor use in harsh environments

        Mesh Router, 915 MHz for EchoView Host and MeshGuard

        RF Certifications FCC Part15
        R&TTE Directive 1995/5/EC
        Display Customized LCD (1 x 1.5″) with backlight
        Audible alarm 90dB @ 30cm
        Visual alarm m 2 super-bright red LEDs
        Calibration None necessary
        RF IEEE 802.15.4/Zigbee with mesh stack
        EM Immunity No effect when exposed to 0.43mW/cm2 RF interference (5-watt transmitter at 12")
        Operating Range Minimum of 300 meters, line of sight
        Receiver Sensitivity Minimum -95dBm
        User Interface Three keys (Y/+, MODE, N/-)
        Power Supply D-size Lithium primary battery, +3.6V
        Max Current Consumption 300mA at 3.6V during transmission
        <30mA at 3.6V during standby
        Operation Time Internal Battery: >10 days
        External Battery: >45 days
        Operating Temperature -40° to +50° C (-40° to 122° F)
        Humidity 0% to 95% relative humidity, non-condensing
        Dimensions 26.5cm x 9.5cm x 5.5cm (10.5″ L x 3.7″ W x 2.1″ H)
        Weight 0.6 kg (1.3 lbs)
        Package IP-65
        Mounting Optional stainless-steel bracket mount or magnetic mount; wall mount for external battery
