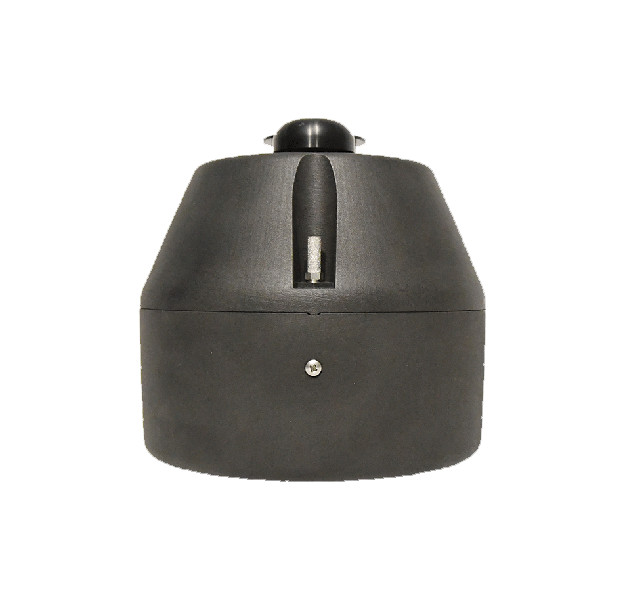

MUVE B330 Biological Detector and Collector
The MUVE B330 is a Continuous Biological Detector and Collector
purpose-designed for unmanned aerial systems (UAS) to provide realtime continuous monitoring of biological threats while on the move. The B330 leverages the legacy design and performance of the IBAC
product line in a SWaP-optimized configuration. The SkyRanger R70
and R80 SkyRaider serve as the platforms for the initial deployment
of the MUVE B330 payload.
The payload is designed to be intuitive,
easy to use, and require minimal maintenance. Sensor display is
provided via the Mission Control Station (MCS) piloting interface.
Alarming conditions and collector status will be displayed to the Pilot
to not only alert them to a threat, but also provide positive confirmation
that a sample is being collected. The MUVE B330 provides next level
protection to combat forces by identifying biological threats remotely
and down range.
Features:
- Continuous air sampling
- Locate source of threat and track progression
- Cover difficult terrain from the air
- Alarm will initiate upon detection of
hazardous conditions
- Automated sample collection upon
alarm indication
- Mission Control Station (MCS)
application provides plug-and-play
operation of the MUVE B330 payload
- Visually display threats on the map
within MCS using easy to understand
pin drops
- Analyze, log, and access complex data
in an easy-to-understand visual overlay
MUVE B330 Biological Detector and Collector
General |
| Technology |
UV Laser Induced Fluorescence (LIF) |
| Communication |
Ethernet |
Physical Features |
| Dimensions (L x W x H) |
7.6 x 7.6 x 8.5 in (19.3 x 19.3 x 21.6 cm) |
| Weight |
3.17 lbs (1.44 kg) |
| Enclosure |
Windform® SP (Composite polyamide based, carbon filled) |
Sampling & Analysis |
| Sample Introduction |
Airborne particles; triggered aerosol sample collector |
| Sample Phase |
Aerosol; flow rate 4.0 L/min (0.14 ft3/min) |
| Threats |
Spores, vegetative bacteria, viruses, and toxins; particle size:
0.7 – 10 microns
|
| Sensitivity |
<100 particles/L of air |
| Sampling & Analysis |
Continuous sampling when in operation |
| Sample Collection |
Integrated sample collection |
System Interface |
| Display & Alerts |
Mission Control Station (MCS) |
| Outputs |
Alarm Status, Diagnostics Status, Collector Status |
| Data Storage |
16 GB internal storage |
| Training Requirements |
<8 hrs |
Power |
| Input Voltage |
16-36 VDC |
| Power Consumption |
10W (normal operation), 12W (collector running) |
| Cold Start Time |
<5 mins |
Environmental |
| Operating Temp (ambient) |
-26 to 120 °F (-32 to 49 °C) |
| Operating Humidity |
5% to 99%, non-condensing |
| Storage Temp |
-38 to 126 °F (-39 to 52 °C) |
Integrated Sample Collector Specifications |
| Sampling Method |
Dry collection |
| Power Consumption |
2 watts |
| Max Flow Rate |
30 L/min |
| Particle Size |
1 to 10 microns |
| Collection Media |
Sample Disk |
| Sample Recovery |
Sample extraction from sample disk in vial with liquid buffer |
