Radiant Reader for MeshGuard

There are no reviews yet. | Write a review
Item #: W021-0020-000
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$2,363.00
Qty:
View additional buying options
Product Details

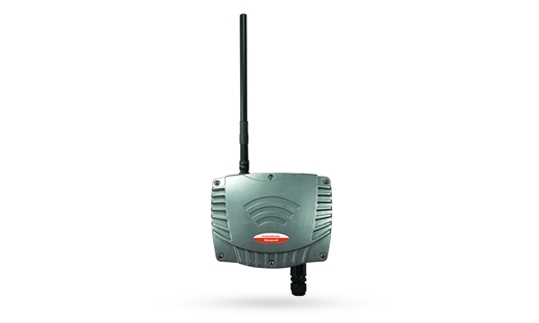

Radiant Reader for MeshGuard

The RadiantReader acts as a hub to connect wireless gas monitors to a PC running ProRAE Guardian for real-time data insight and management. RadiantReader can communicate with up to 100 remote monitors directly.

ProRAE Guardian supports up to five RadiantReaders to give a total capacity of 500 monitors. The RadiantReader can connect directly with a PC via its COM port, or one or more RadiantReaders can be networked through a TCP/IP connection via Ethernet to push sensor data to ProRAE Guardian or third party control system through MODBUS TCP/IP. A networked setup allows visibility of 500 monitors on other PCs running ProRAE Guardian.

Features & Benefits:

  • The RadiantReader receives data wirelessly from remote monitors and pushes data to ProRAE Guardian software running on a PC
  • The RadiantReader can push data directly to a PC via RS-232 or to a remote PC via Ethernet by proprietary protocol or MODBUS
  • The RadiantReader is designed to be located in, indoor or outdoor locations
  • An optional outdoor antenna with a 30'(10 meters) cable can be use to extend its use to outdoor locations when indoor mounting is desired
  • Supports up to 100 monitors

Radiant Reader for MeshGuard

Specifications
Size 21.9 x 21.5 x 8.6 cm without antenna
Weight 2.8kg
Operating Range 300 m, line of sight
Maximum Monitors Supported Up to 100
Digital Interfaces RS-232; RS485; Ethernet RJ45 (802.3)
Power 12-28VDC 25W or PoE 25W@48V
Backup Battery 7.2V 10Ah
Operating Temperature -20° C to +50° C
Storing Temperature -40° C to +60° C
Humidity 10% to 95% non-condensing (continuous)
Environmental Ratings (IP Ratings) IP-65
Radio Type RM900A
Wireless Frequency & Approvals ISM license-free band 802.15.4 Sub1Ghz
FCC Part 15, CE R&TTE. Contact Honeywell for approvals in other countries
RF Output Power Up to 20dBm
RF Receive Sensitivity -105dBm
RADIO TYPE RM2400
Wireless Frequency & Approvals ISM license-free band ISM 802.15.4 2.4Ghz
FCC Part 15, CE R&TTE. Contact Honeywell for approvals in other countries
RF Output Power Up to 20dBm
RF Receive Sensitivity -104dBm
