SoundPro Sound Level Meter Outdoor Measuring System

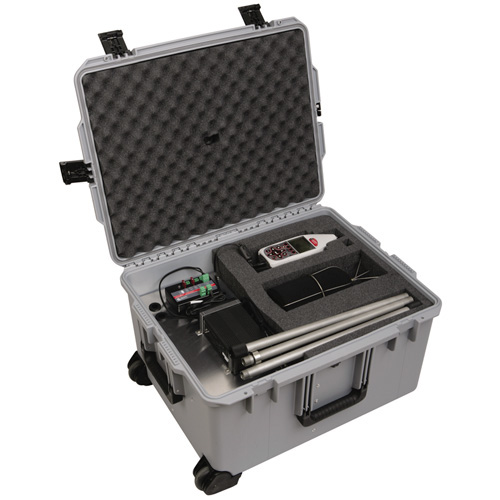

The SoundPro Outdoor Measuring System helps protect the instrument from exposure to wind, rain, snow, chemicals, particulates, animals, vandalism and theft. It is also used for extended battery life with up to one week of continuous monitoring (two weeks with optional second battery). The weatherproof case holds the meter and battery pack with room for accessories and storage of the system components while not in use.
Exposed components are made of stainless steel, ABS and engineered polymers. The OMS kit contains all necessary masts, windscreens, cables, battery packs and adapters required for use with the SoundPro SE and DL instruments. Provisions in the case design allow customer-supplied padlocks and cables to be used to lock the case and secure it to a stationary object.
Includes:
- Necessary Masts
- Windscreen
- Cables
- (1) Rechargeable Battery Pack
- Adapters
- Water Resistant Storage Case
Note: Does not include SoundPro series meter.
SoundPro Sound Level Meter Outdoor Measuring System
| Windscreen Attenuation |
0.5 dB @ 2 kHz, 1 dB @ 6 kHz, 1.4 dB @ 10 kHz, 2 dB @ 20 kHz |
| Battery Type |
(1) 12 Volt, 42 Amp-Hour Battery |
| Battery Runtime |
Total Capacity: 34 Amp-Hours of 12 Volt Power
- Approximately 5.5 days, with nominal 3400 mAH load and de-rated to 80% depth of discharge
- When other additional accessories are used, reduce runtimes are calculated from the 80% de-rated 34 Amp-Hour Capacity
- With the optional second battery installed, runtime will increase up to 7 days
|
| Operating Temperature |
0°C to 50°C (32°F to 122°F)
- Excessively hot and extreme sun exposure may lead to over-heating. Use additional sun shields to reduce running temperature, if necessary.
- Repeated or extended time in extreme environments will lead to premature battery failure.
|
| In Transit Dimensions |
64 cm x 51 cm x 38 cm (25 in. x 20 in. x 15 in.) |
| Ready to Use Dimensions |
64 cm x 51 cm x 200 cm (25 in. 20 in. 78 in.) |
| Overall Weight |
30 kg; 67 lbs (with one battery)
45 kg; 100 lbs (with two batteries |
SoundPro Sound Level Meter Outdoor Measuring System
Features and Benefits:
- ANSI and IEC standards compliant
- Available in Class/Type 1 Precisions or Class/Type 2 General Purpose models
- Two "virtual" sound level meters running simultaneously
- Concurrent A-weighted and C-weighted measurements
- Programmable and level-triggered start and stop
- A, C and Z (flat) frequency weighting
- Fast, slow, and IEC impulse time response
- Selectable thresholds 10 dB - 140 dB
- 3, 4, 5, 6, dB exchange rates
- Luminescent keypad and backlit display
- SD memory card slot
- USB communications port and serial RS-232 output
- Display adjustable among multiple languages
- Time history data logging with 1 second to 60 minute intervals
- Back erase function
- Noise dose calculation/dosimetry function
Applications
- Occupational noise evaluations
- Environmental noise assessments
- Noise ordinance enforcement and legal metrology
- General sound and frequency analysis
- Vehicle noise evaluations
- Building acoustics
- Mobile equipment evaluations
