SPM Flex Chemcassette Portable or Fixed Tape-Based Gas Detector

There are no reviews yet. | Write a review
Item #: SPMF
MFG: Honeywell
Min Order: 0
Order Qty: Must order in multiples of 1
$8,427.00
Version:
Update price
View additional buying options
Product Details

SPM Flex Chemcassette Portable or Fixed Tape-Based Gas Detector

SPM Flex Gas Detector from Honeywell Analytics offers unmatched accuracy, intuitive operation and flexible integration, even in challenging environments. The portable, single point Chemcassette tape-based monitor detects ultrasensitive gases like hydrides, mineral acids, oxidizers, and amines. The field-swappable Chemcassettes use advanced tape technology to show the presence of a target gas quickly and definitively with a physical record.

The SPM Flex gas detector is an extractive gas monitoring system that draws gas samples locally or from a remote point to a Chemcassette® tape-based optical gas detection system. A wide range of toxic gas Chemcassette cartridges are available that enable detection of gases used or generated in semiconductor manufacturing and industrial environments.

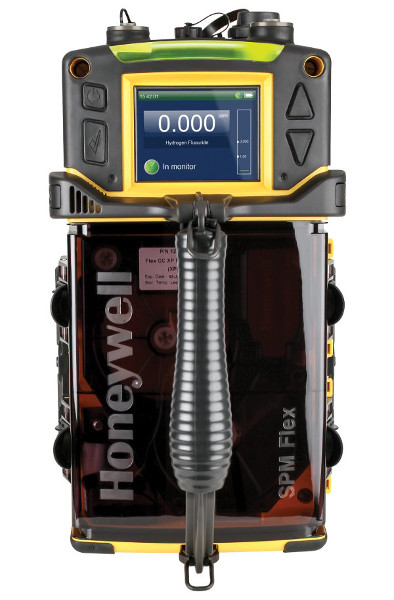

Available in wall mounted and portable versions, the SPM Flex locally displays gas concentration, alarm, fault and status information via its backlit color LCD and LEDs. A simple to use 4-button keypad adjacent to the display provides the ability to set-up, review, operate and make changes to the detector’s configuration. The intuitive display and menu structure are designed to require minimal training. The SPM Flex has a local audio alarm with userconfigurable output levels. The detector can be used both indoors and outdoors in a wide range of weather conditions.

The SPM Flex has flexible power and communications capabilities. These include 3 on-board relays, 4-20 mA analog output and Modbus/TCP outputs for signal and service connectivity. The gas detector is equipped with a USB port for configuration-sharing firmware updates and data downloads. For web-enabled devices, web pages are available via the Ethernet port.

Features & Benefits:
  • Rugged and reliable
  • Visible at a distance with crisp, colorful LED bar on top of unit with flip screen
  • Remote viewing through the web
  • Stands up to harsh conditions
  • Duty cycle to reduce Chemcassette usage
  • Over 25 Chemcassette gas options.

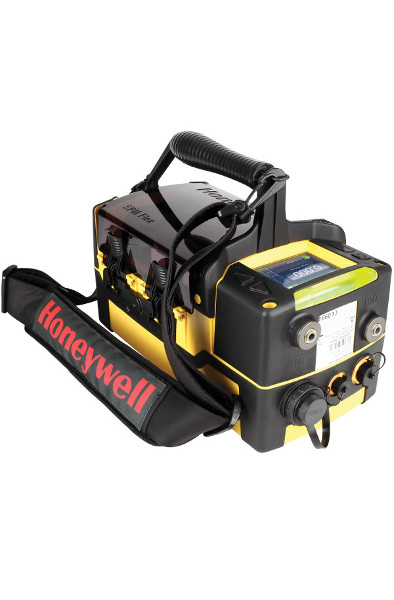

Portable Units (SPMF-F1US) include: Handle assembly, clean-room suitable shoulder strap, Battery, Power supply, Regional Power cord, CD and Quick Start Guide.

Fixed Units (SPMF-P1US) include: Standard Wall Mounting Bracket, Battery, PowerSupply, Regional Power cord, CD and Quick Start Guide.

SPM Flex Chemcassette Portable or Fixed Tape-Based Gas Detector

Detection Technique Chemcassette tape-based with advanced self monitoring optics design and K-factor multiplier options. Duty cycle options to save paper./td>
Dimensions 13.2" x 7.2" x 6.4"
Weight 9.1 pounds
Mounting Screws Concrete: 5/16" x 2" vibration resistant stud anchor for concrete, add .25" to length when mounting bracket with sun shield
Wood: 5/16" x 2" flange head lag screw for wood, add .25" to length when mounting bracket with sun shield
Local Alarms/Status Visual: LEDs for alarm, normal condition and fault
Audible: User selectable: Off, Low - 75 dB at 1M, Medium - 85 dB at 1 M, High > 90 dB at 1M
Interface 4 large buttons, 3.5 in. Color LCD TFT display, web server. Flip screen
Data Logging Rolling up to 3 months (15 second with no gas reading, 1 second when reading gas), event history (1,500 events - aprox. 1 year)
Maximum Inlet/Outlet Pressure Differential The overall maximum load on the pump between the inlet and the exhaust should not exceed 10” WC (24.8 mbars or 2488 Pascales).
Relays 250 V, 6a maximum
USB 2.0 or later
Indoor/Outdoor Use Both, power supply is indoor only
Operating Temperature 32°F to 104°F (0°C to 40°C) for most gases/applications
Operating Humidity 0-100% RH for unit (Sample RH limited per tape/calibration). Sample line requires additional hardware to remove moisture in high RH conditions where condensing may occur. The sample must be non-condensing. Dry conditions may require humidification
Operating Altitudes -1,000 to 3,000 feet above sea level: standard; 3,000 feet to 6,000 feet above sea level, requires adjustment by Honeywell
Ingress Protection IP-65
External Switch / Circuit Breaker Requirement Meet or exceed all local codes and regulations
Ventilation Requirements Mount with no obstructions within 4 in. (10 cm) of either side or within 2 in. (5 cm) above and below the detector
Local Alarms/Status Visual: LEDs for alarm, normal condition, fault and external power. Audible: User selectable: Off, Low ~75 dB at 1 m, Medium ~85 dB at 1 m, High >90 dB at 1.
Battery Type Lithium ion
Battery Life 6+ hours under typical conditions – acts as battery back-up in fixed applications. Approximately 70% of its original capacity after 300 full charge/discharge cycles.
Power Supply Universal line powered (90-260 VAC 50/60 Hz) for battery charger & non-classified use. Battery: 6+ hours under typical conditions - acts as battery back up in fixed applications
Power Consumption About 1.9 at 2.4 VDC (including battery charging current)
Wire Gauges Minimum: 24; Maximum: 14
Communications Relays: Alarm 1, Alarm 2, Fault (user configurable for normally open/closed) 4-20 mA
Ethernet with Modbus TCP/IP and web server
USB port for memory stick configuration/data transfer
Communications connector and optional communications cable: 60 V, 5 A maximum
Certifications UL: 61010-1, 3rd edition, 2012-05
CAN/CSA: C22.2 No 61010-1, 3rd edition, 2012-05
IEC: 61010-1: 2010, 3rd edition
FCC approval for RFID board + Canadian & European
