MiniRAE Lite PID Gas Detector

There are no reviews yet. | Write a review
Item #: 059-A110
Min Order: 0
Order Qty: Must order in multiples of 1
Update price
View additional buying options
Product Details

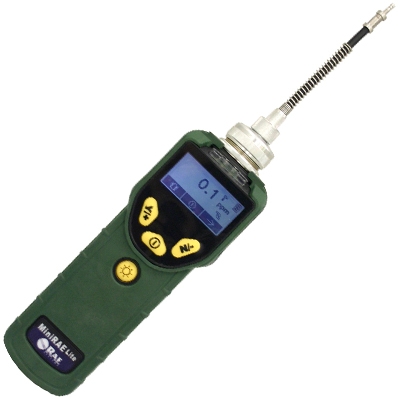

MiniRAE Lite PID Gas Detector

The MiniRAE Lite is an affordable handheld gas monitor for measuring volatile organic compounds (VOCs) that is perfect for leak detection or environmental clean-up and remediation. The photoionization detector (PID) detector measures from 0 to 5,000ppm and has a pump that can draw a sample from up to 100 feet away. The meter is easy to use with a large display and sizeable buttons that can be operated with up to three layers of gloves.


  • Proven PID technology
  • The patented sensor provides the following unique features:
    • 3-second response time
    • Range up to 5,000 ppm
    • Humidity compensation
  • Designed for service - Easy access to lamp and sensor in seconds without tools
  • Big graphic display for easy overview of concentration
  • Field-interchangeable battery pack, replacable in seconds without tools
  • Integrated flashlight for better visibility in low light
  • Multi-language support with 12 languages encoded
  • Rugged housing withstands use in harsh environments
    • IP-65 design
    • Strong, protective removable rubber boot.

Additional Features:

  • Duty-cycling lamp and sensor auto-cleaning technology
  • Tough, flexible inlet Flexi-Probe
  • Large keys are operable with 3 layers of gloves
  • Strong, built-in sample pump draws up to 100' (30m) horizontally or vertically
  • Loud, 95 dB audible alarm
  • Bright red flashing visible alarm
  • Interchangeable drop-in Lithium-ion and alkaline battery packs
  • 3-year 10.6 eV lamp warranty

MiniRAE Lite PID Gas Detector

SIZE 10" L x 3.0" W x 2.5" H (25.5 x 7.6 x 6.4 cm)
WEIGHT 26 oz (738 g)
SENSORS Photoionization sensor with standard 10.6eV lamp
BATTERY - Alkaline battery adapter
- External field-replaceable lithium-ion battery pack, if specified
OPERATING HOURS 12 hours of operation on alkaline battery adapter (12 hours with lithium-ion battery pack)
DISPLAY GRAPHIC 4 lines, 28 x 43 mm, with LED back light
KEYPAD 1 operation and 2 programming keys, 1 flashlight on/off
DIRECT READOUT Instantaneous reading of:
- VOCs as ppm by volume
- High and low values
- Date and time
ALARMS 95 dB buzzer (at 30 cm) and flashing red LED to indicate exceeded preset limits
- High: 3 beeps and flashes per second
- Low: 2 beeps and flashes per second
- Alarm latching with manual override or automatic reset
- Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI - Highly resistant to EMI/RFI.
- Compliant with EMC directive 89/336/EEC
DATALOGGING Standard 6 months at one-minute intervals
CALIBRATION Two-point calibration for zero and span
SAMPLING PUMP - Internal, integrated flow rate at 400 cc/min
- Sample from 100' (30m) horizontally and vertically
LOW FLOW ALARM Auto shut-off pump at low-flow condition
OPERATING TEMPERATURE -4° to 113° F (-20° to 50° C)
HUMIDITY 0 to 95 relative humidity (non-condensing)
ATTACHMENTS Durable green rubber boot
WARRANTY 3 years for 10.6 eV lamp, 1 year for pump, battery and instrument

VOCs 0 to 999.9 ppm 0.1 ppm < 3 sec
VOCs 1000 to 5,000 ppm 1 ppm < 3 sec

MiniRAE Lite PID Gas Detector

Monitor only includes:

  • MiniRAE Lite Monitor, Model PGM-7300. Not Intrinsically Safe
  • RAE UV lamp, 10.6 eV
  • Flex-I-Probe
  • External filter
  • Green rubber boot
  • Alkaline battery adapter
  • Lamp cleaning and Tool kit
  • Li-Ion Battery with universal AC/DC adapter and international plug kit
  • Travel download charger
  • Operation and maintenance manual
  • Soft leather carrying case

Monitor with Accessories Kit adds:

  • Hard transport case with pre-cut foam
  • 5 Porous metal filters and O-rings
  • Organic vapor zeroing kit
  • Gas outlet port adapter and tubing

Calibration Kit adds:

  • 100 ppm isobutylene calibration gas, 34L
  • Calibration regulator & flow controller
  • Cal gas, part number 600-0002-000

MiniRAE Lite PID Gas Detector
