ppbRAE 3000 PID Gas Detector

There are no reviews yet. | Write a review
Item #: 059-C
Min Order: 0
Order Qty: Must order in multiples of 1
$7,024.00
PID Option:
Wireless Option:
Kit Option:
Update price
View additional buying options
Product Details

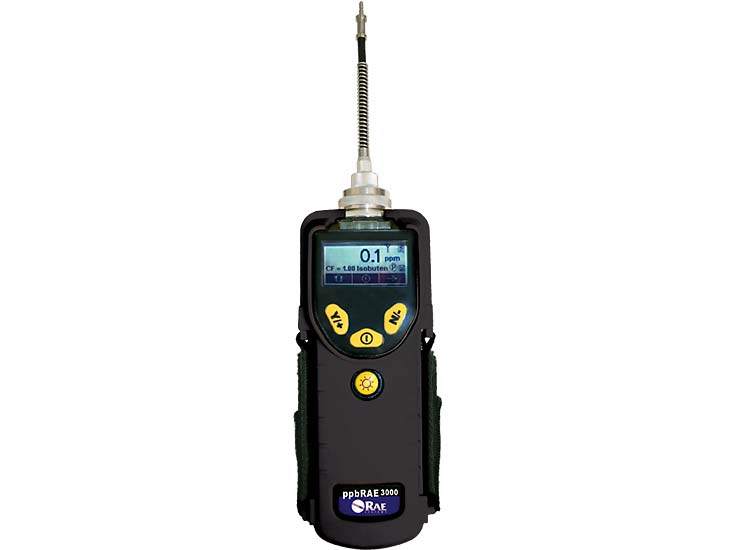

ppbRAE 3000 PID Gas Detector

The ppbRAE 3000 is an advanced photoionization detector (PID) with a measuring range of 1 ppb to 10,000 ppb and a 3 second response time. The rugged housing, large display, and large keys that can be operated with three layers of gloves. With a built-in correction factor library containing over 200 compounds, the ppbRAE 3000 is ideal for CBRNE, HazMat Response, Civil Defense, Oil & Gas, and other hazardous applications.

The optional Mesh Radio enables real-time monitoring of instrument readings wirelessly when paired with a RAE Link 3 Mesh. Alternatively, the Bluetooth wireless option allows the meter to relay readings and alarm status up to 2 miles to a RAELink 3 wireless transmitter.

Key Features:

  • Proven PID technology. The patented sensor provides the following unique features:
    • 3-second response time
    • Extended range up to 10,000 ppm with improved linearity
    • Humidity compensation with integral humidity and temperature sensors
  • Real-time wireless data transmission with built-in RF modem or Bluetooth
  • Designed for simple service Easy access to lamp and sensor in seconds without tools
  • Big graphic display for easy overview of gas type, Correction Factor and concentration
  • Field-interchangeable battery pack replaced in seconds without tools.
  • Integrated flashlight for better view in dark conditions
  • User-friendly screens including dataplot chart view
  • Integrated RAE Systems Correction Factors list for more than 200 compounds to measure more chemicals than any other PID
  • Multi-language support with 12 languages encoded
  • Rugged housing withstands use in harsh environments - IP67 waterproof design for easy cleaning and decontamination in water - Strong, protective removable rubber boot

Additional Advantages:

  • View real-time sensor data and alarm status at headquarters or command Center
  • Automatic lamp type recognition
  • Duty-cycling lamp and sensor auto-cleaning technology
  • Tough, flexible inlet Flexi-Probe
  • Large 3 keys operable with 3 layers of gloves
  • Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
  • Loud 95 dB audible alarm
  • Bright red flashing visual alarm
  • Interchangeable Drop-In Lithium-ion and alkaline battery packs
  • Charging cradle doubles as an external battery charger
  • Compatible with AutoRAE calibration station
  • ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
  • License free, ISM band RF transmission with communication range up to 500 feet 2 miles (with optional)
  • Optional RAELink III modem provides GPS capability to track and display readings from remote detectors as well as 2 miles long distance transmission
  • Data logging with up to 6 months of data at one-minute intervals
  • 3-year 10.6eV lamp Warranty

ppbRAE 3000 PID Gas Detector

Instrument Specifications
Size 10” L x 3.0” W x 2.5” H (25.5 x 7.6 x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6 eV or optional 9.8 eV lamp
Battery • Rechargeable, external field-replaceable Lithium-Ion battery pack
• Alkaline battery adapter
Running time 16 hours of operation (12 hours with alkaline battery)
Display Graphic 4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypad 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout Instantaneous reading
• VOCs as ppm by volume or mg/m3 (3 in upper case for cubic)
• STEL, TWA and PEAK
• Battery and shutdown voltage
• Date, time, temperature
Alarms 95 dB (at 12”/30 cm) buzzer and flashing red LED to indicate exceeded preset limits
• High: 3 beeps and flashes per second
• Low: 2 beeps and flashes per second
• STEL and TWA: 1 beep and flash per second
• Alarms latching with manual override or automatic reset
• Additional alarm for low battery and pump stall
EMI/RFI Highly resistant to EMI/RFI
Compliant with EMC Directive 89/336/EEC
IP Rating • IP-67 unit off and without flexible probe
• IP-65 unit running
Datalogging Standard 6 months at one-minute intervals
Calibration Two-point or three-point calibration for zero and span. Reflex PID TechnologyTM
Calibration memory for 8 calibration gases
Sampling Pump • Internal, integrated flow rate at 500 cc/mn
• Sample from 100’ (30m) horizontally and vertically
Low Flow Alarm • Auto pump shutoff at low-flow condition
Communication & Data Download • Download data and upload instrument set-up from PC through charging cradle or using BLE module and dedicated APP
• Wireless data transmission through built-in RF modem
Wireless Network Mesh RAE Systems Dedicated Wireless Network
Wireless Range
(Typical)
Up to 15 ft (5m) for BLE
EchoView Host: LOS > 660 ft (200 m)
ProRAE Guardian & RAEMesh Reader: LOS > 660 ft (200 m) ProRAE Guardian & RAELink3 Mesh: LOS > 330 ft (100 m)
Safety
Certifications
• US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
• Europe: ATEX Ex II 2GEx ia IIC/IIB T4
• IECEx: Ex ia IIC/IIB T4
Temperature -4° to 113° F (-20° to 50° C)
Humidity 0 to 95 relative humidity (non-condensing)
Attachments

Durable black rubber boot with straps

Warranty 3-year warranty for 10.6 eV lamp,
1 year for pump, battery, and instrument
Wireless Frequency ISM license-free band. IEEE 802.15.4 Sub 1GHz
IEEE 802.11 bands b/g 2.4 GHz
Wireless Approvals FCC Part 15, CE R&TTE, Others1
Radio Module Supports Bluetooth or RM900 or BLE

The best geek prank collection can be found at GeekPrank.com. Play with the Windows simulator, the fake upgrade screens, the fake disk formatter and other pranks.

ppbRAE 3000 PID Gas Detector

Monitor only includes:

  • ppbRAE 3000 Monitor, Model PGM-7340
  • Wireless communication module in built ,as specified
  • Datalogging with ProRAE Studio Package for Windows 95, 98, 2000, NT, ME & XP
  • Charging/download adapter
  • RAE UV lamp, as specified
  • VOC Zeroing Tubes (1 box)
  • Tube adapter
  • Tedlar® bag for calibration
  • Flex-I-Probe
  • External filter
  • Rubber boot with belt clip and straps
  • Alkaline battery adapter
  • Lamp-cleaning kit
  • Tool Kit
  • Lithium-Ion (Li-Ion) battery with universal AC/DC charger and international plug kit
  • Operation CDROM
  • Operation & Maintenance manual
  • Soft leather case

Monitor with accessories kit adds:

  • Hard transport case with pre-cut foam padding
  • Charging/download cradle
  • 5 Porous metal filters and O-rings
  • Organic vapor zeroing kit
  • Gas outlet port adapter and tubing

Optional calibration kit adds:

  • 10 ppm isobutylene calibration gas, 34L
  • Calibration regulator and flow controller
