Sentry EC

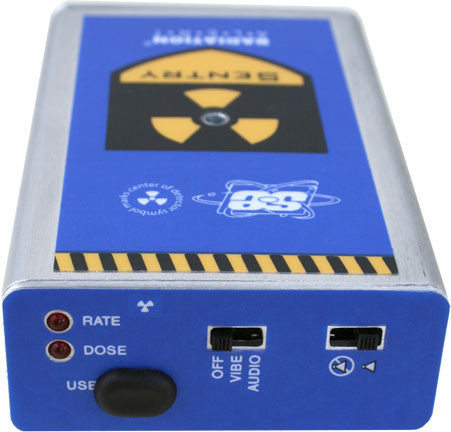

The Radiation Alert Sentry is a Personal Alarming Dosimeter / Ratemeter designed to ensure the safety of personnel that work in occupations with potential x-ray or gamma exposure. The pocket sized unit has an energy compensated tube for a linear response to gamma and built in memory for recording data points for tracking accumulated exposure.
The included SentryCom Software enables you to generate incident reconstruction for analysis. The software also permits you to easily set the vibrating and audio alert to your desired levels for dose (>1.0 mR/10 μSv) and dose rate (>1.0 mR/hr/10 μSv/hr). Use the audio switch to choose between audible clicks with each count recieved or a discreet silent mode.
SentryCom Software
The free SentryCom Software enables you to easily integrate The Sentry into your radiation safety program by allowing you to select the thresholds alarms/warnings to your desired levels for dose (>1.0 mR/10 μSv) and dose rate (>1.0 mR/ hr/10 μSv/hr). You can set the Cal Factor, and the data logging frequency, and download the accumulated dose data as a text file. The report includes a delimited time and date stamp, exposure, and power cycle identifiers for easy recording and incident analysis in most spreadsheet programs. Units of measurement can be changed between mR/ hr and μSv/hr to fit your application and reporting needs. The SentryCom Software comes complete with mini-USB cable.
Sentry EC
| Detector |
Energy Compensated GM Tube |
| Dose Rate Linearity |
Better than ±15% up to 15 R |
| Energy Response |
Down to 20 KeV |
| Accuracy |
Typically ±15% of reading (Cs-137) |
| Gamma Sensitivity |
1.5 cps / mR / hr (Co-60) |
| Switch Functions |
Power, Vibrate & Audible Alert, Silent Vibrating
Only Alert, and Audio Clicks On / Off |
| Operating Range |
Dose Rate: 0.1 mR / hr - 15 R / hr
(1 µSv/hr - .15 Sv / hr)
Accumulated Dose: 0.1 mR - 65 R
(1 µSv - .65 Sv) |
| Audible Alarms |
Accumulated Dose & Dose Rate, 90db @ 1 ft. |
| Alarm Thresholds |
Default: Dose 500 mR / Rate 50 mR/hr
Sievert Option:
Dose 5000 µSv / Rate 500 µSv/hr
Alarm and warning levels are user selectable
with the optional SentryCom Software |
| Power Requirements |
9-Volt Alkaline Battery approx. 1500 hrs at
normally background |
| Enclosure |
Alodized Aluminum Housing w/
Metal Belt Clip |
| Outputs |
Mini-USB |
| Temperature Range |
-20° -+ 50°C (-4° -+ 122°F) |
| Weight |
243 g (8.6 oz) |
| Size |
106 x 67 x 28 mm (4.2 x 2.7 x 1.1 in.) |
| Limited Warranty |
1 year limited |
