Reusable Anchors w/ D rings and Screws, Box of 10

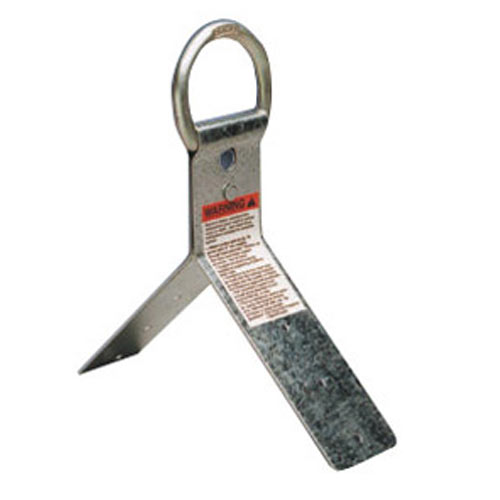

The RA15-1 Reusable Roof Anchor is used to provide temporary, reusable roof anchorage for residential and construction applications. The RA15-1 comes complete with ten (10) reusable anchors, D-rings and screws.
The RA15-1 is approved for use on both wood and metal roofing. Different screws are required (See specifications).
Requirements:
- RA15-1 roof brackets must be used only with Miller approved components that limit the fall arresting forces to 900 lbs or less.
- Support structure at anchor site must be capable of supporting a 5,000 lb static load.
Reusable Anchors w/ D rings and Screws, Box of 10
Materials:
| Anchor: |
14 gauge steel |
| D-Ring: |
Clear Chromate Finished Carbon |
| Roofing Screws: |
#12 2-½ in. pan head sheet metal screws |
| Metal Roofing Screws: |
#12 2-½ in. TEK self-tapping screws |
Note: Sheet metal must be a minimum of 20 gauge (0.036-in.) thickness and each TEK screw must completely go into a structural member (e.g. purlins of Z bar or C bar).
Technical Details:
- Weight: 1.24 lbs (0.56 kg) each
- Max. Working Load: 310 lbs (140.62 kg)
- D-ring Min. Tensile: 5,000 lbs (22kN)
Certification:
- Meets OSHA 1926.502(d)(16)(v) requirement
Reusable Anchors w/ D rings and Screws, Box of 10
