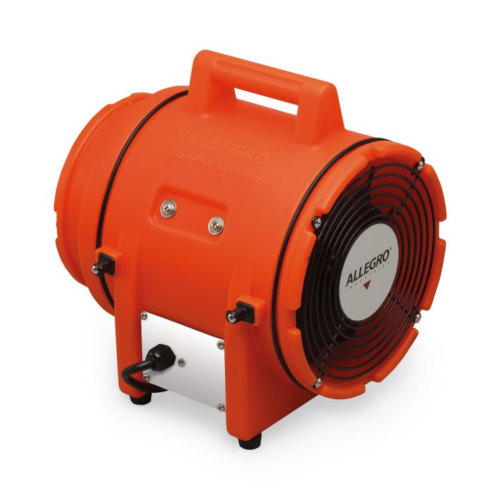

8 inch Axial Explosion-Proof (EX) Plastic Blower
High output from a compact axial blower, designed for easy use and storage

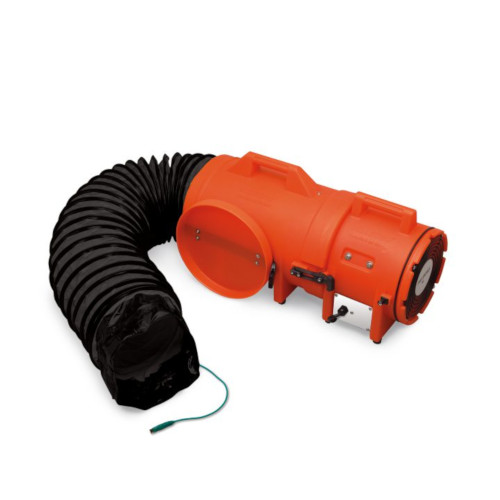

without sacrificing airflow. Available as blower only or complete unit with 15’ (4.75
m), 25’ (7.62 m) or 50’ (15.2 m) of ducting and storage canister. Canister attaches
to intake or output of blower for suction or ventilation. Certified to CSA Standard
C22.2 No.113.
Blower Features
- New compact canister in 9538-15 and 9538-25 models is the lightest and smallest in the industry!
- Polyethylene housing and canister assembly
- Lightweight, corrosion-, UV- and chemical-resistant
- Super quiet, in “safety orange”
- Bottom enclosure to protect electrical components
- Carry handle molded into blower and canister housing
- Steel powder coated grill
- NOTE: EX blowers require an explosion-proof socket (PN 9503-03)
Ducting Features
(included on 9538-15, 9538-25 and 9538-50 models)
- Black single-ply lightweight vinyl/polyester coated with neoprene 250° F (121.1° C) temp. resistant
- Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
- WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.
8 inch Axial Explosion-Proof (EX) Plastic Blower
Blower Dimensions:
| P/N |
Length |
Width |
Height |
Weight |
| 9538 |
13 ¼” (33.6 cm) |
12” (30.4 cm) |
13 ¾” (34.9 cm) |
17 lbs. (7.7 kg) |
| 9538-15 |
26” (66.0 cm) |
13 ½” (34.2 cm) |
14 ½” (36.8 cm) |
25 lbs. (11.3 kg) |
| 9538-25 |
26” (66.0 cm) |
13 ½” (34.2 cm) |
14½” (36.8 cm) |
30 lbs. (13.6 kg) |
| 9538-50 |
32” (81.3 cm) |
13 ½” (34.2 cm) |
14½” (36.8 cm) |
40 lbs. (18.1 kg) |
Flow Rates:
| Free Air |
One 90° Bend |
Two 90° Bends |
| 900 CFM (1529.1 m3/hr) |
650 CFM (1104.35 m3/hr) |
625 CFM (1061.8 m3/hr) |
8 inch Axial Explosion-Proof (EX) Plastic Blower
