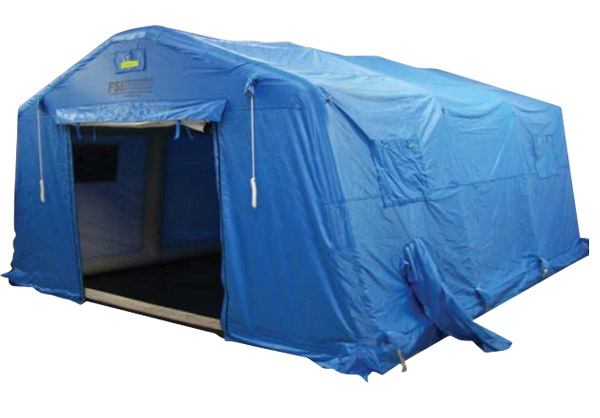

FSI DAT Series Pneumatic Shelter 13' W x 17' L x 9'H

There are no reviews yet. | Write a review
Item #: DAT3370
MFG: FSI
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$15,085.00
Qty:
View additional buying options
Product Details

FSI DAT Series Pneumatic Shelter 13' W x 17' L x 9'H

All DAT series shelters are supplied fully equipped and ready to be placed in service. Simply roll out, inflate, tie/stake down, and commence operations

Every shelter with a width of over 11 ft - regardless of length and overall size offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 - 24" off center. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above entry and exit doors. Units can attach to a second FSI shelter or shower. Simply inflate the unit and commence use in approx. 1 - 4 minutes.

Possible Shelter Uses:

  • Command
  • Field hospital
  • Medical surge capacity
  • Temporary housing
  • Portable morgue
  • Athletic
  • Training/cool down
  • Isolation
  • Crime scene privacy shelter
  • Anteroom

Shelter includes:

  • Full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors
  • (2) high pressure & (2) low pressure inflation/deflation valves
  • (2) pressure relief valves
  • Air inflation hose w/ safety cord
  • (4) windows – two on each side
  • (2) skylights
  • (4) 17” HVAC/clothes inlet/outlets with tie closures – 2 each on opposite ends/sides
  • (14) Metal stakes
  • (4) Tie down ropes
  • (4) D-rings
  • Repair kit
  • Manual
  • Shelter sleeve
  • (2) Upper air vents
  • Hammer
  • Electric inflator/deflator
  • High pressure compressed air fill hose
  • Universal high pressure SCBA fitting

FSI DAT Series Pneumatic Shelter 13' W x 17' L x 9'H

DAT3370
Measurements: Approx. 13’ W X 17’ L X 9’ H - 221ft2
Weight: 240 lbs.
Carton Size: 54” L X 43” W X 36” H
Air Volume: 125ft3
Wind Resistance: Approx. 70 mph
Roof Load: 1,800 lbs
Air pressure internally once inflated: 4.3 psi
Total Weight: 1055 g/m2
Thickness: 0.90 mm
Cut strip tensile strength: Warp = 450 lbs/in
Weft = 404 lbs/in
Elongation: Warp = 30%
Weft = 47%
Tongue tear: Warp = 87 lbs
Weft = 100 lbs
Adhesion: Warp = 9.4 lbs/in
Weft = 8.9 lbs/in
Density:30 X 24.5
Certifications: ANSI 113 compliant
Frame
Material: - Heavy Duty 1100 Dtex polyester coated w/ plastomer on both sides
- UV/Chemical resistant
- Quadruple overlapped and glued.
Canopy
Material: - Heavy duty 100% nylon twill (3/5) w/ PU white pigment inner coating
- UV/chemical resistant/fire retardant
- UV resistant and water repellent w/ a hydrostatic resistance of 250 psi + -
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- Meets NFPA701 Flammability Test method 1 (2004)
- NFPA 702 w/ ‘A’ burn scale rating
- All seams double stitched and coated both sides.
Dimensions: Approx. 23mm X 57/58
Weight: Approx. 1.230 gr/m2
Inner Canopy
Material: - 100% Nylon 210T Antron Water Resistant Polyurethane Coated 57/58"
- Flame Retardant to meet 'NFPA-701 TM-1'
- Anti-fungus/Anti-mildew
- Opaque
Color: White
Floor
Material:PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester)
Weight: 660 gr/mm2
Width: 60 in
