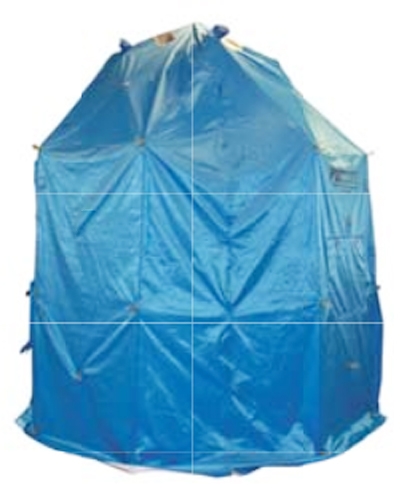

3 Line, 3 or 4 Stage Mass Casualty Decon Shower System 11'W x 20'L x8.5'H

There are no reviews yet. | Write a review
Item #: DAT QE3060S

UOM: Each

View additional buying options

3 Line, 3 or 4 Stage Mass Casualty Decon Shower System 11'W x 20'L x8.5'H

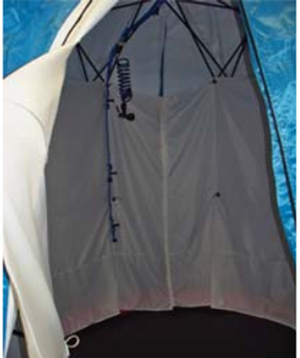

The DAT QE3060S is a three-line wide, 3 or 4-station Mass Casualty Decon Shower System which handles two or three parallel lines of casualities at the same time in three or four sequential stations. --- (1) undress, (2) detergent shower #1 - (3) rinse shower #2 or handle 2 personnel in separate showers simultaneously in each lane, (4) redress. This unit deploys in approx. 4-5 minutes, and as a three-line system processes up to six ambulatory persons at a time or 3 non-ambulatory persons on stretchers simultaneously - or any combination. Undress and redress sstations are dry (plumbing is possible and optional). Four shower stations include 3 showerheads and one hanging coiled 1/2" hose line w/ attached multiple function spray nozzle. The two middle line shower stations include two hanging coiled 1/2" hose lines with attached multiple function spray nozzles. There are a total of 20 water ischarge porsts as standard. As an option -- by configuring the changing areas on both ends as decon showers one can double the capacity as detailed above.

Wasterwater is contained within integral 12' W x 12' L ground floor and 6" pop up berm erected when system is initially setup. Floor holds 300 gallons of waster water before pump-out is required.

All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors

All parts are pre-assembled w/ no special tools required. All components are of telescoping aluminum w/ locking hinges, caps, and scissor connected support frames and guide rails, w/ recessed roller wheels for ease of movement for 'Quick Erect'. To 'Quick Erect' simply release handle locks, have 2-4 support personnel grip side frame without roller wheels. Pull the Width roller wheeled support frames slowly - until all hinges lock. Ease roof frame upwards. Then pull the Length support frames until locked. Check and final position canopy and floor. Commence use.

System includes:

  • (2) Windows
  • (2) Skylights
  • Full privacy zipper closure and full screen zipper closure slip in and out dirty entry/clean exit doors
  • (9) 1/3" cross divider curtains
  • (3) Center divider curtains to separate lines 1 and 2
  • (2) 3/4" high pressure 300 psi GHT threaded inlet hoses
  • Tie down ropes
  • (4) D-rings
  • Repair Kit
  • Manual
  • Shelter sleeve
  • (2) Upper air vents
  • Hammer
Quick Erect Measurements: 12’ W x 20’ L x 9’ H - 240 ft2
Weight: 245 lbs
Carton Size: 59" L x 33" W x 24" H
Certifications: ANSI 113 compliant
Material: Heavy duty lattice framework retractable, corrosion resistant, coated, lightweight aluminum tubing.
Capacity: 250 lb hang weight
Width: 45mm
Thickness: 1.2 mm
Weight: 570 g/m2
Tensile strength: 17 Kg/mm2
Elongation: 10%
Material: - Heavy duty 200 denier 3/5 twill nylon coated w/ polyurethane (PVC) on both sides
- UV/chemical resistant/fire retardant
- UV resistant & water repellent w/ a hydrostatic resistance of 250 psi +
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- NFPA 702 w/ ‘A’ burn scale rating
Dimensions: Approx. 23mm X 57/58
Weight: Approx. 1.230 gr/m2
Material: 1,000 denier Nylon coated w/ PU
Tensile Strength: 2545N/2360
Tear Strength: 106/102N
Weight: 490 g/yd
