QRAE 3 4-Gas Monitor, PGM-2500 Series

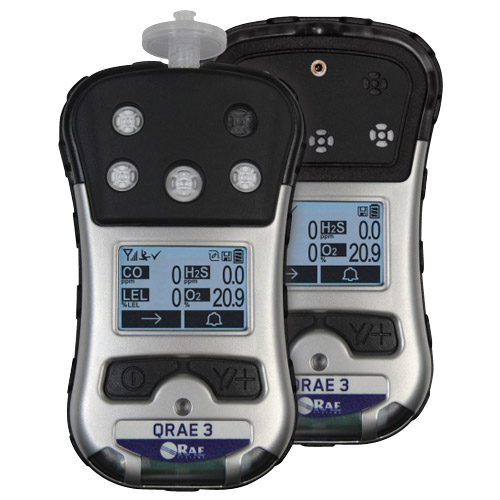

The QRAE 3 from RAE Systems is a pumped or diffusion gas detector available with up to four unique sensors. The monitor can be configured to detect combustibles (LEL), Oxygen (O2), Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Sulfur Dioxide (SO2), and Hydrogen Cyanide (HCN).

The QRAE 3 comes standard with a Li-Ion battery pack, wall charger, 95db audible alarm, internal vibrating alarm, and an IP-65 ingress rating. The unit is available with integrated Mesh wireless capability, which allows the device to be used either in a closed loop system (compatible with EchoView host) or with Honeywell Safety Suite, Real-Time Wireless Safety System.

Key Features:

  • Available in Diffusion or Pumped version
  • IP-65/67 water and dust resistant case
  • Strong, protective, concussion-proof design
  • Real-time gas concentration readings and alarm status enabled by state-of-the-art wireless technology
  • Unmistakable five-way local and remote wireless notification of alarm conditions
  • Large graphical display icon-driven user interface through intuitive, simple-to-operate two-button user interface
  • Multi-language support: 18 languages encoded
  • Easy access to pump,sensors, filter and battery compartment

QRAE 3 4-Gas Monitor, PGM-2500 Series

Sensors: Up to four field-replaceable sensors:
  • LEL: Catalytic bead for combustibles (built-in Correction Factor library)
  • Oxygen: Liquid electrolyte O2
  • Toxic: electrochemical for H2S, CO, SO2, HCN
Battery Rechargeable Lithium-ion
Run Time 14 hours continuous non-wireless, diffusion

11 hours continuous non- wireless, pumped

10 hours continuous with wireless, diffusion

8 hours continuous with wireless, pumped
Display Monochrome graphic display (128x80)

Display Size: 1.57" x 1/06" with backlighting

Automatic or on-demand screen rotation
Keypad Two button operation
Direct Readout Real-time reading of gas concentrations

Battery status

Pump status (if equipped with pump

Wireless on/off and wireless reception quality

STEL, TWA, peak, and minimum values

Man Down and policy enforcement indicators
Alarm Multi tone 95 dB buzzer, vibration alarm and flashing red LEDs and on-screen indication of alarm conditions

Alarms: Latching, non latching or manual override

Additional diagnostic alarm and display message for low battery

Pump stall alarm, pump version only

Man Down Alarm with pre-alarm and real time remote wireless notification
Datalogging Continuous datalogging, 3 months for 4 sensors at 1 minute intervals

User configurable datalogging intervals, from1 to 3,600 seconds
Communication & Data Download Data download and instrument set up and upgrades on PC via travel charger

Wireless data and status transmission via built in RF modem, optional
EMI/RFI EMI & ESD Test: 100 MHz to 1 gHz 30V/m, no alarm

Contact: ±4kV

Air: ±8kV, no alarm
Wireless Network Mesh Rae Systems Dedicated Wireless Network

ISM license free bands, 868MHz or 90MHz
Wireless Range EchoView Host: LOS > 650 feet

Honeywell Safety Suite & Mesh Reader: LOS > 650 feet

Honeywell Safety Suite & RaeLink3: LOS > 330 feet
EM Immunity EMI & ESD Test: 100MHz to 1GHz 30V/m, no alarm

Contact: ±4kV

Air: ±8kV, no alarm
IP Rating Pumped: IP-65

Diffusion: IP-67
Calibration Two point calibration for zero and span (manual or automatic with AutoRae 2)
Sampling Pump Built in pump or diffusion

Can sample through tubing up to 98 feet
Temperature -4 to 122°F
Humidity 0 to 95% rH, non condensing
Size Diffusion: 5.5" L x 3.2" W x 1.5" H

Pumped: 5.7" L x 3.2" W x 1.7" H
Weight Diffusion: 12.9 ounces

Pumped: 14.5 ounces
Approvals US & Canada: Class I, Division 1, Groups A, B, C, D
Warranty Unit: 2 years

O2, CO, H2S Sensors: 3 years

All Other Toxics: 1 year
