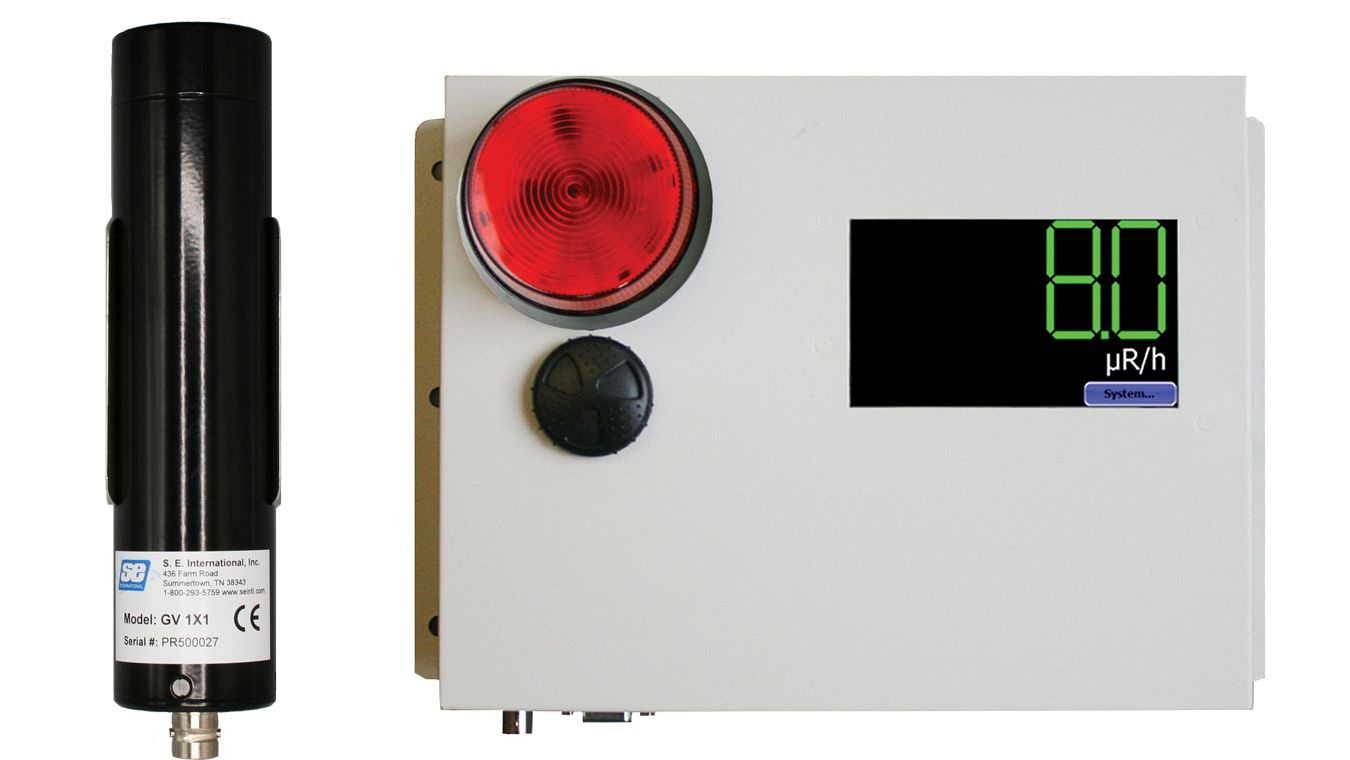

AM-1X1 Radiation Alert Area Monitor w/ External Scintillation Probe
The Radiation Alert® Area Monitor is one of the most user friendly, all inclusive, state of the art radiation area monitors available. The easy to use interface is an intelligent resistive touch screen display featuring a large five digit LED readout.
The AM1X1 comes with either an internal or external Sodium Iodide Scintillation Detector. Cesium Iodide probes available. Rugged, wall mount enclosure options are available for high traffic areas.
Monitor every Radiation Alert® Area Monitor on your network with the free software. Includes user selectable warning indicators for low and high radiation alarm levels, low battery, and detector failure. Setup email and text alerts to receive alarms while on the go. All the settings are stored internally, even when power is disconnected. All units come with a Certificate of Conformance. NIST Source calibrations available upon request.
Applications & Uses: Room monitoring for Hospitals, X-Ray machines, Accelerators, Laboratories, etc. Portal monitoring, such as doors and walkways, Source monitoring, Alarms in the presence of radiation or the absence of sources
||1X1 NaI(Tl) Scintillation Probe.
||>18,000 CPM/mR/hr (137 Cs)
||1 µR/hr to 10 mR/hr (0 µSv/hr – 0.1 mSv/hr)
|Touch Screen Display
||4.3 inch TFT 480×272 touch screen display with user friendly Programmable
Units of Measurement and Audio and Visual Alarms. 5-digit LED display with
2.5 cm (1 in.) character height. 65K true colors capable of displaying full
color images, animations, icons, and video clips<br>Custom Probe
Options Available. Tell us about your application and we can recommend the
best probe options for your needs.
||Can display in R/hr, mR/hr, KR/hr, Sv/hr, mSv/hr, Sv/hr, cpm, Kcpm, cps,
Kcps, and others
||30 KeV – 2 MeV
||NIST Calibrated readings within 10% of true value with detector connected
||Varies automatically from 20 seconds to 2 seconds
||Functions accessible through touch screen push button under calibration
cover enables secure access to changing settings
||User adjustable to compensate for dead time of the detector and
||Ultra-Bright Strobe and Audible Alarm<br>Can trigger up to three
relays with DB-9 serial connection<br>USB VCP for computer data
logging, can also be used to control the unit with use of remote software for
alarm indication and acknowledgment (Silence by remote)
Includes: Management software for use with networked area monitors, Base Unit, Power Supply, Mounting Clips (External Versions Only), C to C Cable (External Versions Only).
Options: External Strobe and Horn, External Detector, NIST Calibration
Ethernet: 10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)
Construction: Easy mount steel enclosure
High Voltage: User adjustable from 200 to 1200 volts
Power: 12 VDC wall mount adapter with two sets of international adapters for almost any style wall receptacle
Battery Life: Typically 5 hours in non-alarm condition; 6 hours in alarm condition
Battery Charger: SLA Battery is continuously trickle charged when the instrument is connected to line power and turned on
Temperature Range: 10 to 60 °C (14 to 140 °F)
Size: 20.3 x 28.6 x 10.8 cm (8 x 11.25 x 4.25 in.)
Limited Warranty: 1 year limited warranty
