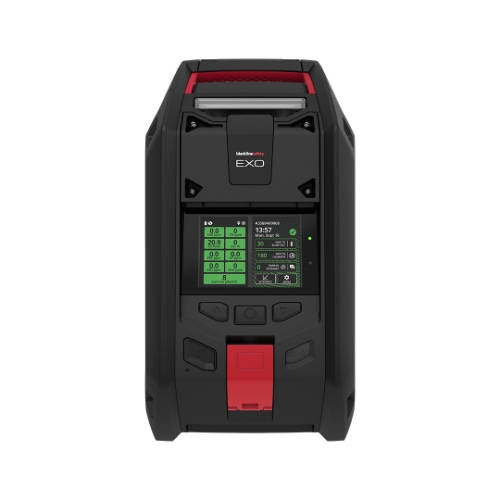

EXO 8 Area Gas Monitor
The Blackline Safety EXO 8 is the world’s only direct-to-cloud connected portable area monitor capable of detecting up to eight gases simultaneously. The EXO 8 can also measure Gamma radiation at three times the distance compared to competitors’ devices, so responders will know radiation is present sooner and from further away, reducing the risk of harmful exposure.
The EXO 8’s new dual-screen display has a higher resolution
than the single-screen used on G7 EXO. The left screen
shows live gas readings. The right screen is the
Dashboard, which displays the menu, messages,
notifications, and status updates.
The EXO 8 delivers real-time data streaming to the cloud for unparalleled situational awareness and rapid incident response – all in one rugged, drop-and-go device with up to 100 days of battery life.
Features:
- Monitor up to 8 gases simultaneously
- Measure Gamma at 3x the distance of competitor products
- Dual screen display
- Refreshed and modernized user interface
- IP66 rating for water ingress
EXO 8 Area Gas Monitor
| DEVICE SPECIFICATIONS |
| MATERIAL |
Rugged housing built from aluminum, plastic and rubberized bumpers |
| WEIGHT |
12.25 Kg (27 lbs) |
| DIMENSIONS |
385 mm x 188 mm x 220 mm (15.1” x 7.4” x 8.7”) |
| TEMPERATURE |
Operating: -20°C to 50°C (-4°F to 122°F)
Storage: -40°C to 60°C (-40°F to 140°F) |
| HUMIDITY |
15 to 90% RH Non-condensing |
| DATA |
Logging: Every minute
Update interval: Every 30 minutes; instantly upon high urgency events, and every 5 seconds until event cleared |
| APPROVALS/ STANDARDS |
RoHS, CE
Canada and USA: Class I Division 1 Group A,B,C,D T3; Class I Zone 0 AEx ia IIC T3; Ex ia IIC T3 Ga
IECEx: Ex ia IIC T3 Ga
ATEX: Ex ia IIC T3 Ga
LEL Performance: CSA C22.2 No.152; ISA 12.13.01 |
| IP RATING |
Designed to meet IP66 |
| SOUND LEVELS |
Sounder db rating: 110 dB @ 30 cm (12 inches)
Speaker db rating: 73 db @ 30 cm (12 inches)
|
| SENSORS |
Standard: 4 sensors, up to 5 gases
Optional gas expansion module: 8 sensors, up to 8 gases
|
| WARRANTY |
Three-year hardware warranty, extended warranty available. Blackline complete lease option provides comprehensive warranty for full term. |
| CONNECTIVITY |
| LOCATION AWARENESS |
Multi-constellation: GPS/QZSS, Galileo, BeiDou
Receiver type: 72-channel
Assisted-GNSS: Yes
GNSS Accuracy: 5 m (16 feet), CEP 50%,
24 hours static
Optional Beacon for indoor location accuracy
|
| CELLULAR |
Wireless coverage: 100 countries, 200 wireless carriers
North America: 3G/4G radio; 3G UMTS bands 2 and 5; 4G bands 2, 4 and 5
International: 2G/4G radio; 2G GSM bands E-GSM and PCS; 4G bands 3, 7 and 20
Asia Pacific: 3G/4G radio; 3G UMTS band 1; 4G bands 3, 8 and 28
Antenna: Internal
|
| SATELLITE |
Optional satellite module for connecting to the Iridium satellite network
Radio: 1621 MHz, 2 Watts
Antenna: Internal
|
| BLUETOOTH |
(4.2 BR/BLE) |
| WIRELESS UPDATES |
Over-the-air device configurations
Over-the-air firmware upgrades |
| OPTIONAL PTT |
Send and receive voice messages to other G7 and EXO devices |
| BATTERY AND CHARGING |
| RECHARGEABLE BATTERY |
144 Ah (LiFePO4) |
| CHARGE TIME |
~12 hours |
| BATTERY LIFE |
Battery life in diffusion mode: 100 days at 20°C (68°F), LEL-MPS, H2S, CO and O2 configuration
Battery life in pump mode: 30 days at 20°C (68°F), LEL-MPS, H2S, CO and O2 configuration
|
| USER INTERFACE |
| DISPLAY |
Dual 3.4“ diagonal , 272 by 451 pixel, 64-color liquid crystal displays (LCD) |
| BUTTONS |
Menu system: Driven by three-button keypad
Power button: On/off |
| SOS LATCH |
Send SOS alert |
| LANGUAGES |
Multi-language support: EN, FR, ES, DE, IT, NL, PT |
| OPTIONAL PUMP MODULE |
| CHANNELS |
4 |
| OPERATING TEMPERATURE |
-20°C to 50°C (-4°F to 122°F) |
| SAMPLE LENGTH |
Up to 30 m (100 ft) |
| INTERFACE PORTS |
| A/B |
Intrinsically safe, configurable external signal ports designed to integrate with external alarms and electrical systems
Four pins per interface port |
EXO 8 Area Gas Monitor
| Gas |
Sensor type |
Range |
Resolution |
| Ammonia (NH3) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range ammonia (NH3) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon monoxide (CO) |
Electrochemical |
0–500 ppm |
1 ppm |
| High-range carbon monoxide (CO) |
Electrochemical |
0–2000 ppm |
5 ppm |
| Hydrogen resistant carbon monoxide (CO-H) |
Electrochemical |
0–500 ppm |
1 ppm |
| Carbon dioxide (CO2) |
NDIR |
0–50,000 ppm |
50 ppm |
| Chlorine (Cl2) |
Electrochemical |
0–20 ppm |
0.1 ppm |
| Chlorine dioxide (ClO2) |
Electrochemical |
0–2 ppm |
0.01 ppm |
| COSH (CO + H2S) |
Electrochemical |
0–500 ppm CO,
0–100 ppm H2S |
1 ppm CO, 0.1 ppm H2S |
| Hydrogen cyanide (HCN) |
Electrochemical |
0–30 ppm |
0.1 ppm |
| Hydrogen flouride (HF) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| Hydrogen sulfide (H2S) |
Electrochemical |
0–100 ppm |
0.1 ppm |
| High-range hydrogen sulfide (H2S) |
Electrochemical |
0-500 ppm |
0.5 ppm |
LEL-MPS
See Blackline's LEL-MPS datasheet for more information |
Molecular property spectrometerTM |
0–100% LEL |
0.1% LEL |
| LEL-infrared (LEL-IR) |
NDIR |
0–100% LEL |
1% LEL |
| LEL-molecular property spectometer (LEL-MPS) |
MPS |
0–100% LEL |
0.1% LEL |
| Nitrogen dioxide (NO2) |
Electrochemical |
City Technology, 4ND |
0–50 ppm |
0.1 ppm |
| Oxygen (O2) |
Pumped electrochemical |
0–25% vol |
0.1% vol |
| Ozone (O3) |
Electrochemical |
0–1 ppm |
0.01 ppm |
| Photoionization (PID) ppm |
PID |
0–4,000 ppm* |
Dynamic resolution*,
0.1 ppm |
| Sulfur dioxide (SO2) |
Electrochemical |
0–100 ppm |
0.1 ppm |
EXO 8 Area Gas Monitor
System Access
Configure settings over-the-air on Blackline's cloud-based platform with 99.9% uptime. Plan includes live location data streaming and access to the real-time compliance dashboard. 2 years of access included with every purchase option, with additional years available for purchase.
Self-Monitored Protect Plan
Self-monitoring real-time service plan enables your supervisors, managers, network operations center or other partner to monitor the safety of your teams in the field and throughout facilities. Every alert generated by G7 wearables or G7 EXO area gas monitors are managed from receipt through to resolution using Blackline Live software. Configure email and text message alerts to your team and use the alert management workflow that features a map where your teams are distributed in order to organize an effective responser.
Blackline 24/7 Monitored Plan
Blackline Safety's in-house Safety Operations Center (SOC) oversees emergency and evacuation response management services for tens of thousands of workers. Should your business not be configured to optimally manage proactive responses, the TMA Five Diamond SOC includes a team of highly trained agents that have your business covered. The Blackline team boasts a response time with an engaged agent in under 60 seconds 99% of the time.
Push-to-Talk Collaboration Plan
With Push-to-talk (PTT), your teams can use G7 just like a walkie-talkie. PTT features 100 channels of collaboration and global coverage that supports 250 users per channel. Affordability of the PTT service plan means that you can place the power of a walkie-talkie into the hands of all your personnel would not normally be equipped with a two-way radio. PTT is a highly valuable service that increases efficiency and quality, plus delivers critical connectedness needed to manage an emergency incident or an evacuation.
