G6 Docking Station

There are no reviews yet. | Write a review
Item #: G6-DOCK-NA
Min Order: 0
Order Qty: Must order in multiples of 1
$720.00
View additional buying options
Product Details

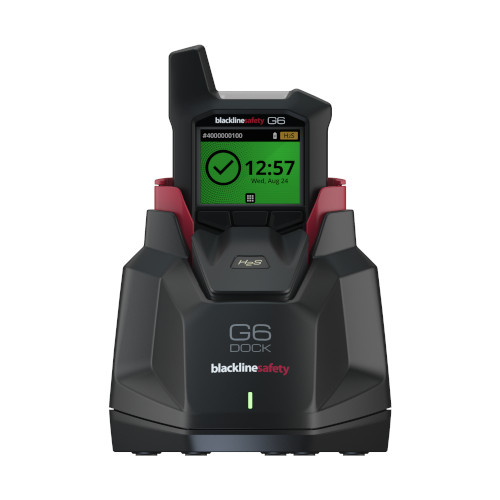

G6 Docking Station

Blackline Safety’s G6 Dock is the simple solution to easily calibrate, bump test and charge your G6 wearable single-gas detector.

G6 Dock works straight out of the box — simply plug it in to a power supply and a gas cylinder and it's ready to use. Docks leverage the connectivity of the inserted G6 wearable to communicate device test data to the cloud for automated compliance tracking and reporting. No ethernet connection required.

Bump tests and calibrations are straightforward, performed by simply placing a G6 device into the dock. If a G6 is due for a bump test or calibration according to your organization’s defined timeframe, G6 Dock will automatically perform the required test actions when the device is inserted and the device pushed down. Tests can also be prompted manually using the inserted G6 device's LCD screen and menu system.

G6 Dock is designed to ensure economical use of calibration gas, with a low flow rate, delivering maximum value and reliable, simple ease of use.

Features:

  • Bump Tests
  • Calibrations
  • G6 Charging
  • Easy Setup
  • Blackline Live Portal
  • Quick-connect tubing

G6 Docking Station

Size & Weight Size: 144mm x 121mm x 120mm (5.65” x 4.75” x 4.75”) DxWxH
Weight: 400g (13.9oz)
Gas configuration 1 customizable gas inlet, 1 purge air inlet, 1 gas outlet
Regulatory Compliance RCM
CAN ICES-3(B)/NMB-3(B)
FCC
CE
Features
  • Over-the-air configuration updates
  • Automatic bump
  • Automatic calibration
  • Dock usage reports
  • Gas usage reports
Power Supply Blackline requires using the power supply provided with your G6 Dock.
Input voltage: 5 VDC @ 1000 mA
Power connector: Micro-USB 120/240 VAC power adaptor and USB cable included
Warranty Two year warranty
