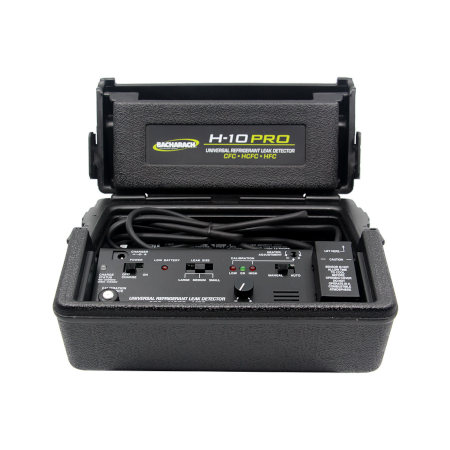

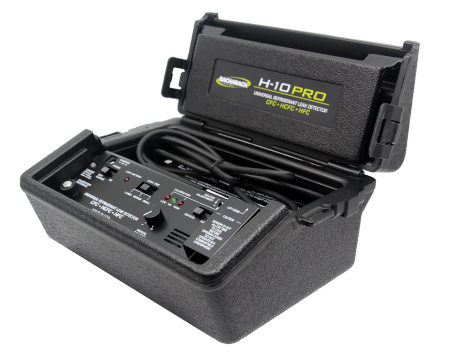

H-10 PRO Refrigerant Leak Detector
The H-10 PRO Refrigerant Leak Detector is a highly responsive universal refrigerant leak detector using Bacharach’s tried-and-true heated diode sensor technology. It’s ultra-sensitive to all halogen-based, non-flammable CFC, HFC and HCFC refrigerants for reliable use in a wide range of refrigerant leak detection applications. In fact, it’s the ac leak detector that technicians trust.
The H-10 PRO has a long probe (4.5 ft.) for detecting leaks in hard-to-reach areas, visual and audible indicators to show relative leak sizes and an auto-zeroing feature (automatic mode only) for finding leaks in backgrounds where target gas is present. It has an internal sensor calibration reference to ensure optimum performance.
- Detects all CFC, HFC and HCFC refrigerants as low as 0.006 oz/yr, including R-410a and R-507
- Dual power options allow battery operation for the best mobility or wall power for uninterrupted usage
- Visual and audible indicators include an incremental flashing LED in the probe tip, an internal speaker and a headphone jack
H-10 PRO Refrigerant Leak Detector
| Sensitivity / Minimum Detection Limit: |
0.006 oz/yr (stationary) 0.1 oz/yr (moving per SAE J2791) |
| Background Adjustment: |
Automatic, Manual |
| Response Time: |
1 Second |
| Power: |
12 VDC internal rechargeable battery or via 100-240 VAC wall adapter/charger |
| Run Time: |
3 hours (typical) on fully-charged battery |
| Warm-Up Time: |
2 minutes (approximate) |
| Status Indicator: |
Visual (red LED in probe tip) and audible (via internal speaker or headphones) |
| Product Dimensions (L×W×H): |
Unit: 8.3" × 10.5" × 5.4" (21.1 × 26.7 × 13.7 cm) Probe: 4.5' (1.37 m) |
| Product Weight: |
5.1 lbs. (2.3 kg) |
| Expected Sensor Service Life: |
1 year (typical) |
| Approvals: |
CE |
| Warranty: |
Instrument: 3 Years (Does not include sensor, battery, probe tip, airflow balls, filters or leak reference bottle), Battery: 1 Year |
| Country of Origin: |
United States |
