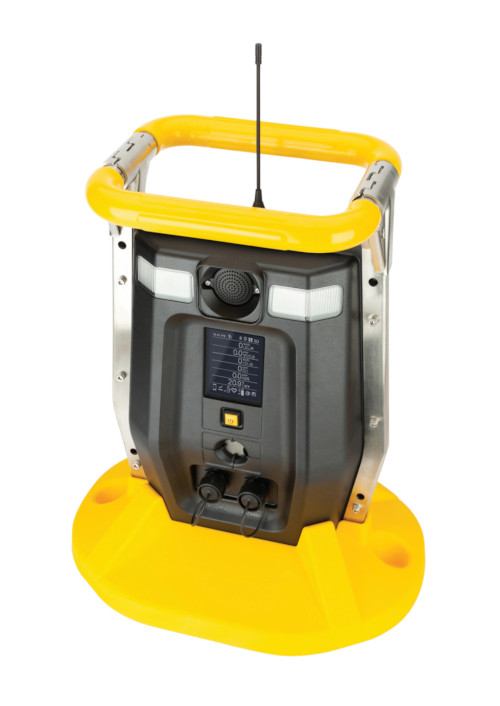

BW RigRat Multi-Gas Area Monitor

There are no reviews yet. | Write a review
Item #: HRR
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
View additional buying options
Product Details

BW RigRat Multi-Gas Area Monitor

Honeywell BW™ RigRat brings a new level of user-friendliness to transportable multi-gas area monitoring, so your people can work with confidence in hazardous areas. Simply place the monitor nearby, and it will alert workers to area gas threats so they can take action.
Grab and go. Like other Honeywell BW™ products, Honeywell BW™ RigRat is engineered for ease, with one-button operation. Simply turn it on and it's ready to deploy- no expertise required. Convenient handles and a carrying strap make it easy to take with you.
Unlike some transportable area monitors, Honeywell BW™ RigRat is fully self-contained - with no need to re­purpose your personal gas detectors for an area monitoring application. Instead, continue using your personal detectors to monitor workers' breathing zone, while using Honeywell BW™ RigRat to monitor an area. .

Features & Benefits

  • Wireless Safety Perimeter
  • Remote monitoring
  • Honeywell TouchPoint Plus Compatible
  • Line Power for extended runtime in the field
  • Inert mode that prevents alarm in normal ambient air
  • Large, easy-to-read display
  • Rugged, weatherproof design, with optional protective cage
  • I/O ports providing additional input capabilities and local executive activation

Quick Specs

  • 8 weeks of runtime on a single charge
  • Up to 6 gas sensors
  • Programmable input and output
  • Simple smartphone setup

BW RigRat Multi-Gas Area Monitor

Dimensions: 15.8 x 11.4 x 18.5 in. / 40.0 x 29.0 x 47.0 cm
Weight: 17.6 lb / 8 kg
Gas Sensor Slots: Up to 6
Ambient Conditions: Temperature: -4 to +140°F (-20 to +60°C) for pumped models;
-40 to +140°F (-40 to +60°C) for diffusion models
Humidity: 5 - 95% RH (non-condensing)
Humidity: 5 - 95% RH (non-condensing)
Alarm: Red/yellow/green LED alarm; buzzer alarm 108 dBA @ 1 m; on-screen indication of alarm conditions
Operating Time: 8 weeks for low-power model; other models vary by configuration
Charging Time: Less than 18 hours when instrument is powered off
Keypads: One-button operation and programing
Display: 3.5” 240 x 320 TFT color LCD with white LED backlight
Alarm: Potential-free alarm contact for instrinsically safe circuits (6-pole)
< 20 V to 0.25 A (0.15 A constant current)
Resisting load
Datalogging: ISM license free band:
Bluetooth Low Energy Module (BT 4.2 / 5.0), 2.4 GHz, in default;

Mesh Module: IEEE 802.15.4 868 MHz / 915MHz /2.4 GHz (optional); OR
Wi-Fi Module: 802.11 b/g/n 2.4 GHz (optional)
Wireless: Complete gas sensors and instrument information for at least 4 months at one minute intervals
Radio Transmission: Bluetooth Low Energy: RMBLEC, up to 16.4 ft. / 5 m;

Mesh: RM900A, 984 ft. / 300 m (868-900 MHz) or RM2400, 492 ft. / 150 m (2.4 GHz );Wi-Fi: RMWIFIC, up to 164 ft. / 50 m;

Outdoor Locations: GPS receiver module: GPS L1 frequency (1575.42 MHz) (optional);
Only with IEEE 802.15.4 868 MHz / 915MHz modem and WIFI
Safety Certifications: (Pending) cETLus Class I Division 1; Group A, B, C, D; T4;
I M1 Ex ia I Ma
II 1G Ex ia da IIC T4 Ga

For LELIR/CO2 sensor installed:
I M1 Ex ia I Ma
II 2G Ex ia da db IIC T4 Gb
1G Ex ia da IIC T4 Ga
Wireless Approvals: FCC Part 15, IC, RE-D
ROHS (Pending): RoHS Complaint, Directive (EU) 2015/863
Noise Sensor: 60-125 dBA range; (respond: 100 Hz to 8 kHz), 1 dB resolution;

A-weighted 15 second equivalent level; updated every 5 seconds
