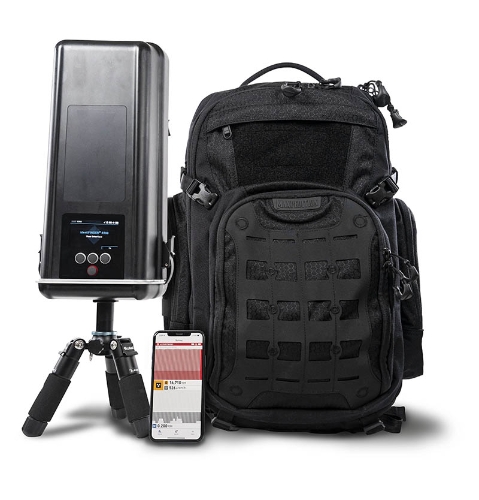

identiFINDER R700 Backpack Radiation Detector
The identiFINDER R700 Backpack Radiation Detector (BRD) offers a hands-free capability for broad-area radiological search and monitoring missions. The identiFINDER R700 provides the user all that is required to successfully perform wide-area searches quickly, efficiently and confidently. Providing the ultimate versatility, the identiFINDER R700 can be placed for stationary monitoring at makeshift checkpoints, fence-line monitoring, and other temporary screening locations. When coupled with radiation monitoring software, the identiFINDER R700 can be used as a fixed-site monitoring tool.
Interrogate And Isolate Radiological Threats Quickly
Building on the award-winning identiFINDER R440, the R700 offers an advanced spectroscopic algorithm and detection techniques scaled up to a man-portable backpack for increased sensitivity and speed.
- Detect harmful neutrons with NaI or count them with our dual-mode NaIL detector without the need for an additional neutron detector
- Large 2” x 4” x 8” detector allows for rapid detection and identification of even the smallest radiation sources; source-less “quantum gain” stabilization improves data collection, reducing false positives
- 360° EasyFinder mode collects and interprets data to pinpoint radiation at the source, enabling faster location of threats
Deploy At The Scene Or On The Move, Covertly
The R700’s capabilities configured as a backpack or a stationary device allow multiple mission sets from wide area searches to temporary check points.
- Ergonomic design for all day operator wear- the long battery life and balanced load are designed for extended missions
- Unmarked backpack form-factor and mobile phone-based user interface allow operators to detect radiological threats covertly, even in a crowd
- Included tripod mount enables stationary deployment for remote radiation monitoring. The rugged and weatherproof IP67 design operates in the harshest weather conditions
Share Intelligence Broadly, Or Operate Silently
Providing critical information to decision makers quickly is essential. The R700 provides the capability to do so in real-time and on demand.
- Ability to monitor and control remotely using the Mobile App (iOS (available), Android (future))
- Built-in wireless communications and a robust API enable integration with user-deployed networks. ANSI N42.42 data output is standard for easy integration
- Tethered-display versions will provide a radio silent (air-gapped) option for highly sensitive missions
identiFINDER R700 Backpack Radiation Detector
| Technology: |
Backpack Radiation Detector (BRD) |
| Threats: |
Detects gamma and/or neutron radiation emitted from natural occurrences in the environment, special nuclear material,industrial, or medical material |
| Technology |
| Detector: |
2 x 4 x 8” NaIL™ (NaI:Tl, Li) gamma-neutron or 2 x 4 x 8” NaI(Tl) gamma-neutron indication |
| Typical Resolution: |
≤8.5% FWHM at 662 keV (20 °C) |
| Stabilization: |
Sourceless “Quantum gain” stabilization (patents pending) |
| Energy Range [Gamma]: |
10 keV to 10 MeV (All detectors) |
| Dose rate range (Cs-137): |
0.001 mrem/h - 10 rem/h (0.01 - 100,000 μSv/h) |
| Dose rate range ID mode (Cs-137): |
0.001 - 0.5 mrem/h (0.01 - 5 μSv/h) |
| Dose rate overload range (Cs-137): |
0.002 - 10 rem/h (20 - 100,000 μSv/h) |
| Gamma Sensativity (Cs-137): |
165,000 cps/mrem/h (16,500 cps/uSv/h) |
| Neutron Sensativity: |
90 cps/nv |
| Linearization: |
Real-time linearization of gamma energy |
| Service Interval: |
5 year factory maintenance recommended, not required |
| Standards Compliance: |
ANSI N42.53 BRD standard fully compliant
ANSI N42.42 data format fully compliant
IEC 62694 backpack standard fully compliance
IEC 62706 BRD environmental compliant
IEC 62755 data format fully compliant
|
| Sampling & Analysis |
| Library Categories: |
SNM, SNMR, IND, MED, NUC, NORM, UKN |
| Nuclide Identification: |
Exceeds ANSI N42.53 |
| Sample Introduction: |
Absorption of EM gamma (NaI) or gamma and neutron emissions (NaIL) |
| Time to Alarm: |
From a few seconds to minutes |
| Time to ID: |
Depends on gamma exposure; typically < 2 min |
| Environmental |
| Operating Temperature: |
-4 to 122 °F |
| Operating Humidity: |
10 to 100% non-condensing (IP67) |
| Storage Temperature: |
-4 to +104 °F |
| Protection Rating: |
IP67 according to IEC 60529 (3.3’ (1 m) submerged) |
| System Interface |
| Communication: |
USB 2.0, USB OTG; Bluetooth® Class BLE 4.0 and 2.1 with EDR ≤30m range (can be disabled at manufacture) |
| Data Storage: |
32GB internal memory |
| GPS (removable): |
72-channel u-blox M8 engine |
| Software: |
On-board web server software |
| Training Requirements: |
<10 mins for operator; 1 day for advanced user |
| Power |
| Battery Specs: |
2x rechargeable Li-Ion smartpacks (hot-swappable)h runtime per Li-Ion smartpack;
> 9 h runtime with single battery pack
> 18 h runtime with dual batteries |
| Input Voltage: |
100-240V AC (wall adapter and USB cable supplied) |
| Cold Start Time: |
<5 mins from cold start |
| Physical Features |
| Enclosure and Protection: |
Impact resistant plastic; protection rating IP67 according to IEC 60529 |
| Dimensions [L x W x H]: |
≤17 x 12 x 20 in |
| Weight: |
≤22 lbs (≤10 kg) |
