SkyWatch Mobile Surveillance and Deterrence Tower

There are no reviews yet. | Write a review
Item #: 4231
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
Options:
Update price
Qty:
View additional buying options
Product Details

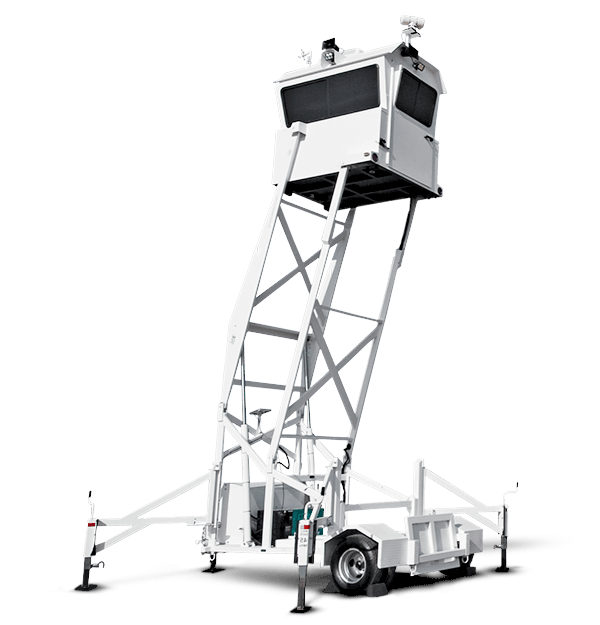

SkyWatch Mobile Surveillance and Deterrence Tower

Rising over two stories, SkyWatch is a rugged, highly reinforced mobile surveillance platform with arching ascend that can withstand 60 mph winds while keeping the operator safe, comfortable, and focused. Portable and rapidly deployable, it provides a strategic perspective and deterrent. Customize payload with pan-tilt IR, night vision, visible light cameras, in-cab controls, ground radar, monitors, Network Video Recorder (NVR), and searchlights.

Operators have 360° visibility from an ergonomic command desk in the temperature-controlled cabin. Optional public address system, full-function siren, and roof-mounted, high-powered searchlights with internal pan/tilt control allow operators to alert ground support and crowds of an immediate threat. Wireless video streaming and remote control allow operators to take advantage of the elevated perspective without sitting in the cabin. More than 1,000 SkyWatch systems have been delivered globally.

Features:

  • Rapid Deployment and Full Portability - Towable practically anywhere, one trained person can deploy SkyWatch in minutes, safely raising it in about 90 seconds.
  • Powerful Multi-sensor Capability - All PTZ thermal/day or day/night cameras available and fully integrated into cab along with a 24” monitor, in cab controls and NVR. Wireless connectivity is also offered.
  • Flexible Display Views - Full screen, split-screen display, and two fields-of-view within SkyWatch cab monitor as well as remote streaming video and camera control.
  • Temperature-Controlled Tower - Keep operator comfortable, protected against up to 60 mph gusts, and engaged in active surveillance
  • See, Find, and Document Efficiently - Payload options include fixed or pan-tilt IR, night vision, visible-light cameras, ground radar, NVR, and searchlights.

SkyWatch Mobile Surveillance and Deterrence Tower

Product Specifications

Two Person Cab

Height – Transport (Tow)* 10’ 10”
Height – Transport (Truck) 9’ 5”
Width – Transport 8’ 2”
Length – Transport 24’ 7”
Max Height (Excluding Cameras) - Cab Deployed 30’ 6”
Width – Outriggers Deployed 19’ 0”
Approx. Gross System Weight (lbs) 11,490
Approx. Tongue Weight (lbs) 1,880

Standard Features

AC and heating for operator comfort
LED floodlights on every side
Under cab safety camera
Strobe light and descent alarm
Tinted windows
Command desk
Digital windspeed meter
Generator, shore power, and fuel tank
12 months parts & labor warranty

Additional Options

Thermal and day PTZ cameras with in-cab control, 24” monitor, and network video recorder (NVR)
Wireless video streaming and remote control
Ground surveillance radar
Public address system with 100-watt speakers and full-function siren
Roof-mounted, high-powered searchlights with internal pan/tilt control
Service maintenance plans and extended warranties

Trailer Components and Contents

2 5/16 Ball Standard
16K Single Axle 17.5” Dual Whee Standard
Dual Pump Hydraulic Lifting System Standard
Hydraulic Reservoir (Gallons) 9

Generator Specifications

Generator Options: Diesel with 78 Gallon Tank OR Gasonline with 20 Gallon EVAP Tank
Approx. Diesel Generator Run Time 5 Days
Approx. Gas Generator Run Time 24 Hours
Shore Power Standard

Officers Compartment & Contents

Cab Width – Interior 4’ 7”
Cab Length – Interior 6’ 7”
Cab Height – Interior 6’ 5”
Cab Max Additional Weight (lbs) 3,100
Window Type Tinted: 3 Sliding, 1 Fixed
Descent Camera and Alarm Standard
Blue Strobe Light Standard
Digital Winder Speed Meter Standard
Led Flood Lights (4) Standard
15K BTU Air Conditioner Standard
Swivel Chair 2

SkyWatch Mobile Surveillance and Deterrence Tower

4231309-201 INTERMEDIATE BUNDLE PACKAGE (GAS)
• SkyWatch Two Person (GAS) Model
• FLIR PT 617 HD Thermal/CCD, 35 mm, NTSC PTZ Camera including NVR, 24" Monitor, Joystick and Integration
• 3 Additional FLIR Day/IR Staring Cameras including integration
• PA System
• Roof Mounted Spot Lights (2)
4231308-201 INTERMEDIATE BUNDLE PACKAGE (DIESEL)
• SkyWatch Two Person (Diesel) Model
• FLIR PT 617 HD Thermal/CCD, 35 mm, NTSC PTZ Camera including NVR, 24" Monitor, Joystick and Integration
• 3 Additional FLIR Day/IR Staring Cameras including integration
• PA System
• Roof Mounted Spot Lights (2)
4231311-201 ADVANCED BUNDLE PACKAGE (GAS)
• SkyWatch Two Person (GAS) Model
• FLIR PT 606 HD Thermal Continous Zoom/CCD, 35 mm, NTSC PTZ Camera including NVR, 24" Monitor, Joystick and Integration
• FLIR Day/Night All Weather Dual PTZ Cameras
• 3 Additional FLIR Day/IR Staring Cameras including integration
• PA System
• Roof Mounted Spot Lights (2)
4231310-201 ADVANCED BUNDLE PACKAGE (DIESEL)
• SkyWatch Two Person (Disel) Model
• FLIR PT 606 HD Thermal Continous Zoom/CCD, 35 mm, NTSC PTZ Camera including NVR, 24" Monitor, Joystick and Integration
• FLIR Day/Night All Weather Dual PTZ Cameras
• 3 Additional FLIR Day/IR Staring Cameras including integration
• PA System
• Roof Mounted Spot Lights (2)

SkyWatch Mobile Surveillance and Deterrence Tower

SkyWatch Mobile Surveillance and Deterrence Tower
