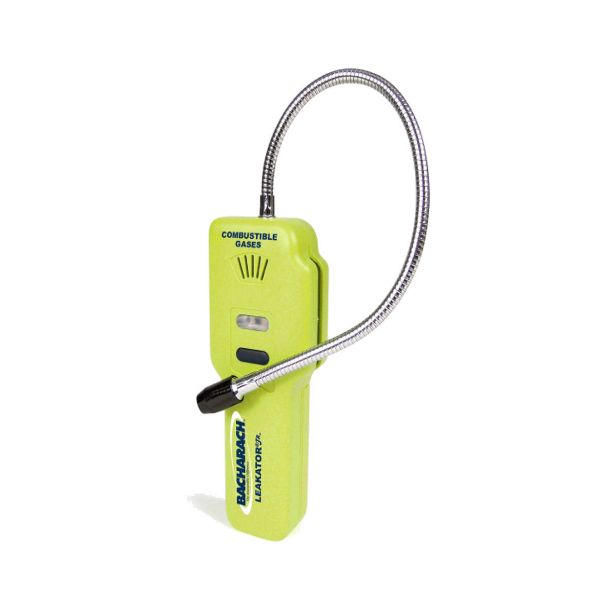

Leakator Jr Combustible Gas Leak Detector
The Bacharach Leakator Jr is an ideal budget instrument for pinpointing combustible gas leaks in a number of residential, commercial and industrial applications, including gas pipeline surveying and valve, regulator and gas meter inspection. It uses a long-life (5 years typical) sensor and is easy to operate with one hand, giving you a dependable, easy-to-use tool.
The Leakator Jr has a long, flexible neck for detecting leaks in hard-to-reach areas, an LED and audible sound for confirming the presence of leaks, and an automatic balance feature for finding leaks in backgrounds where target gas is present. It is UL 913 certified for hazardous locations, and comes with a 2 year warranty including sensor.
Features and Benefits:
- Detects all combustible gases with excellent sensitivity and no calibration required
- Sensor located in the probe tip for ultimate sensitivity, fast response and easy changing
- Simple visual and audible indicators for clear leak identification
- Compact and ergonomic design with simple one-button operation ideal for one-handed operation
- Automatic self-check occurs during warm-up when instrument is turned on in fresh air
- Relative concentration of the gas present is indicated by the frequency of audible and visual alarms
- High and low sensitivity mode selectable by a double press of the On/Off button
- Pinpoint concentrations as small as 20 ppm in the high-sensitivity mode
- Low power plug-in sensor and quick sensor replacement
Leakator Jr Combustible Gas Leak Detector
| Gases: |
Acetone, Acetylene, Benzene, Butane, Ethanol, Ethylene Oxide, Gasoline, Hexane, Hydrogen, Industrial Solvents, Isobutane, Methane, Methanol, Naphtha, Natural Gas, Paint Thinners and Propane |
| Warm-up Time: |
Automatic Self-Check, Approximately 60 seconds to Operational Condition |
| Sensitivity (Methane-Based): |
20 ppm in High-sensitivity
Mode 50 ppm in Low-sensitivity Mode |
| Deminsons: |
6” × 2” × 1.5” (15.3 cm × 5 cm × 3.8 cm) |
| Weight: |
6 oz (0.17 kg) with Batteries |
| Body Materials: |
Durable ABS Housing |
| Sensor: |
Low Power Metal Oxide Sensor |
| Status Indicators: |
Visual - 1 Ultra-Bright Variable Frequency LED
Audible - Variable Speed Ticking Sound. Power-On Flashing Green, Power-Off Solid Red. Ready Condition Flashing Green (Low Frequency) |
| Operating Temperature Range: |
32° to 104° F (0° to 40° C) |
| Operating Humidity Range: |
15% to 70% Relative Humidity, Non-Condensing |
| Power: |
4 × AA Alkaline Batteries (Included), 14 Hour Typical Battery Life |
| Approvals: |
UL 913 Classified, Intrinsically Safe for Class I, Division 1, Groups A, B, C and D Hazardous Locations; CE Mark |
| Warranty: |
Two Year Full Warranty on Instrument |
