Mark II External Pump for X-am Gas Detectors

There are no reviews yet. | Write a review
Item #: 8327115
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
View additional buying options
Product Details

Mark II External Pump for X-am Gas Detectors

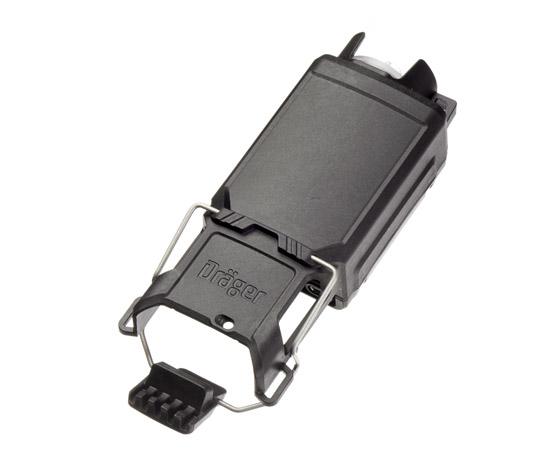

The X-am Mark II pump is an attachable external pump designed to be used with the Draeger X-am 2500, 5000, and 5600. The pump automatically switches on when it is connected to a running X-am device. With a range of up 45 meters (47 ft.), the pump is ideal for drawing gas samples during confined space work.

The Draeger X-am pump is dust and water resistant according to the IP67 protection classification. The rechargeable battery is solid cast to protect against damage due to dropping or impact. With a continuous runtime of up to 20 hours, the battery can be charged using the micro USB port and standard cell phone charger.

Pump operating time, charge status, battery warnings, and flow alarm are displayed on the Draeger X-am and stored in the data logger.

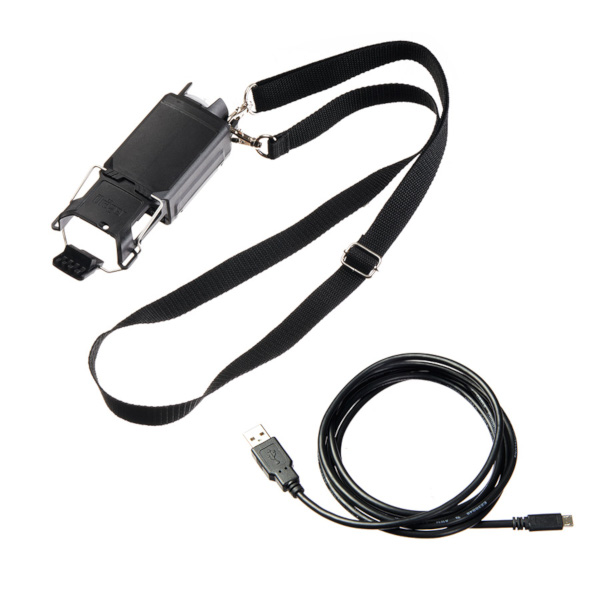

Kit Includes:

  • Pump
  • USB Charger
  • Wall Plug
  • Shoulder Strap

Mark II External Pump for X-am Gas Detectors

Dimension: 67 x 175 x 38 mm (without X-am®), 67 x 220 x 55 mm (with X-am)
Weight: approx. 200 g
Operating Temperature: -20 °C to 50 °C (briefly -40 °C)
Temperature when Charging: 0 – 35 °C
Charging Time: < 6 hours
Operating Time: up to 20 hours, depending on type of application and temperature
Maximum Hose Length: 45 m
Air Flow Volume: 0.4 L/min
Storage Temperature: Up to 1 month -20 °C to 60 °C, otherwise -20 °C to 45 °C
Pressure: 700 to 1,300 hPa
Air Humidity: 0 to 95 % RH
IP Protection Class: IP67
Approvals: c_CSA_us, ATEX/IECEx (Zone 0 T4 and M1), DNV-GL, CE label

Mark II External Pump for X-am Gas Detectors
