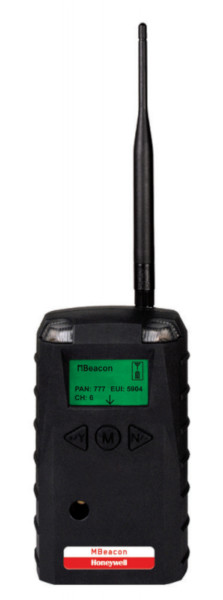

MBeacon Location Enhancer for the ConneXt Pro System

There are no reviews yet. | Write a review
Item #: MBeacon
MFG: Honeywell
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
View additional buying options
Product Details

MBeacon Location Enhancer for the ConneXt Pro System

The Honeywell ConneXt Pro System is an Enterprise-level, comprehensive portable wireless gas monitoring solution that brings a new dimension of safety and productivity to the plant. The ConneXt Pro system leverages wireless connectivity from portable gas monitors to relay, display, and inform key stakeholders of gas and physiological alarms being experienced by field operators. The Honeywell MBeacon is an integral component of the Honeywell ConneXt Pro system, used for determining the location of a wireless gas monitor. The MBeacon is battery powered and does not require a network connection, making deployment, installation, and maintenance easy and very low cost.

Features & Benefits:

  • 1-year battery run time w/ remote low-battery notification
  • No network configuration
  • Factory configured for "plug-and-play"
  • Cl I/Div 1 hazardous location approvals
  • FCC and R&TTE wireless communication approvals
  • Flexible - Quantity is dependent on location resolution needs
  • Easy Installation
  • Easy Maintenance

Applications:

  • Exploration
  • Hazmat response
  • Plant shutdown & turn-around
  • Worker exposure

MBeacon Location Enhancer for the ConneXt Pro System

Specifications
Size: 10.5” L x 3.7” W x 2.1” H
Weight: 1.3 lbs
LED Indicator: Normally disabled. Flashes once every 10s when battery is low. Modem reports to ProRAE Guardian until auto shut-down
Power Sources: Battery Powered - Size D primary Lithium-cell battery
Battery Runtime: 12 months at room temperature
Operating Temperature: -40° C to +50° C
Storage Temperature: -40° C to +85° C
Humidity (Non-Condensing): 10% to 90% relative humidity
Pan ID: 1-999, configurable
Environmental Ratings: IP65
Radio Type RM900
RF Output Power Up to 14 dBm (25mW) EIRP
RF Receive Sensitivity: -110dBm
Frequency Band: 802.15.4
Channels Configurable, 0 to 10
Wireless Certs: FCC Part15, CE R&TTE, Contact RAE Systems for country specifi c wireless approval
Hazloc Certs: US and Canada: Class I, Division 1, Groups A, B, C and D, T4
Europe: ATEX IM1/II 1G Ex ia I/IIC T4
IECEx Ex ia I/IIC T4
Mounting: Optional stainless-steel bracket mount or magnetic mount
Wireless Operating Range: Up to 100m to wireless portable devices, line of sight
