PAS Lite Industrial SCBA

There are no reviews yet. | Write a review
Item #: 404619
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$1,062.00
Configuration:
Update price
View additional buying options
Product Details

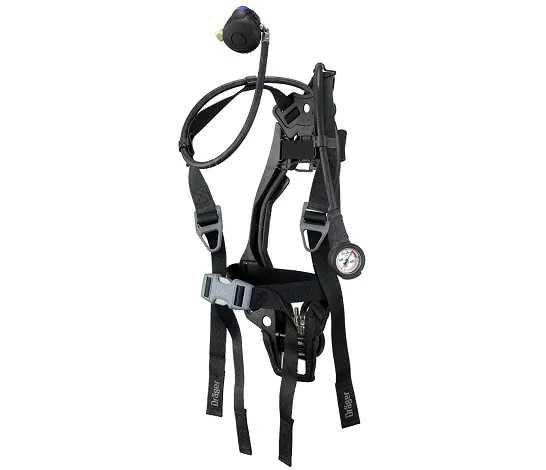

PAS Lite Industrial SCBA

For use in industrial applications where a simple, robust, and easy-to-use breathing apparatus is required, the Draeger PAS Lite Self-Contained Breathing Apparatus (SCBA) combines reliability with comfort and performance.

Advanced Technology

The Draeger PAS Lite ensures consistent high-performance and reliability over the lifetime of the apparatus with minimal maintenance. The carrying system features an ultra lightweight, high-strength carbon composite space-frame, having excellent impact, heat, and chemical resistance, as well as outstanding durability.

Efficent load distribution

Incorporating new materials that are shaped and formed to provide maximum comfort at both the shoulders and the waist, the carrying system has been developed to reduce back strain, stress, and fatigue. The innovative harness design ensures excellent weight distribution at the shoulders. The inclusion of durable, rubber-coated fabric provides excellent wearing comfort and chemical resistance, while also performing well during flame engulfment testing.

Integrated hose design

Both the air supply and gauge hoses are mounted into the space-frame, thus reducing the risk of snagging and entanglement. This enables the user to change the hose position from one side to the other to suit individual preference. The fully-integrated hose design also means that hoses can be replaced easily and cost effectively.

Service friendly

A number of unique design features ensure that downtime and costs are kept to a minimum during repair and maintenance. All major components of the Draeger PAS Lite are quick and easy to assemble and disassemble, including the harness, which is attached to the space-frame by a simple single-piece retention method. The reducer is contained in the space-frame for added protection and can easily be removed with simple tools. The harness is also highly resistant and impervious to chemicals, making decontamination and cleaning a simple, straightforward task.

Proven, robust, and flexible

The Draeger PAS Lite allows users to take advantage of the tried and tested systems that lie behind the best breathing apparatus in the world. Developed as a result of years of research and extensive user consultation, these benefits include the use of the same advanced pneumatics as used in the whole professional firefighting range of Draeger.

PAS Lite Industrial SCBA

Dimensions (HxWxD): 23.2 x 11.4 x 6.3 inches (59 x 29 x 16 cm)
Weight (including LDV): 5.95 lb. (2.70 kg)
Weight with Integrated PAS ASV (including LDV): 7.72 lb. (3.50 kg)
Input pressure: 2,216-4,500 psi
Nominal 1st stage output pressure: 87-130 psi
1st stage output flow: >1000 L/min
LDV output flow: >400 L/min
Whistle activation pressure: 554–1,125 psi
Whistle sound level: >90 dBa
Approvals: NIOSH

PAS Lite Industrial SCBA
