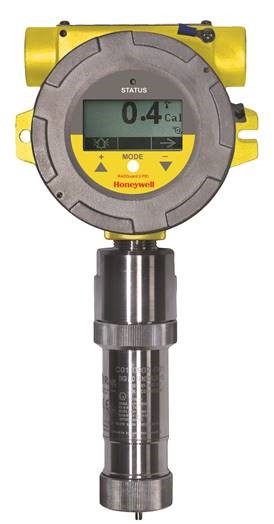

RAEGuard 2 PID Fixed Gas Detector
The RAEGuard 2 PID is a fixed photoionisation detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analog (4-20mA) three-wire signal output, and RS-485 Modbus digital signal output. Calibration and maintenance have been greatly simplified as the digital PID sensor module can be easily removed in hazardous locations without tools for calibration or maintenance.
Key Features:
- Class I, Division 1 (Zone 1) continuous VOC monitoring solution for hazardous locations
- Three wire 4-20mA analogue output and RS-485 digital communication in Modbus protocol
- Three dry contact relays (<30V, 2A) normally open (or normally closed), one for high and low alarm, another for fault alarm
- Explosion-proof stainless-steel enclosure suitable for outdoor hazardous environment applications
- Magnetic-key interface eliminates the need to open the explosion-proof housing when adjusting parameters
- Continuous VOC monitoring in hazardous and non-hazardous area locations
- Reduced maintenance costs due to easily removable sensor module. Sensor and lamp can be removed without tools and serviced in hazardous locations
- Faster response time with sample flow-through design powered by internal diaphragm pump
- Humidity compensation ensures accurate readings even in humid environments
RAEGuard 2 PID Fixed Gas Detector
| RAEGuard 2 Fixed Sensor Head Specifications |
| Basic Parameters: |
| Working Current |
DC 10 to 28V, 210mA at 24V |
| Power |
<5W |
| Output |
4-20mA
Three-level programmable alarm relays (30 VDC, 2A)
RS-485 (Supports Modbus) |
| Sampling |
Internal diaphragm pump, up to 500cc/min |
| IP Rating |
IP-65 |
| Mechanical Interface |
3/4” NPT Male |
| Installation |
50.8 mm (2”) pipe-holding or wall mounting |
| User Interface |
Three-key magnetic bar adjustment |
| Calibration |
Two points |
| Warranty |
1 year for the pump
2 years for the housing and electronics |
| Environmental Parameters: |
| Temperature |
-20°C to +55°C (-4°F to 131°F ) |
| Humidity |
0 to 95% relative humidity, non-condensing |
| Pressure |
90 to 110kPa |
| Display: |
| Display |
128 x 64 matrix backlit LCD, supports graphic display |
| Physical Parameters: |
| Size |
10.1” L x 7.9” W x 4.2”H (257 x 201 x 107 mm) |
| Weight |
3.5 kg (7.7 lbs) |
| Material |
316 stainless steel |
| Certifications: |
| ATEX |
Ex II 2(1)G, Ex d [ia Ga] IIC T4 Gb |
| UL/CSA |
Class 1, Div. 1, Groups ABCD T4 |
| IECEx |
Ex d [ia Ga] IIC T4, Gb |
| DigiPID Sensor Module
|
| Power Supply |
5V ±0.25V DC |
| Current |
110mA max |
| Power Consumption |
< 0.6W |
| Measuring Range |
0.01 to 100 ppm (H-D03-0012-000)
0.1 to 1000 ppm (H-D03-0010-000)
1 to 1000 ppm (H-D03-0009-000) - No relays or correction factors
|
| Resolution |
10 ppb, 1 ppm (depends on model) |
| Response Time |
Pumped (T90): <30 s |
| Calibration |
Two-point off-line and field calibration
Optional three-point calibration |
| Accuracy |
±2% for calibration point |
| Analog Output |
0.5 - 2.5V (ro=1.0k) |
| Digital Interface |
Serial Interface (UART)
Transmit (Tx): 3.3 V TTL
Receive (Rx): 3.3 V TTL |
| Warranty |
2 years for the lamp
1 year for the sensor, pump, electronics, and housing |
| Operating Temperature |
-20ºC to +55ºC (-4ºF to +131ºF) |
| Humidity |
0 to 95% RH non-condensing |
| EMI/RFI |
Highly resistant to EMI/RFI Compliant with EMC Directive 2004/108/EC |
| Package |
316 stainless steel
Spray watertight for IP-65 rating
Dust membrane for sensor front protection |
| Size |
49mm x 150.8mm (1.92” D x 5.94” L) |
| Weight |
< 550g (19.4 oz) |
| Certifications: |
| ATEX |
II 1 G EX ia IIC T4 and 1M1 Ex ia I |
| UL/CSA |
Class I, Div. 1, Groups A B C D T4 |
| IECEx |
Ex ia IIC T4 Ga and Ex ia I |
RAEGuard 2 PID Fixed Gas Detector
Includes:
- RAEGuard 2 PID Fixed Head
- DigiPID Sensor Module
- Magnetic Key
- Hex Service Tool
- 5 Pack of External Water Trap Filters
- User Manual
- Calibration Certificate
Applications:
- Refineries and petrochemical plants
- Power plants
- Solvent recovery systems
- Painting and coating operations
- Waste water treatment plantsAir quality
Warranties:
- 2 Years on Lamp
- 1 Year on Sensor (Lifespan is 2 years)
- 1 Year on Electronics
- 1 Year on Pump
RAEGuard 2 PID Fixed Gas Detector
