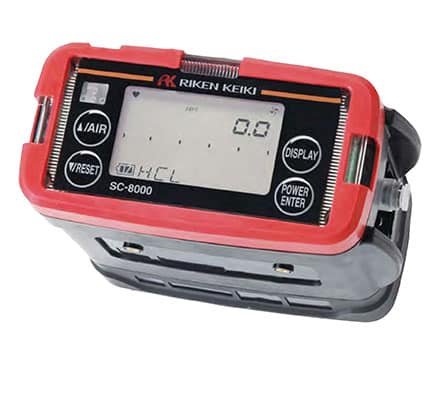

SC-8000 Toxic Gas Monitor
The SC-8000 sets the new industry standard for rugged, reliable portable toxic gas detection. Featuring a compact, lightweight, durable, waterproof, and intrinsically safe design, the SC-8000 accurately detects gas leaks in toxic gas detection applications.
Features:
- Realtime detection with PPM range
- Large digital and bar graph display with back light
- Monitor vaporized hydrogen peroxide (VHP) fumigation and disinfection
- Loud alarm buzzer, 95dB
- 2 step adjustable alarm volume
- Easy an simple operation
- Compact size and lightweight
- ATEX intrinsic safe design Exia IIC T4
- Water and dust resistant IP67
- Ergonomic design with waist strap for hands free operation
- Datalogging standard
Applications:
- Semiconductor, LED, Solar Cell plants
- Petrochemical, Chemical Plants
- Medical, Pharmaceutical, Food Industry H2O2 Disinfection
- Refineries
- Gas plant, Gas supplier services
- Chemical tanker
- Confined space
- Utlilities
- Monitoring toxic gas in hazardous zone
- Ergonomic design with waist strap for hands free operation
SC-8000 Toxic Gas Monitor
| Sensor Type |
Electrochemical |
| Alarm Types |
Gas Alarm: Latching, 2 alarm
Failure Alarm: Flow failure, sensor failure, battery failure, circuit failure, calibration failure, setting current failure
|
| Alarm Display |
Lamp: LED’s flash
Buzzer: Alternating high and low pitch (gas alarm), Continuous sound (failure alarm)
Display: Gas concentration on the display flashes (gas alarm), Alarm message on display flashing (failure alarm)
|
| Audible Alarm |
95dbB (A) at 30cm |
| Sampling Method |
Sample Draw, approx. 0.5L/min |
| Display |
Digital LCD with auto backlight
Digital display (7 segments) + digital bargraph (50 segments)
|
| Power Source |
Lithium-ion battery (3 hours charge time)
AA Alkaline battery (3 pcs)
|
| Continuous Operation |
Lithium-ion battery: 25 hours
AA Alkaline battery: 18 hours
|
| Temp/Humidity |
-10 ~40ºC, Humidity 20~88% RH (without condensing) |
| Size |
154(w) x 81(h) x 164(d)mm, weight: approx. 1.1kg (with BUL-8000 |
| Ingress Proof Rating |
IP-67 |
| Explosion Proof |
Intrinsically safe; Exia IIC T4 |
| Approvals |
IECEx, ATEX, TIIS, CE mark |
| Additional Features |
- Self diagnosis system
- Zero/Span adjustment (deman zero/auto zero selectable)
- Indication to show energizing (pilot indicator and pump driving indicator)
- IrDA communication, Data logger (interval, alarm trend, station ID control)
- Peak value/Average value display, buzzer selector switch (2 steps high/low)
- Bump test function
|
