Sensepoint XCD Fixed Gas Detector Transmitter

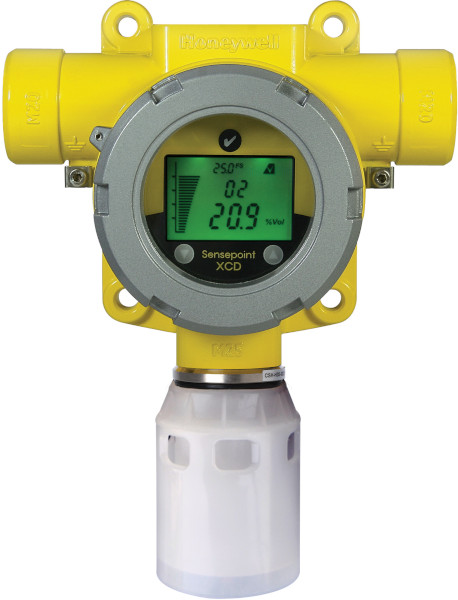

The Sensepoint XCD explosion-proof transmitter from Honeywell Analytics is a fixed monitoring solution for combustible, toxic, or Oxygen gas hazards to be used in potentially explosive atmospheres, either indoors or outdoors. Remote monitoring capabilities allow remote sensor mounting up to 100 ft away from the transmitter.

Sensepoint XCD sensors simply plug into the bottom of the transmitter and are configured automatically. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit, helps to reduce routine maintenance time and costs.

A tri-color backlit LCD clearly indicates the unit’s status at a glance, even from a distance. A steady green backlight indicates normal operation, flashing yellow indicates fault and flashing red indicates an alarm.

All detectors are supplied pre-configured and include two programmable alarm relays, one programmable fault relay as well as an industry standard 4 - 20mA output (sink or source selectable) and MODBUS communication. The scale, range, relay operation, alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment, thereby reducing the risk of false alarm at the control panel during maintenance.


  • User friendly and intuitive tri-color backlit display with digits, bar graph and icons
  • Flammable (catalytic or infrared), toxic and oxygen versions available
  • Stainless steel or aluminum explosion-proof housing options
  • IP66 as standard
  • SurecellTM electrochemical sensors
  • Poison immune infrared sensors & poison resistant catalytic bead sensors
  • Long life sensors
  • Optional remote sensor mounting
  • MODBUS communications for remote diagnostics/configuration
  • Fully configurable via magnetic switches


  • US and Latin America, European, Canadian and Asian
  • Compliant with UL, INMETRO, ATEX, IECEx, CSA, KTL, PA, GB and CCCF standards

Sensepoint XCD Fixed Gas Detector Transmitter

Use 3 wire, 4-20mA and RS485 MODBUS output fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and Oxygen hazards. Incorporating a transmitter with local display and fully configurable via non-intrusive magnetic switch interface.
Input Voltage Range 16 to 32VDC (24VDC nominal)
Max Power Consumption Maximum power consumption is dependent temp-on the type of gas sensor being used. Electrochemical cells = 3.7W, IR = 3.7W, and catalytic = 4.9W. Maximum inrush current = 800mA at 24VDC
Current Output Sink or source
Relays 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energized (programmable)
Alarm relays default normally open/de-energized. Fault relay default normally open/energized
Communication RS485, MODBUS RTU
Material Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel
Sensor: 316 stainless steel
Weight (approx) Aluminium Alloy LM25: 4.4lbs
316 Stainless Steel: 11lbs
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal)
Cable Entries UL\cUL versions: 2 x ¾"NPT conduit entries. Suitable blanking plug supplied for use if only 1 entry used. Seal to maintain IP rating; ATEX/IECEx versions: 2 x M20 cable entries
IP Rating IP66 in accordance with EN60529:1992
Certified Temperature Range 40ºF to +149ºF (-40ºC to +65ºC)
