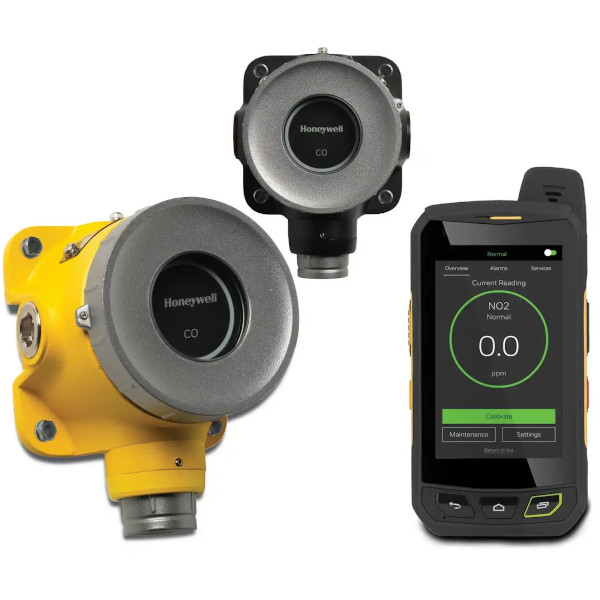

Sensepoint XRL Bluetooth Fixed Gas Detector
Sensepoint XRL is a fixed point gas detector with Bluetooth that allows the user to connect the gas detector to a smartphone or tablet running the Sensepoint gas detector app. Sensepoint XRL is available as a flammable gas detector for the detection of potentially explosive gases, or as a toxic gas detector for the detection of a range of toxic gas hazards commonly found in industrial applications.
The Sensepoint XRL is designed with simple and quick installation in mind. And for initial calibration, all you need is our Sensepoint App on your smartphone and a cylinder of calibration gas — no need for walkie-talkie guidance with the control room. Use the Sensepoint App to create a profile for the detector, choose alarm set points, run test procedures and automatically generate a commissioning report, which you can send from your phone to other stakeholders or store for easy access in a safety inspection.
Sensepoint XRL's smartphone-based experience significantly reduces the time you spend on gas detector maintenance. The detector has bright indicator lights visible from a distance, making it easy to locate a detector requiring maintenance. And the Bluetooth connection is non-intrusive so there is no need for a hot work permit.
Features:
- Quick installation
- Rapid configuration
- Simple to operate
- Straightforward to maintain
Sensepoint XRL Bluetooth Fixed Gas Detector
| DIMENSIONS |
118 x 159 x 93 mm
( 4.4 x 6.2 x 3.6 in ) |
| WEIGHT |
1400 g (3.1 lb) |
| CASING MATERIAL |
Aluminum alloy LM20 (charcoal or yellow) |
| INGRESS PROTECTION RATING |
IP66, NEMA 4X |
| LIFETIME |
10 years (excludes sensor) |
| FLAMMABLE, TOXIC GASES AND OXYGEN RANGES |
• Combustible: O to 100 LEL (adjustable between 20 and 100 LEL, Factory calibrated to Methane)
• O₂: 0 to 25 vol
• CO: O to 300 ppm (adjustable between 50 and 1000 ppm)
• H₂: O to 1000 ppm
• H₂S Low Range: 0 to 50 ppm (adjustable between 10 and 50 ppm)
• H₂S High Range: 0 to 100 ppm (adjustable
between 50 and 200 ppm) |
| DC INPUT VOLTAGE |
24 V DC† |
| AC INPUT VOLTAGE |
24 V AC‡, 50/60 Hz |
| INRUSH CURRENT |
850 mA |
| ANALOG OUTPUT |
0 to 22 mA |
| DIGITAL OUTPUT |
Modbus RTU |
| mA VERSIONS |
< 1.5 W (toxic), < 2.6 W (flammable) |
| MODBUS VERSIONS |
< 1.0 W (toxic), < 2.0 W (flammable) |
| TYPE |
Pluggable rising clamp style,
0.5 to 2.5 mm2, 20 to 13 AWG |
| VISUAL INDICATOR |
Multi-colour LED light ring
• Flashing green: Normal§
• Flashing red: Alarm
• Flashing green and yellow: Warning
• Flashing yellow: Fault
• Solid yellow: Inhibited
• Flashing blue: Bluetooth pairing in progress
• Solid blue: Bluetooth connection established |
| WIRELESS INTERFACE |
Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m (30 ft) away (mobile device dependent). Use a compatible smartphone or other mobile device running Android
4.3 or above. |
| OPERATING TEMPERATURE |
−40 to 65 °C (−40 to 140 °F) |
| STORAGE TEMPERATURE |
0 to 30 °C (32 to 86 °F) |
| HUMIDITY |
0 to 99 (non-condensing) |
| ATMOSPHERIC PRESSURE |
90 to 110 kPa |
| ELECTRICAL SAFETY |
EN/IEC/UL 61010-1
CSA C22.2 No. 61010-1-12 |
| EMC |
EN 50270:2015 |
| RADIO |
RED, FCC, IC |
| HAZARDOUS AREA |
• ATEX
II 2 GD
Ex db IIC T6 Gb
Ex tb IIIC T85 °C Db
Tamb −40 to +65 °C
• IECEx
Ex db IIC T6 Gb
Ex tb IIIC T85 °C Db
Tamb −40 to +65 °C
• cULus
Class I, Division 1 & 2, Groups B, C and D Class II, Division 1 & 2, Groups E, F and G Class I, Zone 1, AEx db IIC T6
Zone 21, AEx tb IIIC T85°C, IP6X
Ex db IIC T6 GbX
Ex tb IIIC T85°C DbX
Tamb −40 to +65 °C, Temp Code T6 |
| GAS PERFORMANCE |
CSA C22.2 No.152-M1984, UL 2075, AS 1668.2 |
