Sensit GasTrac LZ-30 Remote Gas Leak Detector

There are no reviews yet. | Write a review
Item #: 934-00000-01AS
MFG: Sensit
Min Order: 0
Order Qty: Must order in multiples of 1
$14,467.00 Was: $15,069.44
View additional buying options
Product Details

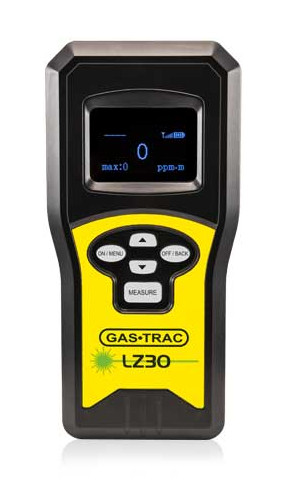

Sensit GasTrac LZ-30 Remote Gas Leak Detector

The GasTrac LZ-30 with SMARTLINK Live Application Via Google Play from Sensit Technologies is a compact methane-specific leak detector that provides fast and accurate readings at distances up to 100 feet. The LZ-30 utilizes TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology to provide instantaneous and accurate responses to the presence of methane gas.

Designed to be competitively priced, the LZ-30 is perfect for hard to reach areas, eliminating the need to directly access the gas plume, climb to elevated areas, or access fenced-in property, or other potentially hazardous situations.


  • Methane selective
  • Continuous detection
  • Adjustable alarm points (visual & audible)
  • Intrinsically safe design
  • Ergonomic design
  • Easy to maintain
  • Cal Cell integrated in carrying case
  • Rechargeable battery
  • Low cost of ownership
  • Industry Leading 2-year warranty(including battery)

Sensit GasTrac LZ-30 Remote Gas Leak Detector

Detector Specifications:

Detection Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
Methane Detection Range: 0-50,000ppm-m in 1ppm-m increments
Sensitivity: 5ppm-m ≤15m (50ft)/10ppm-m ≤30m (100ft) @ > 300ppm-m
Response Time: ≤0.1 seconds
Detection Distance: 0.5m to 30m (1.5’ to 100’)
Distance may vary depending on reflection
Distance Indicator: 0.2m to 30m (6” to 100’)
Range may vary depending on reflection
Beam Dimension: Conical, 20cm diameter at 30m (8” at 100’)
Alarms: Adjustable threshold alarm with baseline: Visual, audible, and tactile
Warnings: High/Low reflection, low battery
Calibration/Bump Test: Carrying case incorporates calibration/bump test cell.
Laser classifications: IR laser (methane detection) Class 3R

Target laser (green) Class 3R

Distance laser (red) Class 3R
Communication: Bluetooth. Supported by Android.
Display: OLED
Operational Temp: -20C to 50C (-4F to 122F)
Storage Temp: -40C to 60C (-40F to 140F)
Humidity: 5 to 95% non-condensing
Enclosure: Designed to meet IP54
Intrinsic Safety: Designed to meet US and ATEX
Weight: 300g (0.7lbs
Size: 164mm (6.5”) x 78mm (3.0”) x 36mm (1.5”
Power Source: Internal Lithium Ion
Battery Life: 6 Hours Continuous
Recharge Time: 3 to 4 Hours
Languages Supported: English, French, German, Italian, Polish, Spanish

Sensit GasTrac LZ-30 Remote Gas Leak Detector

Included with instrument:

  • Hard Carrying Case
  • Integrated Calibration/Bump Test Cell
  • Charger Base with Wall Transformer
  • Protective Boot
  • Wrist Strap
  • Instruction Manual

Sensit GasTrac LZ-30 Remote Gas Leak Detector
