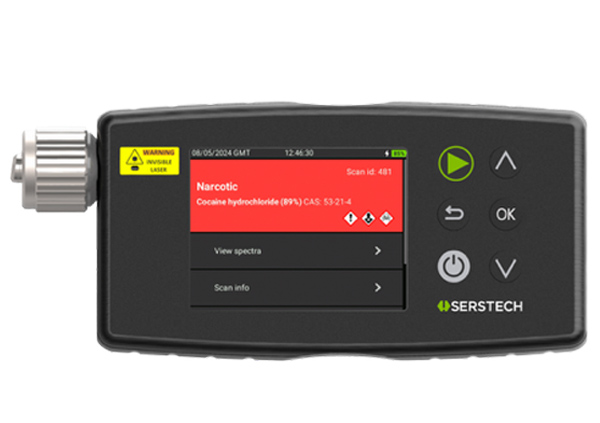

Arx mkII - Rugged Chemical Identifinder

There are no reviews yet. | Write a review

Item #: Arx-00

MFG: Serstech

Min Order: 0

Order Qty: Must order in multiples of 1

Quote Required

Configuration:

Update price

Qty:

View additional buying options

Product Details

Arx mkII - Rugged Chemical Identifinder

Serstech Arx mkII is a revolutionizing instrument. Serstech Arx mkII makes it easier to identify unknown substances and to take decisions.

Serstech and Arx mkII make it easy to do Surface Enhanced Raman Spectroscopy (SERS) to dramatically increase the Raman signal for narcotics, CWAs and bio toxins. The Arx mkII SERS attachment simply snaps onto the Arx mkII probe and it’s ready to do SERS measurements.

Serstech Arx mkII is built on a modern software platform, putting usability and algorithms in focus. The brand new graphical user interface is easy to navigate and new features such as Guided ScanTM and the Quick AccessTM feature make it possible to get precise results, faster. The Serstech Arx mkII is lighter and smaller compared to other models on the market and yet – even more powerful. Serstech Arx mkII lets users get focused on what is important and take decisions based on reliable measurement results – wherever they are.

Arx mkII now has new accessories including the Capillary Probe, TraSERSwab, Puncture Tool and SERSdock. Raman spectroscopy typically has a problem doing a point-and-shoot measurement on a spilled liquid; not so with the new Capillary Probe! The Capillary Probe draws a small sample - can be used on as little as 10 micro liters of liquid - and makes it easy to ID the liquid using QuickScan. TraSERSwab now gives SERS users the ability to check surfaces for residues of narcotics and CWAs. The Puncture Tool can be used by customs agents to punch into a wrapped bag to do direct Raman scan of the material inside. SERSdock allows transfer of a sample from Proengin’s S4PE sampler directly onto Serstech’s SERS accessory without having to take another sample.

Serstech's handheld Raman spectrometers are ideal for narcotics identification, and with the many available libraries capable of identifying more than 24,000 chemical compounds, they are also well-suited for HAZMAT identification.

Libraries:

Explosives - Includes military and civilian explosives, IEDs, precursors and oxidants.
Narcotics - Narcotic and psychotropic substances from the UN Yellow and Green lists, including precursors.
Hazardous Chemicals - Contains more than 2200 TICs (Toxic Industrial Chemicals) and other toxic or hazardous materials.
Chemical Warfare Agents - Blister, blood, nerve and choking agents, and their precursors.
Pharmaceuticals - Tailormade library developed for and together with pharmaceutical companies.
Bio Toxin Library

Key Features:

Autofocus
Intuitive user interface
Management and reporting software included
No consumables, no maintenance cost
Create libraries and add your own substances
Quick scan
Workflows
Barcode reader
5 year warranty

Configuration Options:

Arx003 - Arx mkII Includes one demo library and ChemDash Lite
Arx003-N - Arx mkII Narcotics Lite Package - includes Narcotics library and ChemDash Lite
Arx003-N-SK1 - Arx mkII Narcotics Standard Package - includes Narcotics library, SERS kit and ChemDash Lite
Arx003-NEH - Arx mkII NarcHaz Standard Package - includes Narcotics library, SERS kit and ChemDash Lite.
Arx003-NEH-SK1 - Arx mkII Narcotics Pro Package - includes Narcotics, Explosives & Hazardous Chemicals libraries, SERS kit and ChemDash Lite
Arx003-NEHC-SK1 - Arx mkII Hazmat Pro Package: includes Narcotics, Explosives, Hazardous, General Chemicals libraries, SERS kit and ChemDash Lite
Arx003-NEHCW-SK1 - Arx mkII Hazmat Commander Package: includes Narcotics, Explosives, Hazardous, General Chemicals, and Chemical Weapons Agents (CWA) libraries, SERS kit and ChemDash Lite
Arx003-NEHCWB-SK1-V1 - Arx mkII Hazmat CB Commander V1 Package: includes Narcotics, Explosives, Hazardous, General Chemicals, and Chemical Weapons Agents (CWA), Bio toxin libraries, SERS kit and ChemDash Lite
Arx003-NEHCWB-SK1-V2 - Arx mkII Hazmat CB Commander V2 Package: includes Narcotics, Explosives, Hazardous, General Chemicals, and Chemical Weapons Agents (CWA), Bio toxin libraries, SERS kit and ChemDash Lite.
Arx004 - Arx MkII+ (only for pharma industry)

Arx mkII - Rugged Chemical Identifinder

Instrument type	Handheld Raman spectrometer
Size	160 mm x 85 mm x 28 xx (6.2 x 3.3 x 1.1)
Laser excitation wavelength	785nm
Laser output power	Max 300 mW, user adjustable
Barcode reader	Yes, QR and most common barcode format
Max spectral range	400 cm-1 to 2 300 cm-1
Autofocus	Yes, 0-4 mm
Spectral Resolution	8-10 cm-1
Detector Type	Linear CMOS
Display	3.5” Transflective TFT with LED backlight, Night-vision mode
Internal Memory	More than 100,000 measurements
Data export formats	txt, .csv, .jcamp
Connectivity	USB-C
Battery	Rechargeable - more than 12 hours of typical use
Weight	590 g (1.3 lb)
Operating temperature	-20°C to +50°C (-4°F to 122°F)
Storage temperature	-30°C to +50°C (-22°F to 122°F)
Start-up time	Less than 20 sec. in room temperature
Relative humidity	5-90%
Scan time	Most substances less than 10 sec.
Exposure	Auto-exposure or manual exposure, 0.001 – 60 seconds.
MTBF	50 000 h
Approvals	CE, IEC 60529 IP67, MIL-STD-810G 514.6 (vibration), MIL-STD-810G 516.6 (functional shock), SWGDRUG category A compliant for presumptive testing, g, 21 CFR part 11 compliant (Instrument and ChemDash) ATAK
Software included	ChemDash Lite. Optional software: ChemDash Pro and ChemDash mobile (iOS and Android)
Included accessories	Vial holder, watertight case, protective cap with calibration target, sample vials, USB-C cable, AC adapter 5 VDC/1 A USB for charging
Optional accessories	SERS kit to identify low concentration and fluorescent samples
Optional libraries	Explosives, Narcotics, Chemical Warfare Agents, Hazardous materials, Pharmaceuticals, Biotoxins, User defined libraries. Total number of substances more than 24 000
Warranty	5 year. Additional warranty optional
Supported languages	Chinese, Danish, English, French, Indonesian, Italian, Japanese, Korean, Polish, Russian, Spanish, Swedish and Vietnamese. Additional languages on request.
Type of samples	Solid, liquids, powders and tablets
Mixture analysis	Yes
Deep scan	Enables identification of very small quantities within complex mixtures
Fluorescence reduction	Built-in algorithms reduce fluorescence interference from challenging substances
Delay function	Yes, 1 sec to 15 min
Features	Auto-focus, QuickScan, User authorization, Event logging, Scan delay, User-defined libraries, User-added substances and Night-vision mode
