Smart IR Med-Evac Landing Zone Kit

Smart IR Med-Evac Landing Zone Kit

Is your department or agency frequently setting up air ambulance rotary wing landing zones? The Rechargeable IR MedEvac Landing Zone Kit is designed to be plugged in and charging 24×7 365 days of the year. This ensures your LZ Kit it always ready to go when called into action.

With all the red, blue and white flashing lights at an emergency scene the pi-lit® Landing Zone kit LED’s stand out in stark relief as flashing green. This enables the pilot to immediately see the obstacle-free LZ site. Low profile units that do not get blown away by the copter’s rotowash like cones do.

pi-lit® LZ Kit includes 5 radio-linked flares with both visible and infra-red LEDs. The flares are placed at the corners of a 100 foot (30 meter) square with one placed outside to designate wind direction OR inverted “Y” free of obstacles.

The flares flash in unison to create an identifiable “constellation” of either infra-red or visible flashing points. The operator may use any one of the 5 flares to control the entire group, changing from visible to infra-red with the push of a button.

Features:

• Coordinated flashing pattern for easy recognition
• Two Distinct Flash Patterns: A simple press of a button changes between a 1-per-second flash pattern or constant-glow (steady burn). Or press the other button to choose infrared; visible; or both.
• Ballasted Range Extender provides range of 100+ ft to meet landing zone specifications
• 36+ hours of continuous flash
• Standard configuration includes 16 High-Power Visible Green LEDs, 4 High-Power Infrared LEDs (880nm)
• Easy to deploy, low cost, and enhanced safety.
• +35,000 lbs (15,800 kg) crush strength
• Battery status check with push of a button
• 6 hour recharge time from a completely dead battery
• Powered by Lithium-Ion Rechargeable Battery
• IP68 water and dust rating
• Worker safety is not by accident. Sequential guidance is one tool in a system designed to bring your crew home safely each night.

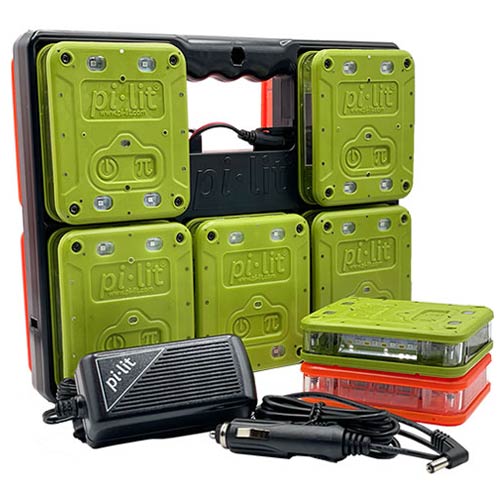

Kit includes: Carrying/Charging case, 5 Radio-Connected LZ Flares, 5 Ballasted Range Extender Bases, DC 12/24V Vehicle Plug, 110/240V Wall plug
