Smart-Cal 360 Calibration Station

There are no reviews yet. | Write a review
Item #: 936-00000
MFG: Sensit
Min Order: 0
Order Qty: Must order in multiples of 1
Update price
View additional buying options
Product Details

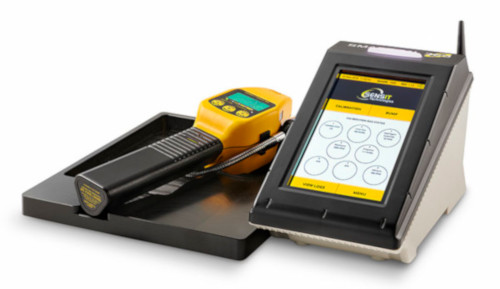

Smart-Cal 360 Calibration Station

In addition to logging calibration data, time, date, sensor and pump performance, SMART-CAL 360 pushes firmware updates to selected SENSIT instruments without the need to return the instrument to the factory. SMART-CAL 360 tracks sensor life, and gives an early warning when it’s time to replace calibration bottles.

Improved data management software provides automatic data transfer for compliance reports and notifications of overdue or failed calibrations. Logs can be viewed on the large touchscreen display or reports via emailed spreadsheet or pdf. SMART-CAL 360 communicates over LAN and Wi-Fi, so that the station can be positioned where it is most convenient and accessible, and it works with any SMART-CAL compatible instrument.

Standard Features:

  • 7” Touchscreen
  • IR/NFC/Bluetooth Communications
  • Automatic Upload of Records
  • Calibration/Bump Memory Storage
  • SD Card:
    • Database Backup
    • Configuration Backup
    • Station Firmware Updates
  • Gas Bottle Supply Monitoring
  • Configurable Valves
  • Wireless Firmware Updates Pushed To Devices
  • Wi-Fi/LAN Equipped (Network Stations)
  • USB (Desktop Stations
  • Filtered/Replaceable Gas Port Connections
  • LED Status Indicator (Busy, Ready, Pass, Fail, Check Gas Supply)
  • Automatic Date Adjustment

Smart-Cal 360 Calibration Station

Product Specifications

Size: L= 10.6” x W= 5.4” x H= 6.1” (27cm x 13.7cm x 15.5cm)
Weight: 4.1lbs (1.86kg)
Operational Temp: 32°F to 122°F (0°C to 50°C)
Max. Inlet Pressure: 30psi (2 bar)
Power: Transformer Input 110 to 240 VAC/Output 15VDC

Software Requirements

  • 1 GB Hard Drive Space
  • Windows 7, 8, 8.1, 10
  • Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Microsoft® Outlook or Direct Email

Compatible Instruments:

Sensit CO Sensit Gold G2 Sensit IRED
Sensit Gold Sensit HCN Sensit PMD
Sensit Gold 100 Sensit HXG-3 TRAK-IT IIIa
Sensit Gold CGI Sensit HXG-3P Sensit Gold EX/CO+ 1200

Smart-Cal 360 Calibration Station

Desktop ship kit (990-00000-49) includes:

  • Instruction Manual
  • Power Adapter
  • Instrument Cradle
  • USB Cable
  • Hose Kit

Network ship kit (990-00000-60) includes:

  • Instruction Manual
  • Power Adapter
  • Instrument Cradle
  • Ethernet Cable
  • Wifi Antenna
  • Hose Kit

Smart-Cal 360 Calibration Station
