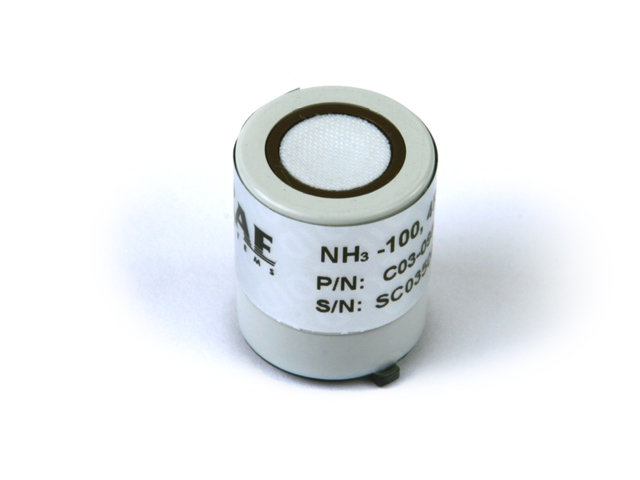

Ammonia (NH3) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Ammonia (NH3) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Ammonia (NH3) sensor is a replacement sensor for any of the MultiRAE family of gas detection meters and the ToxiRAE Pro.

• Sensor Type: Electrochemical
• Range: 0 to 100 ppm
• Resolution: 1 ppm
• Bias/Equilibration: No bias/10 min. after installation
• Temperature Range: -4° F to 104° F (-20° C to 40° C)
• Pressure Range: Atmospheric ±10%
• Operating Humidity: 15 to 90% RH non-condensing
• Drift: < 2% signal loss/month
• Storage Life: 1 year in sealed container
• Storage Temperature: 32° F to 68° F (0° C to 20° C)
• Operating Life: 1 year in air
• Warranty: 1 year from date of shipment
• Calibration Gas: 50 ppm NH3, balance N2
• Zero Gas: 99.9% N2
• Supported Instruments: MultiRAE Lite, MultiRAE, MultiRAE Pro, and ToxiRAE Pro
