Chlorine (Cl2) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

Chlorine (Cl2) Sensor for MultiRAE, AreaRAE & ToxiRAE Pro

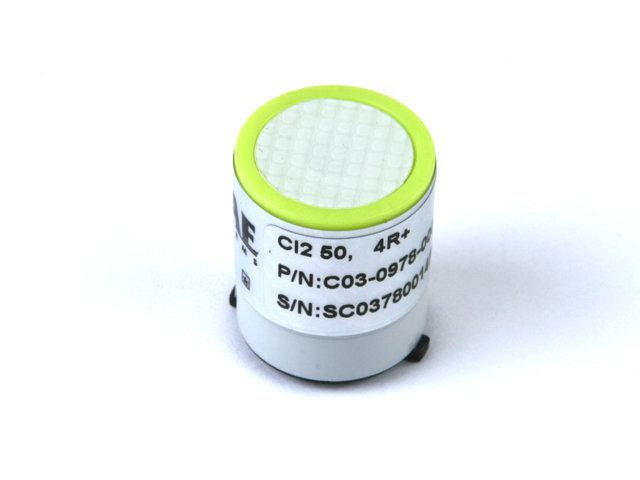

The C03-0978-000 Chlorine sensor is a replacement sensor for any of the MultiRAE family of gas detection meters and the ToxiRAE Pro that has a range of 0 - 50 ppm Cl2 and is compatible with the MultiRAE and the ToxiRAE Pro.

• Sensor Type: Electrochemical
• Range: 0 to 50 ppm
• Resolution: 0.1 ppm
• Bias/Equilibration: No bias/10 min. after installation
• Temperature Range: -4? F to 122? F (-20? C to 50? C)
• Temperature Effect: No effect on sensitivity or zero
• Pressure Range: Atmospheric ?10%
• Operating Humidity: 5 to 95% RH non-condensing
• Drift: < 10% signal / 6 months
• Storage Life: 6 months in sealed container
• Storage Temperature: 32? F to 68? F (0? C to 20? C)
• Operating Life: 2 years in air
• Warranty: 1 year from date of shipment
• Calibration Gas: 10 ppm Cl2, balance N2
• Supported Instruments: MultiRAE Lite, MultiRAE, MultiRAE Pro, and ToxiRAE Pro
