X-am 8000 Multi-Gas Detector

There are no reviews yet. | Write a review
Item #: 8325800/6810881/6812950/6813280/6813475
MFG: Draeger
Min Order: 0
Order Qty: Must order in multiples of 1
$4,030.89
Sensor 1:
Sensor 2:
Sensor 3:
Sensor 4:
Sensor 5:
Update price
View additional buying options

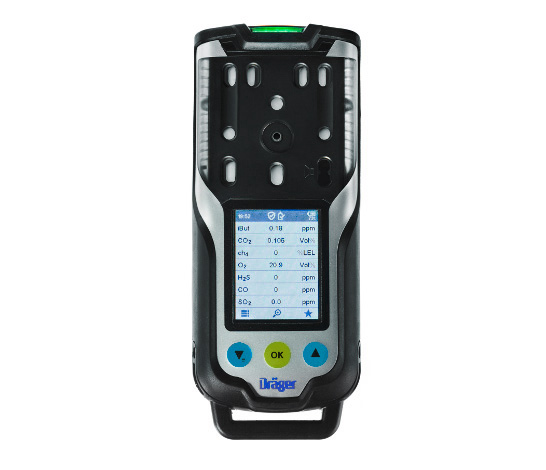

X-am 8000 Multi-Gas Detector

The Draeger X-am 8000 is a 1 to 7 gas detector that measures for toxic and flammable gases, Oxygen, and volatile organic compounds. With the ability to operate in diffusion mode or with the internal pump, the X-am 8000 capable for use in a broad range of applications like confined space, industrial hygiene, or hazmat response.

Features:

  • Five sensor slots to measure up to seven gases
  • Three-button, one-hand operation
  • Rechargeable Li-Ion battery with induction charging
  • Internal pump that is activated when the pump adapter is engaged
  • Pump draws sample from up to 45 m (147 ft.)

Includes:

  • X-am 8000 with battery
  • Shoulder strap
  • Internal pump
  • Pump adaptor
  • Inductive charger and power supply

Additional configurations available. Contact us for details.

  • Dimensions (H x W x D): 179 x 77 x 42 mm
  • Approx Weight: 495 g (550 g with pump), depending on sensor configuration, without strap
  • Housing: Durable two-component housing
  • Display: High-contrast colour display
  • Temperature: -20° C to 50° C
  • Pressure: 700 to 1,300 hPa
  • Relative humidity: 10 to 90% (short-term up to 95%) r.h.
  • Alarms:
    • Visual: 3 LED 'red' (gas alarms), 3 LED 'yellow' (device alarms)
    • Acoustic Multi-tone, typically 100 dB(A) at 30 cm
    • Vibration
  • Ingress protection: IP 67
  • Energy supply: Lithium-ion battery, rechargeable, inductive charging
  • Operating times (Diffusion):
    • With CatEx and 3 EC sensors Typically 24 hours
    • With IR and 3 EC sensors Typically 22 hours
    • With 3 EC sensors Typically 120 hours
    • With CatEx, PID and 3 EC sensors Typically 17 hours
    • With IR, PID and 3 EC sensors Typically 16 hours
    • With CatEx-, IR- and 3 EC sensors Typically 14 hours
    • PID only Typically 42 hours
  • Charging times: Typically 4 hours after use during a shift of max. 10 hours
  • Start-up times: Typically <60 seconds for standard sensors
  • Data storage: 12 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 7 channels: approx. 210 hours
  • Pump operation: Max. hose length 45 m (147 ft.)
  • Approvals:
    • I M1, II 1G
    • Ex da ia I Ma, Ex da ia IIC T4 Ga
    • ATEX / IECEx
    • Metrological approval pending
    • EAC PO Ex da ia I Ma X
    • Ex da ia IIC T4 Ga X
    • Class I, Zone 0, AEx da ia IIC T4 Ga
    • Class II, Div 1, Gr. E, F, G T4
    • cCSAus (Please contact Dräger regarding availability.)
    • C22.2 No. 152, ANSI-ISA 12.13.01:2000
    • CE labelling
  • Manufacturer´s warranty:
    • 3 years for the device
    • 1 year for the power supply
    • Sensor warranty varies from 1 to 5 years
