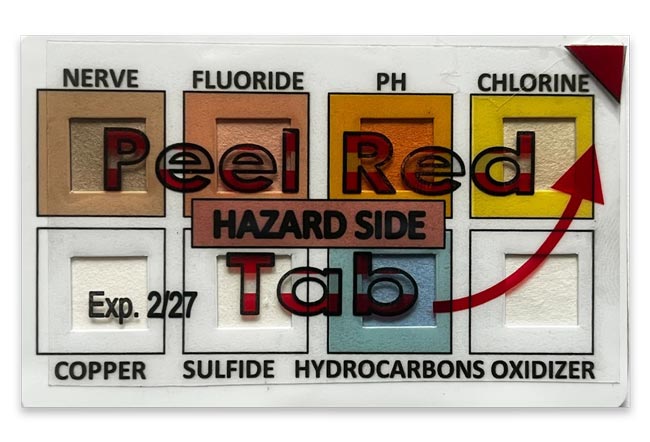

ZMac Hazmat Chemical Test Paper Card
The ZMac Card combines inexpensive detection methodology (chemical test papers) with useful information needed to form a risk based decision response or action plan.
The “viewable” chemical test paper window allows the user to see a color change that is framed with useful hazard information. Select information from the Emergency Response Guidebook and NIOSH Pocket Guide to Chemical Hazards has been added to each specific chemical section.
- Appropriately sized to fit onto an Emergency Response Guidebook (ERG)
- ZMac Card uses a customizable set of 8 reagent papers to arm specific industries and professions for the hazards they may face – contact In Our Gear LLC for a complete list
- Color coded sides of the ZMac Card (RED = HAZARD SIDE ,WHITE = USER SIDE) make it easy to use to detect hazards in different situations (drips verses puddles)
- Pertinent information is provided for each chemical or class of chemical
- Expiration date visible on card
- One time use, once clear protective cover has been removed
- Easy to use thumb tab allows card to be accessed and stored easily
- Shelf Life: 2 Years
ZMac Hazmat Chemical Test Paper Card
| Detection methodology |
Chemical test reagent paper |
| Prepackaged paper kit |
Chlorine, pH, Fluoride, Nerve, Oxidizer, Hydrocarbon, Sulfide, Copper based pesticides |
| Storage before use |
Room temperature |
| Material |
5 mm laminate |
| Sensitivity |
Test paper specific |
| Size |
5” x 7” |
Chemical Test Paper Specifications
| Chemical Detection Name on Card |
Detects |
Sensitivity (color change) |
Cross Sensitivities |
| Fluoride |
Free fluoride ions and gaseous Hydrogen fluoride |
20 ppm |
Bromates, Chlorates and Sulphates |
| Hydrocarbons |
Petroleum ether, Gasoline, Fuel Oil and Lubricating oil |
Petroleum ether – 250 ppm, Gasoline – 10ppm, Fuel Oil = 5 ppm, Lubricating oil – 1 ppm |
None noted |
| pH |
% of hydrogen and hydroxide ions (Acids and Base) |
Scale printed on card |
Color of liquid may impact the reading |
| Chlorine |
Free chlorine |
1 ppm |
Bromine, Iodine, Nitrous acid |
| Nerve |
Liquid G: Nerve, V:Nerve, H: Blister |
.02 ml of neat CWA’s |
None noted |
| Copper |
Copper based pesticides |
3-5 ppm |
None noted |
| Sulfide |
Hydrogen Sulphide and Sulphide ions |
5 ppm |
None noted |
| Oxidizer |
Nitrite |
1 ppm |
Chlorine |
ZMac Hazmat Chemical Test Paper Card
ZMac Hazmat Chemical Test Paper Card
There are no reviews yet.
