SkyGrip Systems for Steel Applications
The Miller SkyGrip™ HLL Cable Systems are designed for easy installation on steel or concrete applications. A variety of innovative features have been engineered into these new systems, making them extremely user friendly with enhanced safety considerations.
- Engineered and safety by experts in the industry that understand fall forces and system design
- Compact & lightweight — provides for easier handling, installation and storage
- Above-the-beam adjustment — patent-pending design allows for easy one-person installation and dismantle, increasing safety and productivity
- Continuous pass-through design — 100% tie-off connection with multi-span systems
- Stanchions also serve as single-point anchorages
- Single-span systems (no intermediate stanchions) up to 60-ft.; multiple-span systems up to 300-ft.
- Tension indicator — proper tensioning of system ensures accurate fall clearance requirements
- Interchangeable bases between steel and concrete applications — modular design maximizes investment and increases versatility
- Durable zinc-plated steel construction — corrosion resistant for increased durability and longer service life
- Compact, stainless steel Miller SkyGrip energy absorber engineered to keep system forces consistent during a fall - minimizes fall clearance and maintains low system forces up to 6 workers on systems for steel and up to 5 workers on systems for concrete (max. 2 workers per span)

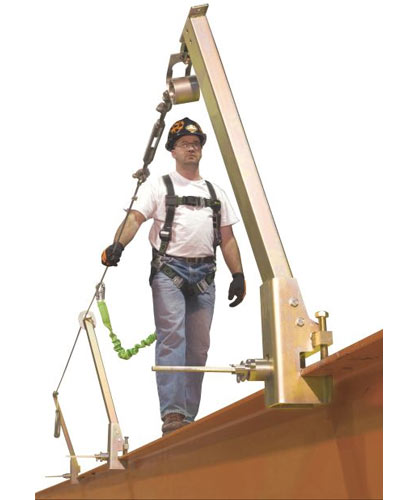

Miller SkyGrip™ Systems for Steel Applications
The Miller SkyGrip Temporary Horizontal Lifeline Systems for steel applications are compact and lightweight for easy installation, while providing greater user mobility for increased productivity.
- Quick grip above-the-beam adjustment — patent-pending design allows for easy one-person installation and dismantle, increasing safety and productivity
- Two-base/crossbar adjustment systems accommodate wide range of steel beam sizes
- Low-profile crossbar — reduces trip hazard
- Call for lead times
View the Brochure | SkyGripFAQ
*This item is not available for expedited shipping. Typically ships within 2 weeks.
SkyGrip Systems for Steel Applications
Systems with Standard Base — Fit beam flanges 4 to 18 inches wide up to 2-1/4 inches thick. Complete system includes stanchions, energy absorbers(s), line tension indicator, turnbuckle, cable and hardware.
| Item #
|
Descr.
|
# of Stanchions
|
Pass-through Brackets*
|
# of energy absorbers
|
Workers per System
|
| SGS18/30FT
|
30ft. system
|
2
|
No
|
1
|
2
|
| SGS18/60FT
|
60ft. system
|
2
|
No
|
1
|
2
|
| SGS18/120FT
|
120ft. system
|
3
|
1
|
2
|
4
|
| SGS18/180FT
|
180ft. system
|
4
|
2
|
2
|
6
|
| SGS18/240FT
|
240ft. system
|
5
|
3
|
2
|
6
|
| SGS18/300FT
|
300ft. system
|
6
|
4
|
2
|
6
|
Systems with Large Base — Fit beam flanges 12 to 36 inches wide and 2-1/4 to 3-3/8 inches thick. Complete system includes stanchions, energy absorber(s), line tension indicator, turnbuckle, cable and hardware.
| Item # |
Descr. |
# of Stanchions |
Pass-through Brackets* |
# of energy absorbers |
Workers per System |
| SGS36/30FT |
30ft. system |
2 |
No |
1 |
2 |
| SGS36/60FT |
60ft. system |
2 |
No |
1 |
2 |
| SGS36/120FT |
120ft. system |
3 |
1 |
2 |
4 |
| SGS36/180FT |
180ft. system |
4 |
2 |
2 |
6 |
| SGS36/240FT |
240ft. system |
5 |
3 |
2 |
6 |
| SGS36/300FT |
300ft. system |
6 |
4 |
2 |
6 |
*for intermediate stanchions
View the Spec Sheet
