Portable Pneumatic Hazmat Decon Shower

There are no reviews yet. | Write a review
Item #: DAT4070S
MFG: FSI
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
Qty:
View additional buying options
Product Details

Portable Pneumatic Hazmat Decon Shower

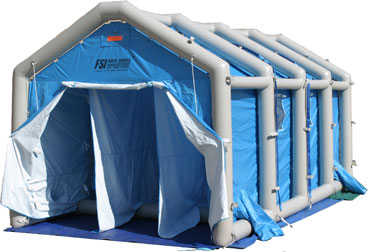

This inflatable pneumatic hazmat decon shower from FSI is a four-line, 3 or 4-station mass casualty decon shower system which handles four parallel lines of casualties at the same time in three or four sequential stations --- (1) undress, (2) detergent shower # 1 - (3) rinse shower # 2 OR handle 2 personnel in separate showers simultaneously in each lane, (4) redress. This unit deploys in under three minutes, processes four non-ambulatory patients on stretchers or up to 8 ambulatory personnel at a time and/or any combination of the above.

Undress and redress stations are dry (plumbing is possible and optional); shower stations may include 3 showerheads and one hanging coiled ½” hose line w/ attached multiple function spray nozzle which thoroughly drenches and decontaminates via a fine water mist. There are a total of 12 multiple function spray nozzle guns and 4 sections of 3 shower heads for a total of 24 shower heads as standard. The unit is configured with a 4’ undress privacy area on entrance, a 15’ long decon shower area divided into 2 separate shower stalls in each line, and a 4’ redress privacy area prior to exiting. Shutoffs and quick disconnects supplied with every group of shower heads and Trigger Gun. As an option -- by configuring the changing areas on both ends as decon showers one can double the capacity as detailed above.

If an optional detergent injector is used then the shower # 1 station can be used for detergent cleansing and the shower # 2 station may be used for rinse.

Wastewater is contained within integral 14.5’ wide X 15’ long ground floor and 6-inch berm erected when system is initially inflated (holds approx. 450 gal. of waste water before pump-out is required - waste pump is recommended).

The DAT4070S offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 - 24" off center. Also, there are separate "dirty" entry and "clean" full sized exit doors, three (3) center divider curtains to separate all four lines, Twelve (12) 1/4 cross divider curtains, two windows on each side, 2 skylights, 2- 3/4" (19mm) GHT threaded inlet hose-other fittings available as specified, reflective air vents at each end, reflective striping on each end to delineate built in decon pool. All canopy walls are velcro'd to the floor air berms for air lock.

This shower system includes:

  • (4) Roll up windows - 2 per side
  • (2) Skylights
  • Roll-up, full zip, dirty entry/clean exit doors
  • (8) 19" diameter air duct inlets/outlets w/ tie closures - 2 each in each of the 4 corners
  • Smell electrical duct
  • (2) High pressure and (2) low pressure inflation/deflation valves
  • Inflation hose w/ safety cord
  • Pressure Relief Valve
  • (12)Metal stakes ground anchor points
  • (4) Tie down ropes
  • Repair kit
  • Manual
  • Shelter sleeve
  • (2) Upper air vents
  • Hammer

Portable Pneumatic Hazmat Decon Shower

DAT4070S
Inflated Measurements: 14.5’ W x 23’ L x 9’ H - 330ft2
Weight: 340 lbs.
Carton Size: 54” L X 43” W X 36” H
Air pressure internally once inflated: 4.3 psi
Total Weight: 1055 g/m2
Thickness: 0.90 mm
Cut strip tensile strength: Warp = 450 lbs/in
Weft = 404 lbs/in
Elongation: Warp = 30%
Weft = 47%
Tongue tear: Warp = 87 lbs
Weft = 100 lbs
Adhesion: Warp = 9.4 lbs/in
Weft = 8.9 lbs/in
Density:30 X 24.5
Certifications: ANSI 113-200X compliant
Frame
Material: - Heavy Duty 1100 Dtex polyester coated w/ plastomer on both sides
- UV/Chemical resistant
- Quadruple overlapped and glued.
Canopy
Material: - Heavy duty 100% nylon twill (3/5) w/ PU white pigment inner coating
- UV/chemical resistant/fire retardant
- UV resistant and water repellent w/ a hydrostatic resistance of 250 psi + -
- Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508
- Fire resistance meets and exceeds CPAI 84 SECTION 5 1995
- US Fed. Test CFR.1610
- Meets NFPA701 Flammability Test method 1 (2004)
- NFPA 702 w/ ‘A’ burn scale rating
- All seams double stitched and coated both sides.
Dimensions: Approx. 23mm X 57/58
Weight: Approx. 1.230 gr/m2
Inner Canopy
Material: - 100% Nylon 210T Antron Water Resistant Polyurethane Coated 57/58"
- Flame Retardant to meet 'NFPA-701 TM-1'
- Anti-fungus/Anti-mildew
- Opaque
Color: White
Floor
Material:PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester)
Weight: 660 gr/mm2
Width: 60 in

Portable Pneumatic Hazmat Decon Shower
