3 Line, 3 or 4 Stage Decon Shower System for Hospitals/ First Responders/ Other

There are no reviews yet. | Write a review
Item #: DAT3060S-SYS
MFG: FSI
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$68,750.00
Qty:
View additional buying options
Product Details

3 Line, 3 or 4 Stage Decon Shower System for Hospitals/ First Responders/ Other

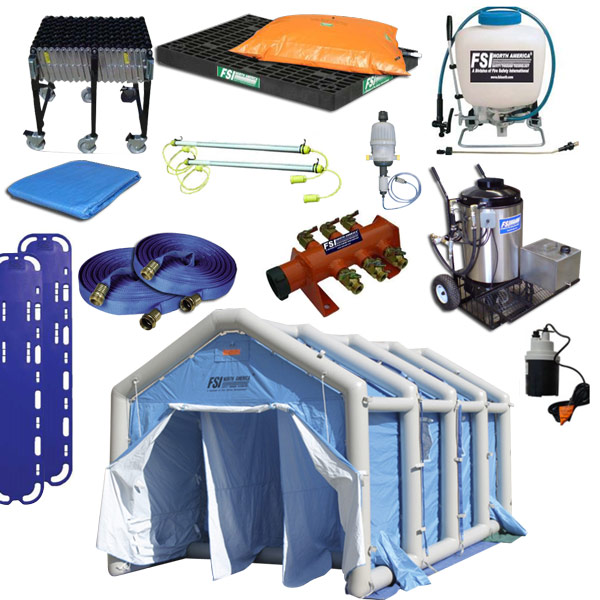

System Includes:

  • DAT3060S shower
  • FSI Heat 200A water heater
  • FSI HEAT 201 detergent injector
  • PTI25-4L
  • F-HSP hand sprayer
  • (2) F-GH hoses
  • F-GH503510 hose system
  • F-RS12 conveyor
  • F-MX1 spine board
  • (3) F-1225-0500-STL stringable lights
  • F-WSP33AA waste pump
  • (20) F-TDMSPC elevation grids
  • F-MMU156 multi manifold
  • F-HD600BT bladder tank
  • F-GS4 tarp

3 Line, 3 or 4 Stage Decon Shower System for Hospitals/ First Responders/ Other

Details of DAT3060S-SYS Components
DAT3060S shower - (2) Roll up windows per side
- (2) Skylights
- Roll-up, full zip, dirty entry/clean exit doors
- (8) 19" air duct inlets/oulets w/ tie closures - 2 each on each end/side
- Small electrical duct
- (2) High/low pressure inflation/deflation valves
- Air inflation hose w/ safety cord
- Pressure Relief Valve
- (10) Metal stakes & ground anchor points
- Repair Kit
- Manual
- Shelter sleeve
- (2) Upper air vents
- Hammer
FSI Heat 200A water heater - wheeled cart like unit
- 440,000 btu
- 14 gpm/56 LPM total flow rate
- multi fuel capable
- portable water heater
- Hot/Cold water mix valve w/ built in anti-scald mechanism
- (3) GHT water outlet w/ shutoff valves
- in-line analog temperature gauge
- 5 gallon/20 L container for fuel
- Max temperature: 210° F/99° C
- Power requirement: 115V, 15 amps
- water input connection: Single GHT
- Weight: 330LBS
- Fuel: Diesel#1 or 2, JP4, JP8, Home Heating Oil, Kerosene
- Major components - Burner and Controls UL listed to comply with ANSI/UL296 and certified to the CAN/CSA B140.0. Accepted by N.Y.C. M.E.A.
FSI HEAT 201 detergent injector - Dema Style Detergent Inducer w. filter for use with FSI Heat 200/200A
- 0.2 - 2% induction
- flow rate range is .09 to 11 gallons per minute
PTI25-4L - Petrotech cleaning and degreasing spill control product
- four pack of quarts
F-HSP hand sprayer - 4 gallon poly tank
- decontamination hand sprayer with 48" hose
- 18" wand w/ brass adjustable cone nozzle
- 40-90 psi operating pressure
(2) F-GH hoses - 3/4” Soft sided Garden Hose X 50’ per length
- 300 psi LayFlat hose
- coupled 3/4" GHT
F-GH503510 hose system - 3/4" Soft Sided Hose X one L of 50', one L of 35' and one L of 10' per length coupled 3/4" GHT Couplings
- 300 psi LayFlat hose
(2) F-RS12 conveyors - 18" W
- Height is adjustable from 28" - 44"
- Length is adjustable from 3' - 12'
- 4 leg sets per unit
- 7 wheels per axle
- capacity per lineal foot is 226 pound
- can support approx. 1,300 pounds on a backboard w/ retractable backboard end stops
(2) F-MX1 spine boards - highly resistance to blood borne pathogen absorption w/ void free construction
- 600 lb. capacity
- ideal for mass casualty situations
- created w/ patient comfort and first responder ease of use in mind
- each weighs 16 lbs
- each measures 72” x 16” x 1 3/4”
(4) F-1225-0500-STL stringable lights - 25 Watt flourescent stringable lighting w/o switch
- 2,200 lumens
- 20,000 hr. rated
- polycarbonate small diameter outer tube w/ domed end caps/water tight clamps
- 5' power cord on one end & 1' lead wire with outlet on the other end
- 120 VAC ballast inline
- all NEMA rated, vinyl reflector directs light where needed
F-WSP33AA waste pump - 1/4 HP electric submersible waste pump
- auto start
- plastic case
- thermal auto reset 30 gpm
- starts when waste water reaches approx 1/4" level
- automatically stops once below the 1/4" level
(24) F-TDMSPC elevation grids - 3’ X 2’ X 2 7/8" H
F-MMU156 multi manifold - 1.5" female swivel NH inlet X (6) 3/4" GHT male outlets w/shutoffs
- Fabricated of schedule 40 2 1/2" pipe w/ends of .19" 5062
-Aluminum ball valves of brass
F-HD600BT bladder tank - 600 gallon
- HD 30 Mil XR-5 materials
- approx. 10.5' x 7' W
- fill/drain fitting adapter w/ 1-1/2-inch Iron Pipe Threads
F-GS4 tarp - 14' X 24' ground tarp
- 13 oz HD vinyl
- multiple colors
- weighs approx. 30 lbs.
