1 Line Mass Casualty Decontamination Shower System

There are no reviews yet. | Write a review
Item #: DAT2525S-SYS
MFG: FSI
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
$35,000.00
Qty:
View additional buying options
Product Details

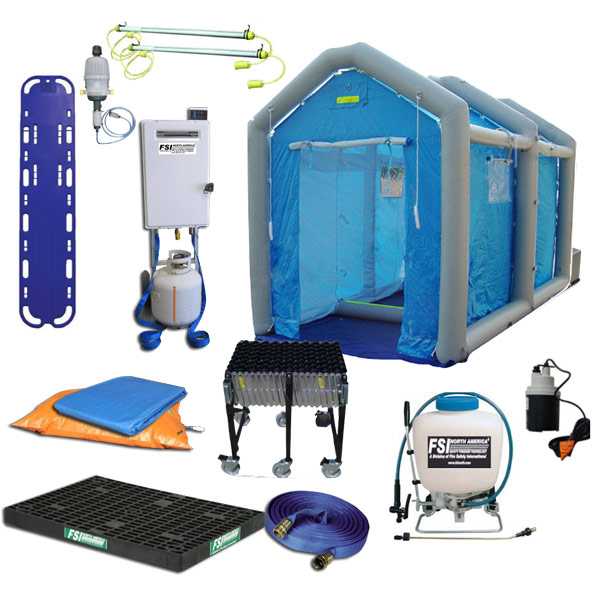

1 Line Mass Casualty Decontamination Shower System

System Includes:

  • DAT2525S shower
  • F-Z100WH propane water heater
  • FSI HEAT 201 detergent injector
  • F-HSP hand sprayer
  • F-GH hose
  • F-GH503510 hose system
  • F-RS conveyor
  • F-MX1 spine board
  • F-1225-0500-STL stringable lights
  • F-WSP33AA waste pump
  • (4) F-TDMSPC elevation grids
  • F-HD300BT bladder tank
  • F-GS3 tarp

1 Line Mass Casualty Decontamination Shower System

Details of DAT2525S-SYS Components
DAT2525S shower - Full closure slip in and out dirty entry/clean exit doors on each end
- (2) 1/2 Cross divider curtains
- (2) Roll up windows - one on each side
- (2) Skylights
- Air inflation/deflation valve
- Air inflation hose w/ safety cord
- High pressure valve
-High pressure relief valve
- (6) Metal stakes & Ground anchor points
- Tie down ropes
- (4) D-Rings
- Repair Kit
- Manual
- Shelter sleeve
- (2) Upper air vents
- (8) 19” dia. HVAC/dirty clothes ducts w/ tie closures – 2 each on each end/side
- Small electrical duct
- Hammer
- Electric inflator/deflator
- High pressure SCBA fitting
F-Z100WH propane water heater - portable wheeled
- 105,000 + BTU propane powered unit
- 65 lbs./30 Kg w/ cart. 14" L X 13" W X 40" H
- Approx. 5.0 gpm/300 gallons per hour of heated water
FSI HEAT 201 detergent injector - Dema Style Detergent Inducer w. filter for use with FSI Heat 200/200A
- 0.2 - 2% induction
- flow rate range is .09 to 11 gallons per minute
F-HSP hand sprayer - 4 gallon poly tank
- decontamination hand sprayer with 48" hose
- 18" wand w/ brass adjustable cone nozzle
- 40-90 psi operating pressure
F-GH hose - ¾” Soft sided Garden Hose X 50’ per length
- 300 psi layflat hose
 coupled 3/4" GHT
F-GH503510 hose system - 3/4" Soft Sided Hose X one L of 50'
- one L of 35' and one L of 10' per length coupled 3/4" GHT Couplings
- 300 psi LayFlat hose
F-RS conveyor - 18" W, Height is adjustable from 28" - 44"
- Length is adjustable from ' - 9'
- 3 leg sets per unit
- 7 wheels per axle
- capacity per lineal foot is 226 pound
- can support approx. 1,300 pounds on a backboard
- w/ retractable backboard end stops
F-MX1 spine boards - highly resistance to blood borne pathogen absorption w/ void free construction
- 600 lb. capacity
- ideal for mass casualty situations
- created w/ patient comfort and first responder ease of use in mind
- each Spine Board/Transfer Board weighs 16 lbs and measures 72” x 16” x 1 ¾” and comes with pins for fast and easy strapping applications
F-1225-0500-STL stringable lights - 2,200 lumens
- 20,000 hr. rated
- polycarbonate small diameter outer tube w/ domed end caps/water tight clamps
- 5' power cord on one end & 1' lead wire with outlet on the other end
- 120 VAC ballast inline
- all NEMA rated
- vinyl reflector directs light where needed
F-WSP33AA waste pump - 1/4 HP electric submersible waste pump
- auto start
- plastic case
- thermal auto reset 30 gpm
- starts when waste water reaches approx 1/4" level
- automatically stops once below the 1/4" level
(4) F-TDMSPC elevation grids - 3’ X 2’ X 2 7/8" H
F-HD300BT bladder tank - 300 gallon
- HD 30 Mil XR-5 materials
- approx. 6' x 7' W
- fill/drain fitting adapter w/ 1-1/2-inch Iron Pipe Threads
F-GS3 tarp - 12' X 10' ground tarp
- 13 oz HD vinyl
- multiple colors
- weighs approx. 22 lbs.
