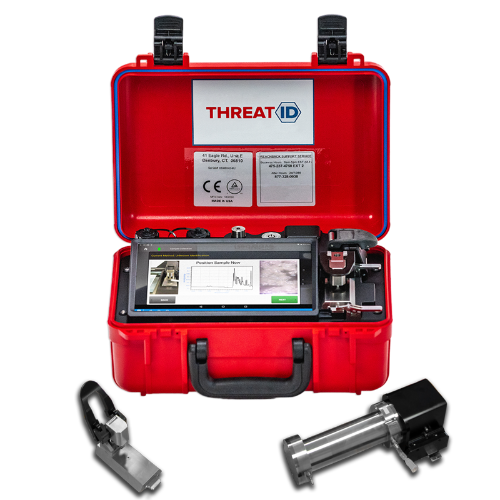

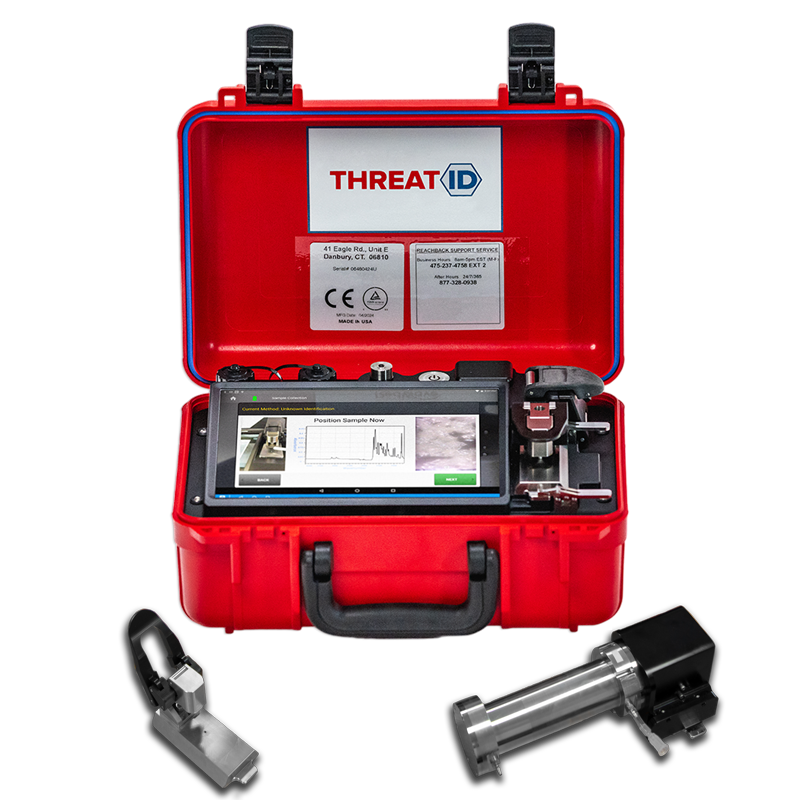

ThreatID GLS FTIR Spectrometer
The ThreatID: Portable FTIR Multi-threat Identification.
Portable FTIR device that provides identification of solids, powders, liquids, gases, and mixtures. Identify tens of thousands of emerging chemical threats in the field.
Rapidly detect and identify more than 28,600 unknown gas/vapor, powder/liquid chemical threats, and mixtures with a single, portable FTIR tool. When dealing with complex mixture samples, utilize the ThreatAssist database for further analysis on chemical compounds.
ThreatID requires no calibration or configuration when changing between gas/vapor and liquid/powder sampling modules. The rugged diamond sample interfaces provide reliable measurement in harsh environments while the interactive, on-screen prompts guide users through the sampling process, step by step.
Unit must be ordered with at least one module to operate. Choose from a 4 Meter Gas Cell Module, a Liquids/Solids module, or both modules.
Applications:
- Hazardous Materials & CBRN: Detect and identify the most urgent dangers posed by Toxic Industrial Chemicals and Materials (TICs/TIMs), Volatile Organic Compounds (VOCs), fire gases, corrosives, and other substances.
- Explosives & EOD: Identify homemade, military grade, and commercial explosive threats in the field. Identify precursors in clandestine labs
- Narcotics: Identify a wide range of illegal drug substances including synthetic opioids, cathinones, cannabinoids, and cutting agents
Identify 23,000+ solids/liquids,
5,600+ gas/vapors:
- Chemical warfare agents (CWAs)
- Hazardous Chemicals
- Explosives
- Narcotics
Features:
- Transition from gas/vapor sampling to powder and
liquids in seconds, no tools required
- No alignment, calibration, or configuration required
- Simple operation
- Designed for use in harsh environments
- No downtime from oversaturation
- 24/7/365 Reachback
- Built-in wireless communication
- Ability to create your own custom search libraries
ThreatID Gas Module
Gases present the greatest danger, but until now there have been few easy-to-use techniques to identify them with chemical analyzers. Only about 1mL of headspace from volatile liquids is needed to collect a good identification sample. When there is a gas leak that doesn’t have a liquid source or isn’t visible, one would need to collect up to 500mL of sample.
Gas Module Features:
- Capable of identifying more than 5,000 gases and vapors at concentrations as low as 25 ppm
- Allows PID correction for accurate concentration
- Headspace and confined space measurement
ThreatID Powders/Liquids Module
The powders and liquids module of the ThreatID allows for an incredibly easy method for analyzing a wide array of samples. The sensor is a rugged diamond plate; impervious to attack by chemicals. The sensor’s strength allows the user to crush solids for analysis using the integrated press. Liquids are even easier and do not require any pressure. Simply place the liquid on the sensor. The sensor is also very resistant to chemical attacks and can run samples of any pH without degradation of the sensor.
Solids/Liquids Module
Features
:
- C
apable of identifying more than 23,000 solids and liquids
- Indestructible Diamond ATR sample Interface
- Identifies components of complex mixtures and warns the user of dangerous samples.
ThreatID GLS FTIR Spectrometer
ThreadID GLS Specs: Operability and Capability
|
|
Operable in PPE and Level A Gear
|
Responsive to nitrile, tyvex, butyl gloves - with finger, gloved finger or stylus |
|
Integrated Computer
|
Quad-core 64-bit CPU, 4GB RAM, 64GB SSD |
|
Technology
|
FTIR (Fourier Transform Infrared Spectroscopy) |
|
Sample Type
|
Powders, Liquids, Gases Interchangeable
|
|
Solids Measurement
|
Diamond ATR (Attenuated Total Reflectance)
|
|
Gas Measurement
|
4 meter, multi-pass gas cell, 160ml volume
|
|
Size
|
14” × 11” × 6”
|
|
Weight
|
15 lbs
|
|
Operating System
|
Android
|
|
Display
|
10” HDMI, Touchscreen
|
|
Connections
|
USB 2.0
WiFi (802.11 G)
Bluetooth
Ethernet
|
|
Camera
|
Integrated sample surface camera
|
|
Power Connector
|
Rugged, waterproof, IP68
|
|
Alarms
|
Protein, Explosive, CWA, Water, Mixture, Low Signal
|
|
Libraries
|
23,000 powder and liquid
5,600 gas and vapor
TICs, Narcotics, CWA, Explosives, Consumer Products, Chemicals, Pharmaceuticals
|
|
Search Technique
|
Primary (Correlation)
Automated Mixture Search
Functional Groups
|
|
Database
|
ThreatAssist; integrated chemical information database
|
|
Decon
|
Spray or wipe-down with bleach or detergent
|
|
Reachback
|
24/7/365 Support
Automated Reachback Email
On-line support and troubleshooting
|
ThreadID GLS Specs
|
Solid and Liquids Diamond ATR
|
Analyses: Liquids and Solids ID |
|
1 reflection diamond ATR with lever-actuated pressure device |
|
Innovative Sure-ContactTM pressure device for solids |
Gas and Vapor Cell
|
Analyses: Volatile Organic Compounds |
|
4 meter gas cell in a 6 inch body |
|
316 stainless steel body for corrosion resistance |
|
Volume: 160 ml |
ThreatID GLS FTIR Spectrometer
The ThreatID includes 1-year of 24/7/365 Reachback and 1 year warranty on all part and labor. Subsequent years are optional and are available with four different extended warranty options:
ThreatID Warranty & Support with Loaner: Extension of Warranty and Support for ThreatID. Includes software and library updates, 24/7 technical support and product warranty. Includes loaner unit based on availability for covered Warranty and Support repairs.
ThreatID Warranty & Support: Extension of Warranty and Support for ThreatID. Includes software and library updates, 24/7 technical support and product warranty. - No loaner included.
ThreatID Support Only: Extension of Support for ThreatID. Includes software, library updates, and 24/7 technical support. Product repairs not included. - No loaner included. - Customer pays for out-of-warranty repairs.
ThreatID Warranty Only: Extension of Warranty for ThreatID. Includes time and materials for product repairs - No loaner included. - No access to reachback.
ThreatID GLS FTIR Spectrometer
ThreatID GLS FTIR Spectrometer
