| Size |
4.6" H x 2.4" W x 1.2" D (118 x 60 x 30 mm) |
| Weight |
7.76 oz. (220 g) |
| Sensor |
Nondispersive infrared sensor
Range: 0 to 50,000 ppm
Resolution: 100 ppm |
| Battery |
Rechargeable Li-ion battery
- Operating time: > 11 hours (normal operation 25 ̊ C / 77 ̊ F, non-wireless)
- Recharge time: < 4 hours through charging cradle |
| Display |
Graphical LCD display with white LED backlighting (activated when monitor is
in alarm or with a button press) |
| Display Readout |
- Real-time reading of VOC concentrations in parts per million or mg/m 3 ; battery status;
data logging on/off; wireless on/off and reception quality
- STEL, TWA, and peak values |
| Keypad |
2 buttons for operation and programming |
| Sampling |
Diffusion |
| Calibration |
Automatic with AutoRAE 2 Test and Calibration System 2 or manual |
| Alarm Modes |
-Wireless remote alarm notification 1 ; audible (95 dB @ 30 cm), vibration, visible alarm
(flashing bright red LEDs), and on-screen indication of alarm conditions
- Man Down Alarm with pre-alarm and real-time remote wireless notification |
| Datalogging |
- Continuous datalogging 3 with a three-month capacity (at one-minute intervals)
- User-configurable datalogging interval (from 1 to 3,600 seconds) |
| Communication and Data Download |
- Data download and instrument set-up on PC via charging and PC comm. cradle
- Data download via AutoRAE 2 Automatic Test and Calibration System
- Wireless data and status transmission 1 via built-in RF modem (optional) |
| Wireless Network |
Honeywell Safety Suite or Closed-Loop Network with the EchoView Host |
| Wireless Frequency |
ISM license-free bands |
| Wireless Range (Typical) |

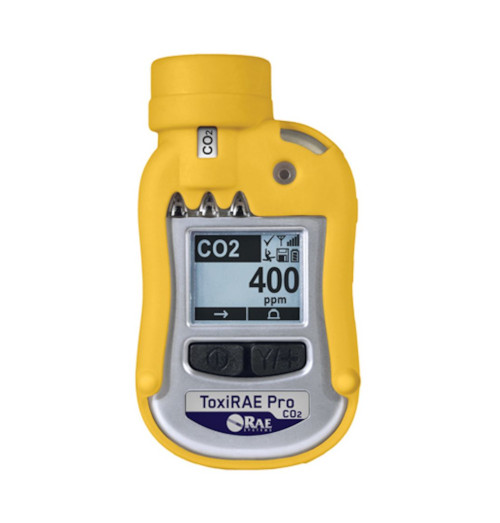

ToxiRAE Pro to Mesh Router or EchoView Host ~ 660 feet (200 meters)
ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modems ~ 330 feet
(100 meters) |
| Operating Temperature |
-4° to 131°F (-20° to 55°C) |
| Humidity |
0% to 95% relative humidity (non-condensing) |
| Dust and Water Resistance |
IP-65 |
| Hazardous Location Approvals |
Unit cannot be used in hazardous area |
| CE Compliance (European Conformity) |
EMC directive: 2004/108/EC. R&TTE directive: 1999/5/EC |
| Warranty |
- Two years on non-consumable components
- One year on all other sensors, battery, and other consumable parts |
