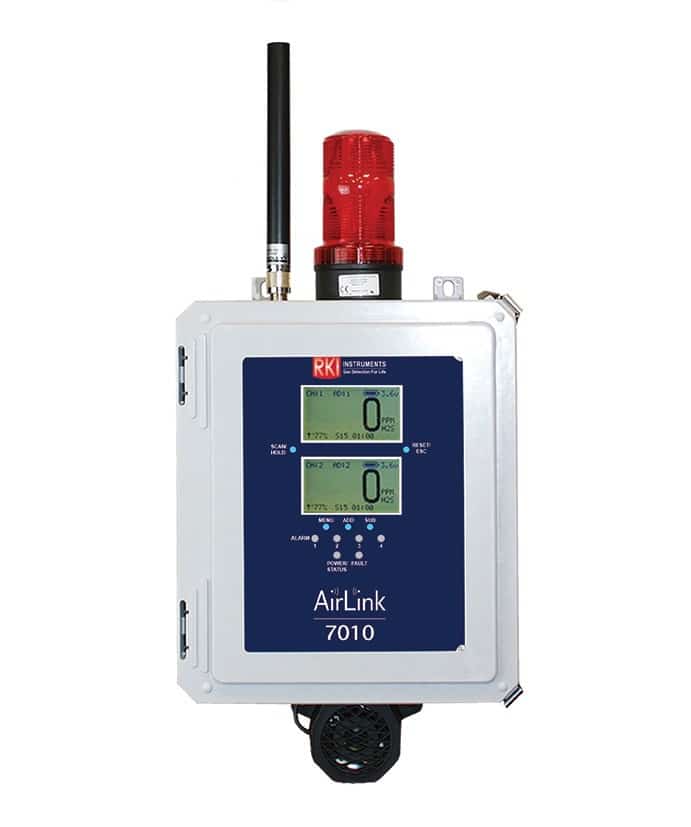

AirLink 7010 Wireless Controller
The RKI Instruments AirLink 7010 Controller is a wireless controller that supports up to 32 wireless sensor transmitter inputs. Four of the channels can be setup for 4-20 mA wired input, making this hybrid controller compatible with both wireless and wired sensors. Durable, flexible and customizable the AirLink 7010 controller has a 5 button interface, 2 LCD display with LED backlighting, and a NEMA-4X weather proof enclosure.
The AirLink 7010 Controller represents the latest leading edge wireless technology in fixed gas detection today.
Features
- 32 Channel hybrid monitor – supports wireless transmitters and up to 4 wired transmitters
- Radio options: 900 MHz radio or 2.4 GHz Standard
- 12 to 35 VDC operating voltage with optional AC power supply
- Operating temperature range of -40ºC to +70ºC
- 5 Push-button interface (ADD, MENU, SUB, SCAN/ HOLD and RESET/ESC)
- Two graphical LCD’s with LED backlights
- Programmable alarms
- 4 configurable alarm set-points:
- 4 front panel ALARM LED indicators (Red)
- 4 dry-contact relays (4 amps maximum per relay)
- Status LEDs for power and fault: multi-color status light; Amber fault LED for indicating system faults
- Output options: Wet contact fault DC fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
- NEMA-4X standard fiberglass enclosure with clear window; optional stainless-steel enclosure with clear window
AirLink 7010 Wireless Controller
| Product Type |
32 Channel gas monitor |
| Operating Voltage |
12V to 35V DC or 120V AC |
| Current Draw |
275 mA maximum at 24 VDC |
| Power Supply |
3.13A (75W), 85/264V AC to 24V DC (optional) |
| Antenna Connection |
External N-female radio frequency (RF) connector |
| Customizable Settings |
Option to disable alarm relays |
| Protection |
Power electromagnetic interference (EMI) filter
4-20 mA surge suppression
RS-485 surge suppression |
| Display Screen |
2 graphical LCD screens with 128×64 resolution transflective (sunlight readable) with LED backlight |
| Interface |
5 Push-buttons (MENU, ADD, SUB, SCAN/HOLD and RESET/ESC) |
| Temperature Range |
-40°C to +70°C |
| Wireless (Digital), Wired (Analog) Input |
Up to 32 Wireless sensor inputs, up to 4 can be 4-20 mA wired analog 4-20 mA inputs |
| Digital Output |
RS-485 Modbus |
| Alarm Indications |
Strobe light and horn mounted on case (optional) |
| Relays |
• 4 Dry-contact relays with 4 amp replaceable fuses
• Individually set full scale, normally open or normally closed, latching or non-latching
and fault terminal |
| Product Compatibility |
Wireless: AirLink 6900 Transmitter, AirLink T3A, AirLink VOC Pro, AirLink Alert, Wired (4-20mA): M2A, S2, T3A, VOC Pro, and Air Alert
|
| Wireless Radio Options |
900 MHz radio
2.4 GHz radio
|
| Networks |
52 Networks (900 MHz radio)
78 Networks (2.4 GHz radio)
255 Addresses per network |
| Enclosure Materials |
NEMA-4X fiberglass enclosure, with clear window (available in stainless steel) |
| Add On Hardware |
Optional strobe and/or horn attached (uses one relay) |
| Product Dimensions |
10 in, L x 8 in. D x 6 in. H (Max. dimensions with attachments) |
| Total Weight |
8.20 lbs |
| Product Mounting |
4 Mounting feet, 6 in. D x 12-1/4 in. T (included), Maximum mounting bolt/screw size of 5/16 in. (8mm) diameter |
| Hardware Warranty |
1-Year limited |
