Touchpoint Plus Wireless Controller for MeshGuard Fixed Systems

There are no reviews yet. | Write a review
Item #: TPPLW
MFG: Honeywell
Let us help you configure your fixed system. Submit quote request below or give us a call at 888-972-3389
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
Qty:
View additional buying options

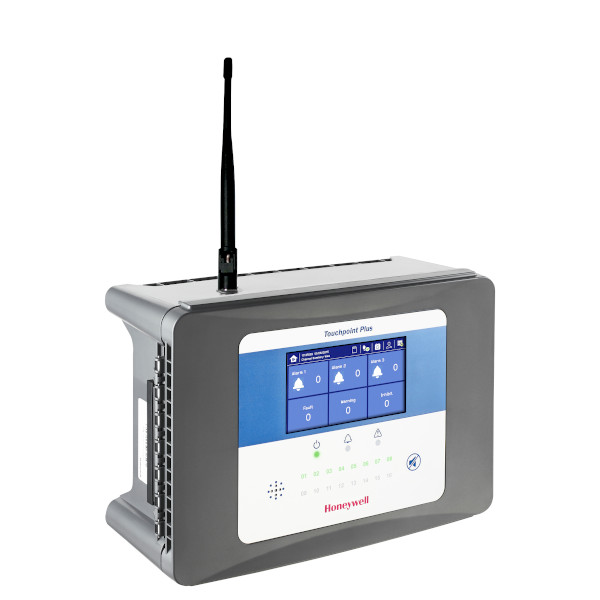

Touchpoint Plus Wireless Controller for MeshGuard Fixed Systems

The Touchpoint Plus is a wireless controller for MeshGuard networks of toxic and flammable gas detectors. A built-in wireless modem allows for easy installation and configurability for up to 64 channels. Eight analog 4-20 mA inputs allow for traditional wired products.

Operated by a large touchscreen with an intuitive interface, the Touchpoint Plus allows users to configure, operate, and maintain their gas detection system simply and efficiently. Real-time data is presented in an easy to navigate menu system. Hstorical data can be downloaded to monitor developing threats.

The Touchpoint Plus can be directly wall mounted, or for an easier 1-man installation there is an optional mounting plate. Made of high-impact polymer plastics, the Touchpoint Plus is dust-proof and water proof and can withstand harsh environments, whether indoors or outdoors.

Features:

  • Built-in wireless modem for use in MeshGuard networks
  • Manages up to 64 channels
  • Up to 14 programmable SPDT relay outputs
  • RS-485 and Ethernet interface
  • 8 analogue 4-20 mA inputs
  • Meteorological data sensors
  • IP 65 rated
  • Backup battery for up to 12 hours of operation depending on configuration
  • Built-in data logging
  • C1D2 certified
GENERAL SPECIFICATION
Capacity Up to 8 channels with base unit, up to 16 channels with expansion unit
Type of inputs 2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive)
Size (wall-mounted version) 426 mm × 300 mm × 156 mm (16.8” x 11.8” x 6.1”)
Housing Material Polycarbonate ABS
Weight Max 8.5 kg (18.7 lb), max 17 kg (37.4 lb) with expansion uni
USER INTERFACE (UI) - CONTROLLER ONLY
Display 7’’ colour LCD touchscreen. Graphic User Interface
Visual indicators 3 LEDs for master indicators. LED for each channel. Green: Normal; Yellow: Fault: Inhibit; Red: Alarm
Audible alarm ≥ 70dB @ 1m
Button Common for reset/mute operation
Language English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Chinese
POWER SUPPLY
Power AC 110/220VAC, 50-60Hz Manual switching
Power DC 18 to 32 VDC (+/-10%) Typical 24VDC
Power consumption Max 105W (including detector and external devices), max 210W with expansion unit
ENVIRONMENTAL
Operating -10°C to +55°C (14°F to +131°F) continuous, up to 95% RH (non-condensing), IP65 and NEMA 4X
Storage Instrument -25°C to +60°C. (-13°F to +140°F), up to 95% RH (non-condensing)
4~20mA input 2 or 3 wire, 2/4/8 channel modules, 10/12/16 with expansion unit
mV input Catalytic type flammable gas detectors (Honeywell models). 2/4/8 channel modules, 10/12/16 with expansion unit
Dual input 2 channel mA + 2 channel mV module or 4 channel mA + 4 channel mV module
Relay output 12 or 24 relay outputs, NO/C/NC changeover, 1.7A@30VDC/250VAC, user configurable - energised/de-energised, latching/non latching, time delay
4~20mA output 4 or 8 isolated repeated mA outputs, 0-22mA, 0-100%FSD = 4-20mA
Common inputs Remote reset, remote inhibit
Common outputs Four powered A/V outputs for alarms and fault, three common alarm outputs
APPROVALS
Electromagnetic Compatibility and Electrical Safety EMC/RFI (EN 50270:2015); LVD (EN 61010-1:2010); CSA-C22.2 No. 61010-1-04; UL 61010-1 (3rd Edition) and 508
Performance EN 50271:2010; EN 60079-29-1:2016; EN 45544-1 /-2 /-3:2015; EN 50104:2010 C22.2 No. 152-M1984, ISA 12.13.01
Safety Integrity IEC 61508:2010 Ed.2 SIL2, EN 50271:2010
Hazardous Location Class I, Division 2, Group A, B, C and D or non-hazardous only
Marine MED (Item No.: 3.54)
OTHERS
Backup battery 22.2V Lithium Ion Battery, 2600mAh capacity (>30 minutes for typical system)
Data logging Configuration, logged events and data
Communication MODBUS TCP, WEB monitoring and MODBUS RTU
Radio model 2.4 GHz IEEE 802.15.4
Radio Frequency 2.400-2.4835 GHz
Frequency Channels Frequency band has 16 available channels
Transmission Range Up to 300 meters line of sight
Receiver Sensitivity Minimum of -95 dBm at 2.4 GHz
Modulation 802.15.4 DSSS O-QPSK
