Touchpoint Plus Controller for Fixed Systems

There are no reviews yet. | Write a review
Item #: TPPLS
MFG: Honeywell
Let us help you configure your fixed system. Submit quote request below or give us a call at 888-972-3389
Min Order: 0
Order Qty: Must order in multiples of 1
Quote Required
Qty:
View additional buying options
Product Details

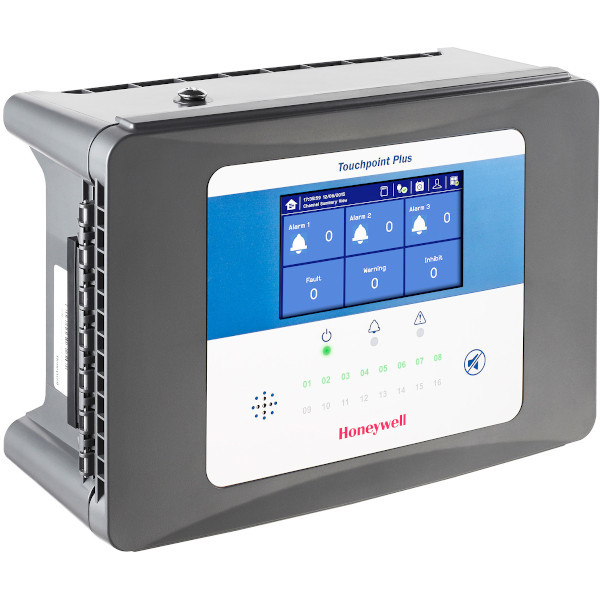

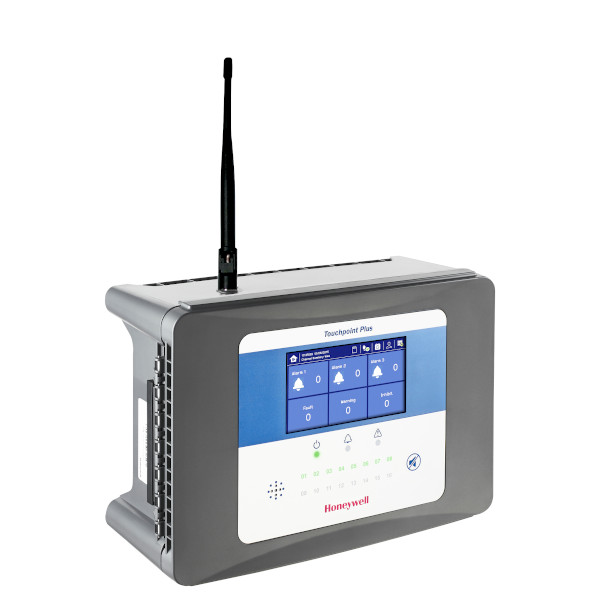

Touchpoint Plus Controller for Fixed Systems

The Touchpoint Plus is an easily configurable, wall mounted control system that supports up to sixteen channels of gas detection. Its modular approach results in a system that can be adapted for a wide range of applications.

Built around its intuitive, ergonomic touchscreen, Touchpoint™ Plus is designed for ease. From here operators can configure, operate and maintain their gas detection system simply and efficiently by simply touching the screen. The multilingual interface simplifies operation, reducing training requirements and costs. Real-time data is presented in an easy to navigate menu system, and historical data can be downloaded to monitor developing threats.

Made of high-impact polymer plastic, Touchpoint Plus is versatile and durable. It is dust-proof, water-proof and has been tested to withstand the toughest environments, whether inside or out. Touchpoint Plus can be directly wall mounted, or for an easier 1-man installation there is an optional mounting plate. Behind the hinged front cover there is plenty of space for wiring and a unique tiered terminal arrangement for easy access. Cable entries are pre-drilled and sealed ready to use, further reducing installation time and cost.

Features:

  • Quick and easy setup and use
  • Intuitive touchscreen user interface
  • Traffic light style status at a glance
  • Ergonomic industrial design
  • Suited to a wide range of industries
  • 8 channels of gas detection (16 with Expansion Unit)
  • Accepts 2 or 3 wire mA or mV inputs
  • Touchscreen LCD
  • Built-in powered alarm outputs
  • Optional Modbus TCP/IP or RTU output

Touchpoint Plus Controller for Fixed Systems

GENERAL SPECIFICATION
Capacity Up to 8 channels with base unit, up to 16 channels with expansion unit
Type of inputs 2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive)
Size (wall-mounted version) 426 mm × 300 mm × 156 mm (16.8” x 11.8” x 6.1”)
Housing Material Polycarbonate ABS
Weight Max 8.5 kg (18.7 lb), max 17 kg (37.4 lb) with expansion uni
USER INTERFACE (UI) - CONTROLLER ONLY
Display 7’’ colour LCD touchscreen. Graphic User Interface
Visual indicators 3 LEDs for master indicators. LED for each channel. Green: Normal; Yellow: Fault: Inhibit; Red: Alarm
Audible alarm ≥ 70dB @ 1m
Button Common for reset/mute operation
Language English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Chinese
POWER SUPPLY
Power AC 110/220VAC, 50-60Hz Manual switching
Power DC 18 to 32 VDC (+/-10%) Typical 24VDC
Power consumption Max 105W (including detector and external devices), max 210W with expansion unit
ENVIRONMENTAL
Operating -10°C to +55°C (14°F to +131°F) continuous, up to 95% RH (non-condensing), IP65 and NEMA 4X
Storage Instrument -25°C to +60°C. (-13°F to +140°F), up to 95% RH (non-condensing)
4~20mA input 2 or 3 wire, 2/4/8 channel modules, 10/12/16 with expansion unit
mV input Catalytic type flammable gas detectors (Honeywell models). 2/4/8 channel modules, 10/12/16 with expansion unit
Dual input 2 channel mA + 2 channel mV module or 4 channel mA + 4 channel mV module
Relay output 12 or 24 relay outputs, NO/C/NC changeover, 1.7A@30VDC/250VAC, user configurable - energised/de-energised, latching/non latching, time delay
4~20mA output 4 or 8 isolated repeated mA outputs, 0-22mA, 0-100%FSD = 4-20mA
Common inputs Remote reset, remote inhibit
Common outputs Four powered A/V outputs for alarms and fault, three common alarm outputs
APPROVALS
Electromagnetic Compatibility and Electrical Safety EMC/RFI (EN 50270:2015); LVD (EN 61010-1:2010); CSA-C22.2 No. 61010-1-04; UL 61010-1 (3rd Edition) and 508
Performance EN 50271:2010; EN 60079-29-1:2016; EN 45544-1 /-2 /-3:2015; EN 50104:2010 C22.2 No. 152-M1984, ISA 12.13.01
Safety Integrity IEC 61508:2010 Ed.2 SIL2, EN 50271:2010
Hazardous Location Class I, Division 2, Group A, B, C and D or non-hazardous only
Marine MED (Item No.: 3.54)
OTHERS
Backup battery 22.2V Lithium Ion Battery, 2600mAh capacity (>30 minutes for typical system)
Data logging Configuration, logged events and data
Communication MODBUS TCP, WEB monitoring and MODBUS RTU

Touchpoint Plus Controller for Fixed Systems
